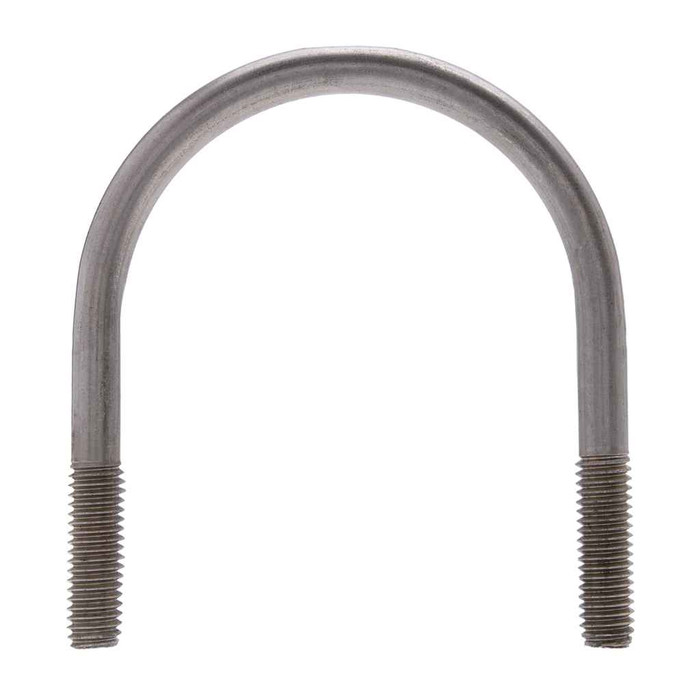

Bolts 3/8-16 x 3-5/8 x 3 U-Blt w/ Pl (Bag 10)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- United States
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.551 - 0.563 in.
- Fastener Height:
- 0.320 - 0.337
- Fastener Length:
- 3/5/08
- Fastener Width:
- 3
- Language Code:
- EN
- Material Standard:
- U-Bolt: ASTM A307 / Nut: Grade A per ASTM A563
- Number Of Nuts:
- 2
- Order Minimum Imperial:
- 10
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Bag
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 16
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- U-Bolt with Plate and Nuts
- Type2:
- U-Bolt with Plate and Nuts
- Series:
- UB
- Product Finish:
- Zinc
- Product Details:
- U-Bolt with Plate and Nuts
- Pipe Size Dimension:
- 2/1/02
- Product Material:
- Steel
Metallics UB023PL – Frequently Asked Questions
1) Does the Metallics UB023PL U-bolt come with the nuts and mounting plate, or do I have to buy those separately?
Everything needed to clamp and mount comes together. The UB023PL is a U-bolt with plate and two nuts, so you get the bolt, the backing plate, and both nuts in the bag. Nothing else is required beyond whatever anchors or fasteners hold the plate to the structure.
2) What thread does the Metallics UB023PL take, and will standard 3/8 inch nuts fit it?
It is a 3/8-16 thread, meaning 16 threads per inch, cut to ANSI/ASME B1.1. That is the standard coarse 3/8 inch series, so any common 3/8-16 hex nut, washer, or channel nut threads onto it. The two nuts supplied are Grade A per ASTM A563.
3) Is the Metallics UB023PL made in the USA and does it qualify for Buy American on a federal job?
Country of origin is the United States, but it is not flagged as Buy American compliant and it is not ARRA compliant. If your project carries a Buy American or ARRA clause, this one will not satisfy the submittal even though it is US made.
4) How many U-bolts are in a bag of Metallics UB023PL, and is there a minimum order?
They ship bagged, 10 per bag, and the order minimum is 10 each. Metallics also builds other sizes and quantities in the UB series on request.
5) Is the UB023PL U-bolt corrosion protected enough for a damp mechanical room or unheated garage?
The bolt and hardware are steel with a zinc finish, which handles interior, damp, and sheltered locations. Zinc plating is not a marine or long-term outdoor coating, so for direct weather exposure or coastal air you want a hot-dip galvanized or stainless U-bolt instead.
6) What dimensional standard do the nuts on the Metallics UB023PL U-bolt follow?
The hardware is dimensioned to ASME B18.2.2, the square and hex nut standard, with head width running 0.551 to 0.563 inch and height 0.320 to 0.337 inch. That means a standard 9/16 inch wrench or socket drives them, which matters if you are torquing a row of these overhead.
