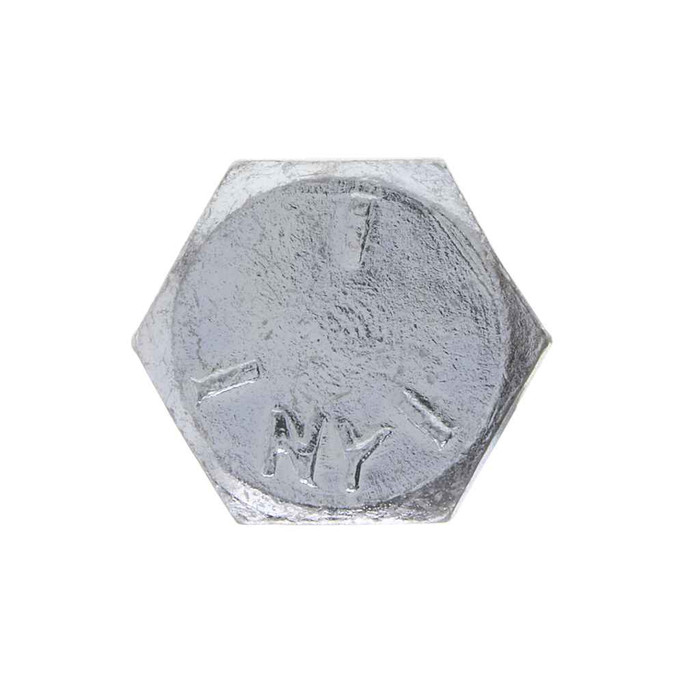

Bolts 3/8-16 X 3/4 G5 Hxbt St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Features
- Used to mount motor to machinery. Also popular in automotive and truck repair
- A cap screw made from medium carbon steel and heat-treated
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 4-Mar
- Fastener Width:
- 0.628 - 0.650
- Grade:
- 5
- Hardness:
- Rockwell C25-34
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 1592 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 120000 psi minimum
- Thread Per Inch:
- 16
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.16
- Yield Strength:
- 92000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC44D – Frequently Asked Questions
1) Are these Metallics grade 5 hex bolts made in the USA and Buy American compliant?
Country of origin is the United States, and the JG5HC44D is flagged compliant for both Buy American and ARRA. For public works, school district, and federal MRO orders that carry a domestic sourcing clause, that is the box you need checked on a fastener line item.
2) Can zinc plated grade 5 bolts be used outdoors or in a damp mechanical room?
The finish is zinc plating over steel, which handles indoor, mechanical room, and sheltered conditions. It is a sacrificial coating, not stainless, so for direct weather exposure, wash-down areas, coastal sites, or anywhere in standing water, specify hot dip galvanized or stainless instead. Also keep zinc plated steel out of direct contact with aluminum in wet locations.
3) How are these 3/8-16 x 3/4 bolts packaged and what is the minimum order?
They ship in a jar of 100 pieces, and 100 count is the order minimum, so a jar is the smallest unit. A full jar weighs about 1592 g. Other sizes and quantities in the G5HC and JG5HC line are available by request if 3/4 in. is not the length you need.
4) What dimensional standard do these Metallics hex cap screws meet?
Threads and head geometry follow ASME B18.2.1-2012, the hex bolt and hex cap screw standard, and the steel falls in the AISI 1008-1026 range. That means head and thread dimensions interchange with any other B18.2.1 3/8-16 hex cap screw, which matters if you are matching existing hardware on a machine frame or writing a submittal.
5) Is the JG5HC44D fully threaded, and do I need to order nuts and washers separately?
At 3/8-16 x 3/4 in. this is a short hex cap screw, and nothing else is included in the jar. Nuts, flat washers, and lock washers are separate line items, so add 3/8-16 nuts and 3/8 washers to the order if you are not threading into a tapped hole. Model to order is JG5HC44D.
