Metallics JBHC30 Bolts 3/8-16 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.69
$3.86

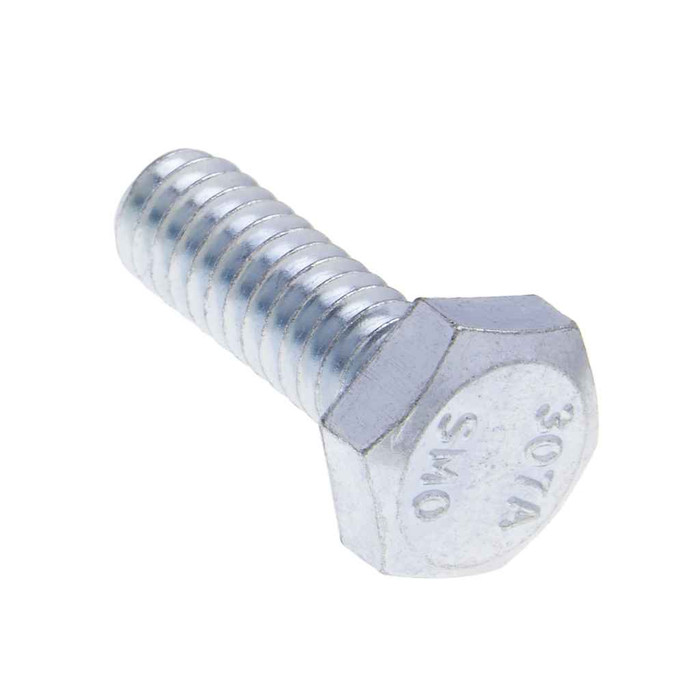

Metallics JBHC30 Bolts 3/8-16 X 5 Hxbt St-zn (Jar 50)

Metallics JBHC30 Bolts 3/8-16 X 5 Hxbt St-zn (Jar 50)

(No reviews yet) Write a Review

Model: JBHC30
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.69
$3.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 3/8-16 X 5 Hxbt St-zn (Jar 50)

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Height:
4-Jan in.
Fastener Head Type:
Hex
Fastener Head Width:
0.544 - 0.562 in.
Fastener Height:
0.226 - 0.268
Fastener Length:
5
Fastener Width:
0.620 - 6.650
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Grade:
2
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_St-Zn_Galv.pdf
Order Minimum Imperial:
50
Order Minimum Uom Imperial:
EA
Outside Diameter:
0.360 - 0.388 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
8.24 lbs
Product Width:
4.5 in
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
ASME B18.2.1-1996
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
BHC and JBHC
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JBHC30 – Frequently Asked Questions

1) What thread does the Metallics JBHC30 hex bolt use, and will a standard 3/8-16 nut fit it?
The JBHC30 is a 3/8 inch diameter hex bolt with 16 threads per inch, made to ASME B18.2.1-1996. Any standard 3/8-16 nut or tapped 3/8-16 hole will thread onto it. Note that 3/8-16 is the UNC coarse pitch for that diameter, so do not pair it with a fine-thread 3/8-24 nut.
2) Are Metallics JBHC30 bolts Buy American or ARRA compliant for a government or public project?
No. The JBHC30 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your specification carries a domestic sourcing requirement, these will not satisfy it and you need a domestically produced fastener instead.
3) Is a zinc plated steel bolt like the JBHC30 OK for outdoor or damp mechanical rooms?
The JBHC30 is steel with a zinc finish. Zinc plating handles indoor and sheltered damp conditions such as mechanical rooms and interior equipment mounting. For direct weather exposure, coastal air, or anywhere washdown chemicals are involved, step up to hot dip galvanized or stainless, because plated zinc is a thin sacrificial coating rather than a marine grade one.
4) What hole size do I need to drill for the Metallics JBHC30 3/8 inch bolt?
Measured shank diameter runs 0.360 to 0.388 inch, so a 3/8 inch bolt needs a clearance hole slightly over that. A 7/16 inch hole gives normal clearance and lets you take up minor layout error; drilling exactly 3/8 inch will bind on the upper end of the diameter tolerance.
5) How many bolts come in a jar of Metallics JBHC30, and can I buy fewer?
The JBHC30 ships as a jar of 50 bolts, and 50 each is the order minimum, so it is sold by the jar rather than loose by the piece. Jar packaging keeps them together on a service truck or in a shop bin. Other sizes and quantities can be arranged by request.
6) Do the JBHC30 bolts include nuts or washers?
No. The jar contains 50 hex bolts only. Plan on ordering matching 3/8-16 hex nuts and 3/8 flat or lock washers separately, in a zinc finish to match the bolt and avoid mixing coatings in the same joint.
7) How much does a jar of 50 Metallics 3/8-16 x 5 hex bolts weigh?
A jar weighs 8.24 lbs, which matters if you are stocking several sizes on a van shelf or loading a parts cart. The packaged jar measures 7.25 inches by 4.5 by 4.5.
