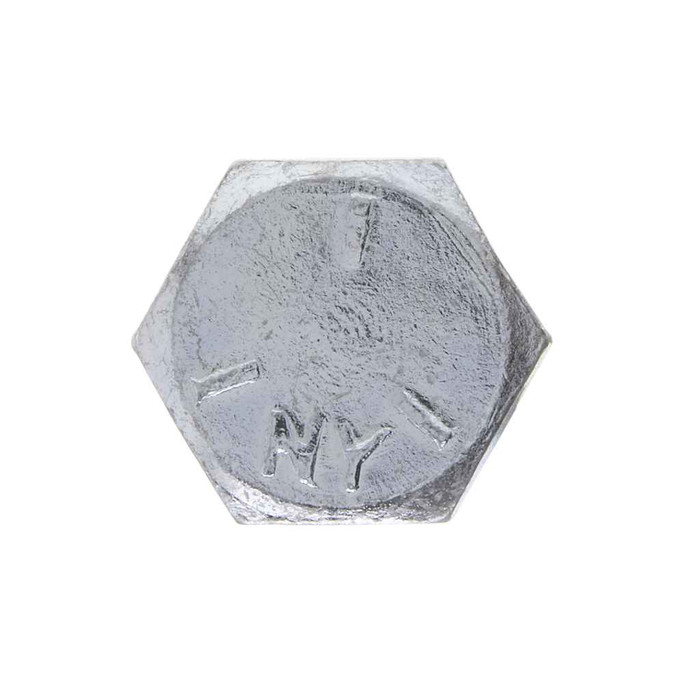

Metallics JG5HCF59 Bolts 3/8-24 x 1-1/4 G5 HXBT St-zn (Jar 100)

Metallics JG5HCF59 Bolts 3/8-24 x 1-1/4 G5 HXBT St-zn (Jar 100)

(No reviews yet) Write a Review

Model: JG5HCF59
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.27
$3.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 3/8-24 x 1-1/4 G5 HXBT St-zn (Jar 100)

  • Features

    • A cap screw made from medium carbon steel and heat-treated
    • Used to mount motor to machinery. Also popular in automotive and truck repair

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
MUL
Division:
Electrical H1
Fastener Head Height:
15/64 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.551 - 0.562 in.
Fastener Height:
0.226 - 0.243
Fastener Length:
1/1/04
Fastener Width:
0.628 - 0.650
Grade:
5
Hardness:
Rockwell C19-30
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.3690 - 0.3750 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2195 g
Product Width:
88.9 MM
Sub Division:
Electrical-E H2
Tensile Strength:
105000 psi minimum
Thread Per Inch:
24
Thread Standard:
ASME B18.2.1-2012
Voltage Rating:
Zinc Chromate
Wrenching Height:
0.16
Yield Strength:
105000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
G5HC and JG5HC
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JG5HCF59 – Frequently Asked Questions

1) Is the Metallics JG5HCF59 bolt a coarse or fine thread?
Fine thread. The JG5HCF59 is a 3/8-24 hex bolt, 24 threads per inch, so it will not thread into a 3/8-16 coarse tapped hole or nut. Match it with 3/8-24 fine nuts or tapped holes only.
2) How strong is a grade 5 zinc hex bolt like the Metallics JG5HCF59?
It is a medium carbon steel cap screw, heat treated to grade 5, with 105,000 psi minimum tensile and yield strength and a hardness of Rockwell C19-30. Steel is per AISI 1008-1026 and dimensions follow ASME B18.2.1-2012. For higher clamp loads you would step up to grade 8.
3) Does the Metallics JG5HCF59 bolt meet Buy American and ARRA requirements for a government job?
Metallics lists this grade 5 hex bolt as both Buy American compliant and ARRA compliant, which is what public and institutional procurement usually needs on the submittal. Country of origin is listed as multiple.
4) Will a zinc plated grade 5 bolt hold up outdoors or in a damp mechanical room?
The JG5HCF59 is plated steel with a zinc chromate finish, which handles indoor and sheltered equipment duty well. It is not stainless, so continuous wet, coastal or washdown exposure will eventually corrode it. For those conditions specify stainless.
5) How many bolts come in a jar of Metallics JG5HCF59?
100 pieces per jar, and the jar is the minimum order quantity. The packed jar weighs 2195 g. Metallics notes other sizes and quantities are available by request.
6) Will the JG5HCF59 pass through a 3/8 inch clearance hole?
The shank outside diameter runs 0.3690 to 0.3750 inch, so it is a nominal 3/8 inch bolt and needs a clearance hole slightly over 3/8 inch, typically 13/32 inch. A drilled hole at exactly 0.375 will be tight or bind.
7) What is this 3/8-24 x 1-1/4 hex bolt typically used for?
Mounting motors to machinery is the common use, and it is also a staple in automotive and truck repair. The 1-1/4 inch length under the head suits thinner bolted joints; fine 24 TPI thread gives better holding in vibrating equipment.
