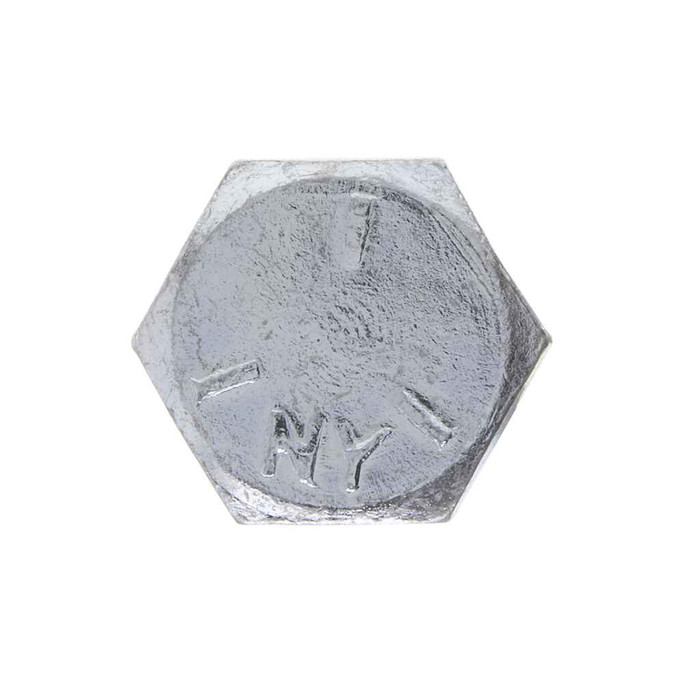

Metallics JG5HCF44 Bolts 3/8-24 X 3/4 G5 Hxbt St-zn (Jar 100)

Metallics JG5HCF44 Bolts 3/8-24 X 3/4 G5 Hxbt St-zn (Jar 100)

(No reviews yet) Write a Review

Model: JG5HCF44
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.91
$1.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 3/8-24 X 3/4 G5 Hxbt St-zn (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request

  • Features

    • Used to mount motor to machinery. Also popular in automotive and truck repair
    • A cap screw made from medium carbon steel and heat-treated

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Fastener Head Height:
15/64 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.551 - 0.562 in.
Fastener Height:
0.226 - 0.243
Fastener Length:
4-Mar
Fastener Width:
0.628 - 0.650
Grade:
5
Hardness:
Rockwell C25-34
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.3690 - 0.3750 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1597 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
120000 psi minimum
Thread Per Inch:
24
Thread Standard:
ASME B18.2.1-2012
Voltage Rating:
Zinc Chromate
Wrenching Height:
0.16
Yield Strength:
92000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
G5HC and JG5HC
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JG5HCF44 – Frequently Asked Questions

1) Is the Metallics JG5HCF44 hex bolt a coarse or fine thread?
Fine thread. The JG5HCF44 is a 3/8-24 hex cap screw, 24 threads per inch, which is UNF rather than the more common 3/8-16 UNC. It will not thread into a coarse 3/8-16 nut or tapped hole, so match it to fine-thread hardware only.
2) How strong is a Grade 5 hex bolt, and is it strong enough to mount a motor?
Grade 5 medium carbon steel, heat treated to Rockwell C25-34, with 120,000 psi minimum tensile and 92,000 psi minimum yield. Metallics lists motor mounting to machinery as a primary use, along with automotive and truck repair. For higher clamp loads you would step up to Grade 8.
3) Do these Metallics hex bolts meet Buy American and ARRA requirements for a public project?
Metallics lists the G5HC and JG5HC Grade 5 hex bolts as both Buy American compliant and ARRA compliant, with country of origin recorded as multiple. That is what institutional and government procurement normally needs on the submittal for fasteners.
4) Will the JG5HCF44 bolt pass through a 3/8 inch drilled hole?
Shank outside diameter measures 0.3690 to 0.3750 in., so it is a nominal 3/8 inch bolt and needs a clearance hole, typically 13/32 or 7/16 inch, not a drilled 3/8 inch hole it would bind in.
5) Are these zinc plated bolts okay for outdoor or wet locations?
The finish is zinc plating on steel, which is a dry-location and light-exposure coating. It handles indoor machinery, panel, and equipment mounting well, but in sustained wet, washdown, or coastal conditions zinc plated carbon steel will corrode. Use hot dip galvanized or stainless for those.
6) How many bolts come in a jar of Metallics JG5HCF44?
Packed 100 pieces in a jar, and 100 count is the order minimum, so one jar is the smallest buy. Jar packaging keeps the fine-thread 3/8-24 bolts separated from the coarse ones on a truck or shop shelf.
7) Can I get this Metallics Grade 5 hex bolt in other lengths or diameters?
Yes. The G5HC and JG5HC Grade 5 zinc plated hex bolt line runs in other sizes and pack quantities beyond the 3/8-24 x 3/4 jar of 100, available by request.
