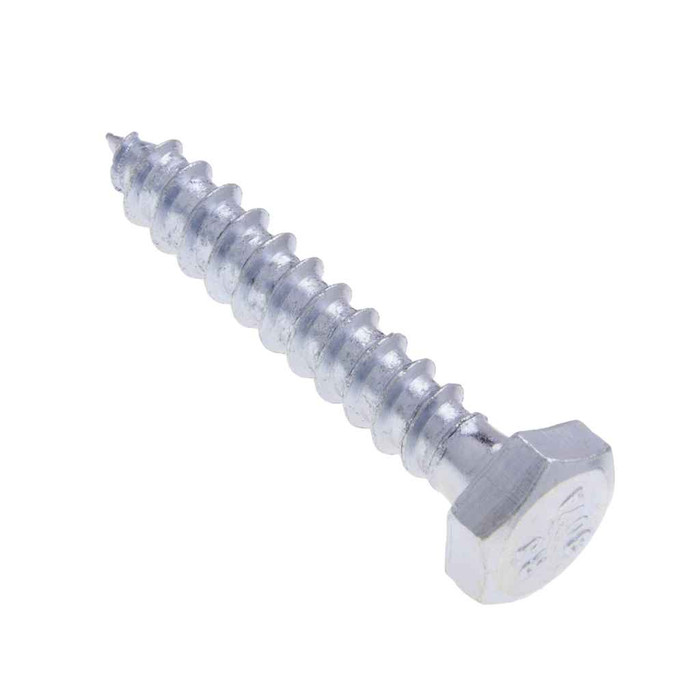

Bolts 3/8 X 1-3/4 Hx Lag Blt St-zn (Jar 100)
Features
- A full-bodied boltwith hex head, spaced threads and a gimlet point
- For use in wood in non-corrosive enviroments
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- 4-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.544 - 0.562 in.
- Fastener Height:
- 0.226 - 0.268
- Fastener Length:
- 1/3/04
- Fastener Width:
- 0.620 - 0.650
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.360 - 0.388 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 2631 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Per Inch:
- 7
- Washer Od:
- 0.125 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS47 – Frequently Asked Questions
1) Can I use the Metallics JBLS47 3/8 x 1-3/4 hex lag bolt outdoors or in a damp location?
No. The JBLS47 is zinc plated steel, and Metallics specifies it for use in wood in non-corrosive environments. Zinc plating handles dry interior work, not wet, treated-lumber, coastal, or chemically aggressive conditions. For exterior or damp framing, step up to a hot-dip galvanized or 18-8 stainless lag of the same 3/8 inch diameter.
2) What size pilot hole should I drill for a 3/8 inch lag bolt like the JBLS47?
Measure off the shank, not the nominal size. The JBLS47 runs 0.360 to 0.388 inch outside diameter over the threads with 7 threads per inch, and it has a gimlet point that starts itself. In softwood framing drill a pilot close to the root of the thread and go smaller than the 0.360 inch minimum OD so the spaced threads have wood to bite; in hardwood drill nearer the full shank diameter to avoid snapping the bolt or splitting the member.
3) How many lag bolts are in a jar of Metallics JBLS47, and is there a minimum order?
They ship 100 to the jar, and that count is also the order minimum, so one jar is the smallest buy. Metallics notes other sizes and quantities are available by request for the BLS and JBLS series.
4) Will the Metallics JBLS47 satisfy Buy American or ARRA requirements on a federal job?
Metallics flags the JBLS47 as compliant for both ARRA and Buy American, while listing China as the country of origin. On federally funded work, give both of those facts to the contracting officer, since domestic-content thresholds vary by program and by contract clause.
5) Does this Metallics lag bolt meet a dimensional spec I can put on a submittal?
Yes. The JBLS47 is manufactured to ASME B18.2.1-1996 for dimensions and AISI 1006-1022 for material, with 60,000 psi minimum tensile. Those three lines are usually what a spec reviewer wants for a lag bolt submittal, along with the zinc plated finish.
6) Can a lag bolt like this be driven into concrete or masonry?
No. The JBLS47 is a full-bodied lag with spaced threads and a gimlet point meant for wood only. For concrete or block you need a concrete screw anchor or an expansion anchor sized to the hole; driving a wood lag into masonry will not develop any holding value.
7) Does the JBLS47 lag bolt come with washers?
No washers are supplied as a separate item with the jar. A washer OD of 0.125 in. is listed in the specs, but for load-bearing wood connections you should order flat washers separately so the hex head does not crush into the wood surface.
