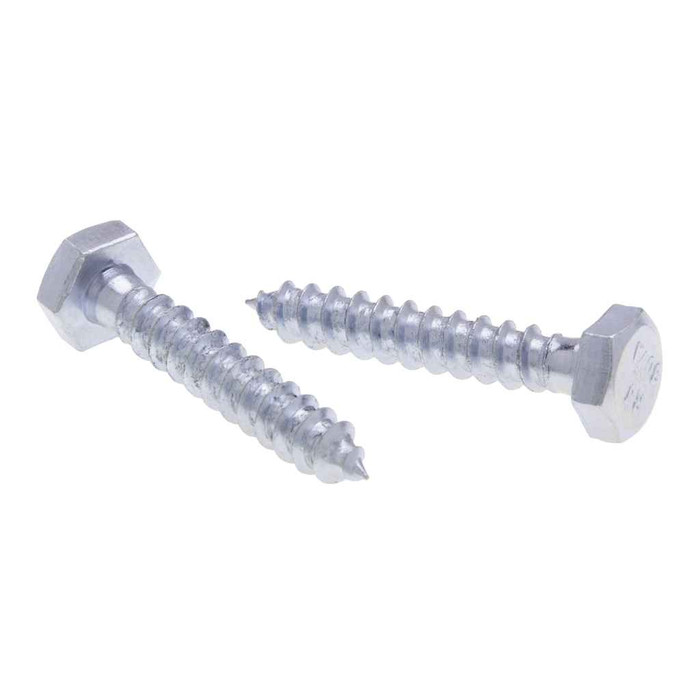

Metallics JBLS45 Bolts 3/8 X 1 Hx Lag Blt St-zn (Jar 100 )

Metallics JBLS45 Bolts 3/8 X 1 Hx Lag Blt St-zn (Jar 100 )

(No reviews yet) Write a Review

Model: JBLS45
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.73
$1.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 3/8 X 1 Hx Lag Blt St-zn (Jar 100 )

  • Additional Notes

    • Other sizes and quantities available by request

  • Features

    • For use in wood in non-corrosive enviroments
    • A full-bodied boltwith hex head, spaced threads and a gimlet point

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Dimensional Standard:
ASME B18.2.1-1996
Division:
Electrical H1
Fastener Head Height:
4-Jan in.
Fastener Head Type:
Hex
Fastener Head Width:
0.544 - 0.562 in.
Fastener Height:
0.226 - 0.268
Fastener Length:
1
Fastener Width:
0.620 - 0.650
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Outside Diameter:
0.360 - 0.388 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1492 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
7
Washer Od:
0.125 in.
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
BLS and JBLS
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JBLS45 – Frequently Asked Questions

1) Can I use these zinc lag bolts outdoors or in a wet location?
No. The JBLS45 lag bolt is zinc plated steel and is specified for use in wood in non-corrosive environments only. Zinc plating is a dry-location coating, so for exterior, damp, coastal or chemically aggressive locations you want hot dip galvanized or 18-8 stainless lags instead.
2) Can I use these on a federally funded job with Buy American requirements?
No. The JBLS45 lag bolt is listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. For a job carrying domestic sourcing language you need a domestically manufactured lag instead.
3) Do I have to drill a pilot hole for a 3/8 lag bolt, or does it self-start?
The JBLS45 is a full-bodied lag bolt with spaced threads and a gimlet point, so the point starts itself in soft wood. It is not a self-drilling screw though: with a 0.360 to 0.388 inch shank and 7 threads per inch, a pilot hole is normal practice in hardwood or near an edge to avoid splitting and to keep from shearing the head.
4) How many lag bolts come in a jar, and can I buy fewer than that?
The JBLS45 ships as a jar of 100, and 100 in jar quantity is the order minimum. Metallics does offer other sizes and quantities by request if the jar count does not suit the job.
5) What strength and standard do these Metallics lag bolts meet for a submittal?
Carbon steel to AISI 1006 - 1022, 60,000 psi minimum tensile strength, hardness Rockwell B70 to B100, and dimensions to ASME B18.2.1-1996. That is the data a spec reviewer normally wants for a wood lag connection.
6) Are these lag bolts meant for electrical strap and hanger work?
Yes. The field application for this Metallics lag bolt covers the electrical, plumbing, heating and air conditioning trades, which is where a 3/8 x 1 inch zinc lag typically lands: anchoring conduit straps, pipe clamps, hangers and backing plates to wood framing in dry locations.
