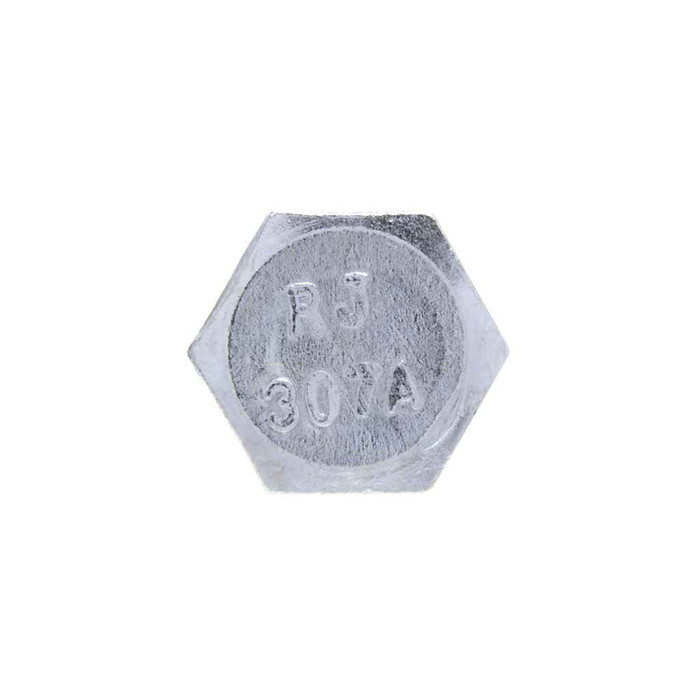

Bolts 3/8 X 7 Hx Lag Blt St-zn (Jar 50)
Features
- A full-bodied boltwith hex head, spaced threads and a gimlet point
- For use in wood in non-corrosive enviroments
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- 4-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.544 - 0.562 in.
- Fastener Height:
- 0.226 - 0.268
- Fastener Length:
- 7
- Fastener Width:
- 0.620 - 0.650
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.360 - 0.388 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 4033 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 7
- Washer Od:
- 0.125 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS52 – Frequently Asked Questions
1) Can Metallics JBLS52 lag bolts be used outdoors or in a damp location?
No. The JBLS52 is a zinc plated steel lag bolt intended for use in wood in non-corrosive environments. Zinc plating handles dry interior work, not weather exposure, treated lumber, or coastal air. For exterior or corrosive conditions you want a hot dip galvanized or 18-8 stainless lag of the same 3/8 x 7 size instead.
2) What size pilot hole does a 3/8 x 7 inch lag bolt need?
Pilot sizing comes off the shank, and the JBLS52 measures 0.360 to 0.388 inch outside diameter with 7 threads per inch. In softwood a pilot roughly at the root diameter (the 0.226 to 0.268 inch range listed for this fastener) works; in hardwood drill closer to the full 0.360 to 0.388 inch shank for the unthreaded portion. The gimlet point lets the bolt start itself once the pilot is drilled.
3) Is this lag bolt strong enough for hanging conduit racks and unistrut?
The JBLS52 is a full bodied 3/8 inch lag with 60,000 psi minimum tensile strength and a Rockwell B70 to B100 hardness, made from AISI 1006 to 1022 steel to ASME B18.2.1-1996. That is standard grade commercial lag stock, and it is listed for the electrical, plumbing, heating and air conditioning trades, which is exactly the trapeze hanger, strut, and equipment mounting work it gets bought for. For structural anchorage, follow whatever the engineer's load table calls for.
4) Will these lag bolts qualify on a federally funded Buy American job?
No. JBLS52 is marked not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. If your project has domestic sourcing requirements written into the spec, these will not satisfy them and you need a domestically sourced lag.
5) How many lag bolts come in a jar of Metallics JBLS52?
JBLS52 ships as a jar of 50 pieces, and the order minimum is 50 each. The jar pack is the reason the JBLS prefix exists in the BLS and JBLS series: same bolt, counted and jarred for a shop shelf or a service van rather than loose bulk.
6) Can I get this Metallics lag bolt in a different length or a larger quantity?
Yes. The BLS and JBLS series runs other diameters, lengths, and pack quantities beyond the 3/8 x 7 inch jar of 50, available by request. If you need the same bolt in bulk rather than jarred, or a shorter 3/8 lag, ask for the matching BLS part.
7) Are these lag bolts right hand thread?
Yes, right hand thread, so they drive clockwise with 7 threads per inch of spaced lag thread. Nothing unusual to watch for when you are running them with a drill or impact.
