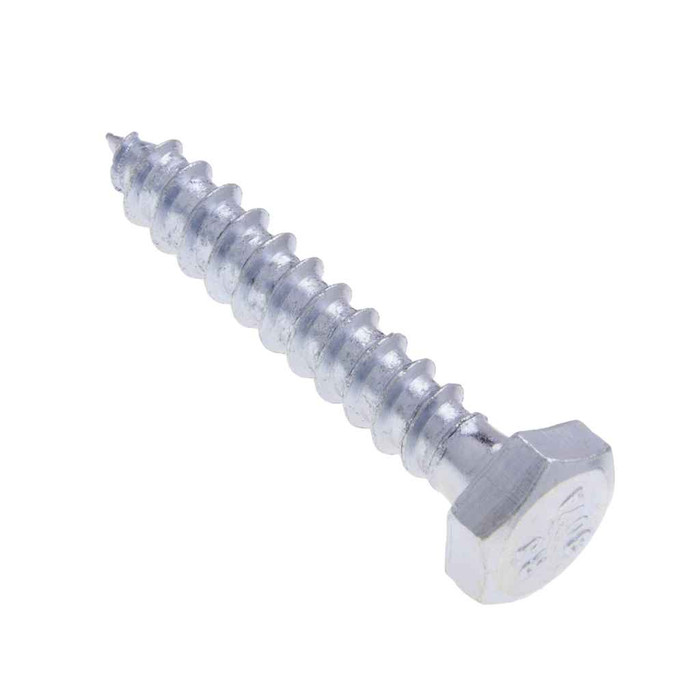

Bolts 1/2 X 3 Hx Lag Blt St-zn (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- A full-bodied boltwith hex head, spaced threads and a gimlet point
- For use in wood in non-corrosive enviroments
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.725 - 0.750 in.
- Fastener Height:
- 0.302 - 0.364
- Fastener Length:
- 3
- Fastener Width:
- 0.826 - 0.866
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.482 - 0.515 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 3420 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 6
- Washer Od:
- 0.156 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS30 – Frequently Asked Questions
1) Can the Metallics JBLS30 1/2 x 3 lag bolt be used outdoors or in a damp location?
No. The JBLS30 is a zinc-plated steel lag bolt specified for use in wood in non-corrosive environments. Zinc plating handles dry interior and protected work, but for exterior, treated lumber, coastal or wet locations you want a hot-dip galvanized or stainless lag instead.
2) What size pilot hole and driver do I need for a 1/2 inch Metallics hex lag bolt?
Measured shank diameter runs 0.482 to 0.515 in., so a nominal 1/2 inch lag. Thread pitch is 6 threads per inch, right hand, with a gimlet point that starts itself in wood. The hex head measures 0.725 to 0.750 in. across the flats, which is a 3/4 inch socket or wrench. Drill your lead hole to roughly the root diameter of the thread in hardwood; in softwood the gimlet point will pull in with a smaller lead hole.
3) Can I use the JBLS30 lag bolt on a federally funded or Buy American job?
No. The Metallics JBLS30 is listed as not Buy American compliant and not ARRA compliant, with country of origin shown as multiple. If your specification carries a domestic sourcing clause, this jar will not satisfy it and you need a domestically produced lag.
4) Does a hex lag bolt need a nut, or does it thread straight into the wood?
Straight into the wood. A lag bolt like the JBLS30 has spaced threads and a gimlet point that cut their own thread in the timber, so there is no nut involved and no through-access required. Drive it with a wrench or impact socket on the hex head. Washers are not included in the jar, so add flat washers separately if your bracket needs bearing area under the head.
5) Can I get this Metallics hex lag bolt in a different length or diameter than 1/2 x 3?
Yes. The BLS and JBLS series covers other sizes and quantities by request beyond the 1/2 x 3 jar of 50, so if you need a shorter lag for thinner stock or a longer one to reach through blocking, it can be sourced in the same zinc-plated steel.
