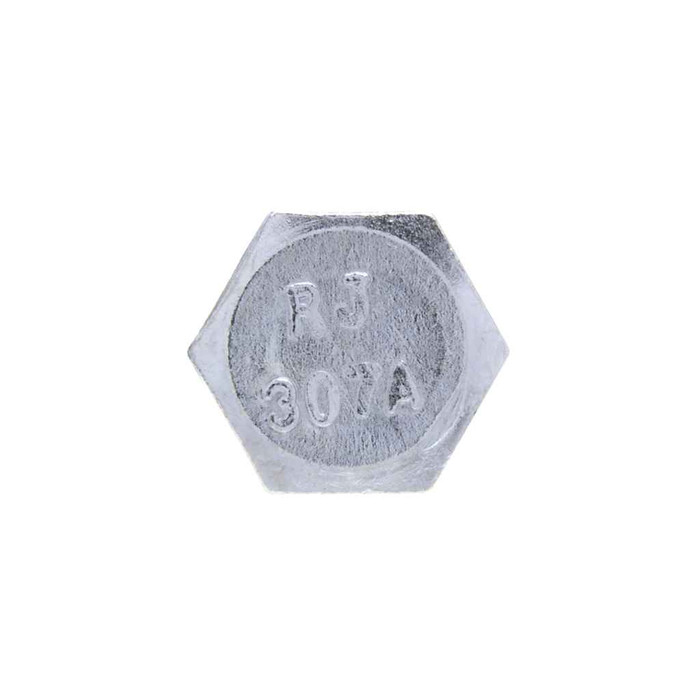

Bolts 3/8 X 5 Hx Lag Blt Galv (Box 100)
Features
- For use in corrosive enviroments
- A full-bodied boltwith hex head, spaced threads and a gimlet point
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- 4-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.544 - 0.562 in.
- Fastener Height:
- 0.226 - 0.268
- Fastener Length:
- 5
- Fastener Width:
- 0.620 - 0.650
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.360 - 0.388 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Product Height:
- 6.13 in
- Product Length:
- 9 in
- Product Weight:
- 14.01 lbs
- Product Width:
- 9 in
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Per Inch:
- 7
- Washer Od:
- 0.125 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Lag Bolt
- Type2:
- Hexagonal Lag Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Lag Bolt
- Product Material:
- Steel
Metallics BLS26G – Frequently Asked Questions
1) Can I use these lag bolts outdoors or in a damp mechanical room?
Yes. The BLS26G is galvanized steel and is made for corrosive environments, so exterior framing, damp mechanical spaces and unconditioned areas are within what it is built for. For fully wet or chemical exposure you would step up to stainless.
2) Are these lag bolts Buy American and ARRA compliant for a government or school job?
Yes, the BLS26G is flagged both ARRA compliant and Buy American compliant, which is what public and institutional specs usually call for. Country of origin is listed as multiple.
3) Do I need to drill a pilot hole, or will these lag bolts start on their own?
The BLS26G has a gimlet point and spaced threads, so it starts itself in soft wood, but it is a full-bodied bolt with a 0.360 to 0.388 inch shank and a pilot hole is still the right practice in dimensional lumber to avoid splitting and to get full thread engagement. Drill the clearance hole through the member being fastened and the pilot into the holding member.
4) What standard and strength do these galvanized lag bolts meet?
Dimensions follow ASME B18.2.1-1996, the material is steel in the AISI 1006 to 1022 range, tensile strength is 60,000 psi minimum and hardness runs Rockwell B70 to B100. That is standard low-carbon lag screw strength, suitable for general wood anchoring rather than structural high-strength bolted connections.
5) Can I get the 3/8 inch hex lag bolt in a different length or a smaller quantity?
The BLS and JBLS series covers other sizes and quantities by request, so a shorter or longer 3/8 inch lag or a different pack count can be sourced. The BLS26G itself is fixed at 3/8 x 5 inches, galvanized, 100 per box.
6) How much does a box of 100 Metallics 3/8 x 5 galvanized lag bolts weigh?
A full box runs 14.01 lbs. Worth knowing if you are staging material for an upper-floor install or working out hand-carry loads.
