Metallics BLS27PLB Bolts 3/8 X...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.80
$1.70

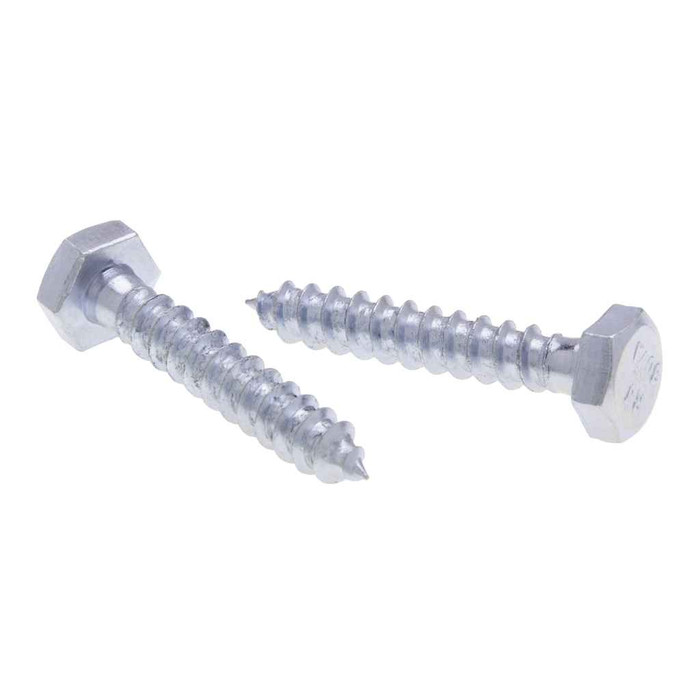

Metallics BLS27PLB Bolts 3/8 X 5 Hx Lag Blt Pln-St (Box 250)

Metallics BLS27PLB Bolts 3/8 X 5 Hx Lag Blt Pln-St (Box 250)

(No reviews yet) Write a Review

Model: BLS27PLB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.80
$1.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 3/8 X 5 Hx Lag Blt Pln-St (Box 250)

  • Features

    • A full-bodied boltwith hex head, spaced threads and a gimlet point
    • Has superior corrossion resistance to galvanized steel bolts

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
MUL
Dimensional Standard:
ASME B18.2.1-1996
Division:
Electrical H1
Fastener Head Height:
4-Jan in.
Fastener Head Type:
Hex
Fastener Head Width:
0.544 - 0.562 in.
Fastener Height:
0.226 - 0.268
Fastener Length:
6
Fastener Width:
0.620 - 0.650
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Order Minimum Imperial:
250
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.360 - 0.388 IN
Pack Type:
Box
Product Group:
Fasteners
Product Height:
6.13 in
Product Length:
9 in
Product Weight:
36.74 lbs
Product Width:
9 in
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
7
Washer Od:
0.125 in.
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Lag Bolt
Type2:
Hexagonal Lag Bolt
Series:
BLS and JBLS
Product Finish:
Plain
Product Details:
Hexagonal Lag Bolt
Product Material:
Steel

Metallics BLS27PLB – Frequently Asked Questions

1) Is a plain finish lag bolt OK for outdoor or damp locations?
No. The BLS27PLB is plain steel with no coating, so it belongs in dry interior work only. For exterior, roof, or damp service pick a hot dip galvanized or stainless lag of the same 3/8 diameter instead. Material is low carbon steel to AISI 1006-1022.
2) Does this Metallics lag bolt meet Buy American requirements for a government job?
Yes, the BLS27PLB is flagged both ARRA compliant and Buy American compliant, which is what a public agency or institutional procurement office will ask for. Country of origin is listed as multiple.
3) What pilot hole should I drill for the Metallics BLS27PLB lag bolt in wood framing?
Size the lead hole off the root, not the outside diameter. The bolt runs 0.360 to 0.388 inch over the threads at 7 threads per inch with a gimlet point, so the point starts itself in the clearance hole and the threaded portion wants a smaller lead hole in solid lumber. Drill the clearance hole in the part being fastened to just over 3/8 inch so the shank passes freely.
4) What strength rating does the Metallics BLS27PLB lag bolt carry?
Minimum tensile strength is 60,000 psi with hardness of Rockwell B70 to B100, which is standard low carbon lag screw material. It is dimensioned to ASME B18.2.1-1996, so it interchanges with any other spec lag of the same diameter and length. If your drawing calls out a higher grade fastener, this is not the part.
5) Do I need washers with these hex lag bolts, or do they come with them?
Washers aren't included. Lags with a full bodied hex head should be set over a flat washer so the head doesn't crush into the wood or pull through a strap. Buy the washers separately in 3/8 to match the bolt.
6) Can I get this Metallics lag bolt in a different length or a smaller quantity?
The BLS and JBLS series covers other sizes and pack quantities by request, so if 250 to a box is more than the job needs or you want a different length in 3/8, ask rather than assuming this is the only configuration.
