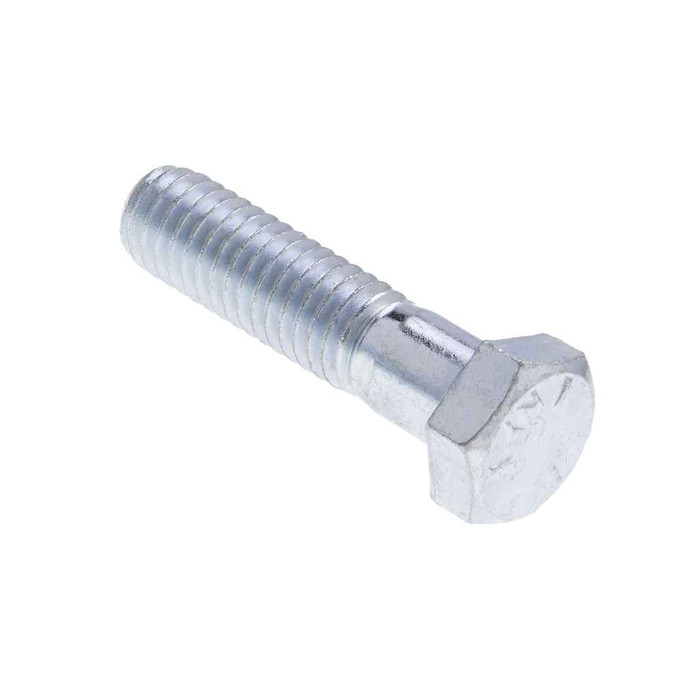

Metallics JG5HC13 Bolts 5/16-18 X 1-1/2 G5 Hxbt St-zn (Jar 100)

Metallics JG5HC13 Bolts 5/16-18 X 1-1/2 G5 Hxbt St-zn (Jar 100)

(No reviews yet) Write a Review

Model: JG5HC13
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.69
$0.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 5/16-18 X 1-1/2 G5 Hxbt St-zn (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request

  • Features

    • Used to mount motor to machinery. Also popular in automotive and truck repair
    • A cap screw made from medium carbon steel and heat-treated

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Height:
13/64 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.489 - 0.500 in.
Fastener Height:
0.195 - 0.211
Fastener Length:
1/1/02
Fastener Width:
0.557 - 0.577
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Grade:
5
Hardness:
Rockwell C19-30
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Outside Diameter:
0.3065 - 0.3125 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
1755 g
Product Width:
88.9 MM
Sub Division:
Electrical-E H2
Tensile Strength:
105000 psi minimum
Thread Per Inch:
18
Thread Standard:
ASME B18.2.1-2012
Voltage Rating:
Zinc Chromate
Wrenching Height:
0.14
Yield Strength:
105000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
G5HC and JG5HC
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JG5HC13 – Frequently Asked Questions

1) What thread and size is the Metallics JG5HC13 hex bolt, and what nut will it take?
It's a 5/16-18 hex cap screw, so 18 threads per inch in the coarse (UNC) series. Shank outside diameter runs 0.3065 to 0.3125 in. Pair it with a 5/16-18 UNC hex nut; a 5/16-24 fine-thread nut will not thread on.
2) Do these Metallics hex bolts meet Buy American or ARRA requirements for a government job?
No. The JG5HC13 Grade 5 hex bolts are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic sourcing clause, you'll need a domestically produced Grade 5 hex cap screw instead.
3) Can I use these zinc plated Grade 5 bolts outdoors or on rooftop HVAC equipment?
The bolts are steel with a zinc finish, which gives moderate corrosion resistance for covered or indoor use and light exterior exposure. For constant weather, coastal salt air, or wet mechanical rooms, go to hot dip galvanized or stainless fasteners instead. Metallics lists these for electrical, plumbing, and heating and air conditioning work.
4) How many bolts come in a jar of Metallics JG5HC13 and can I buy fewer?
They ship in a jar of 100, and 100 is the order minimum, so it's sold by the full jar rather than by the piece. Metallics does offer other sizes and quantities in the G5HC and JG5HC series by request.
5) What dimensional standard do these hex cap screws follow, and will they interchange with other brands?
Threads and head dimensions follow ASME B18.2.1-2012, the standard for hex bolts and hex cap screws, and the steel is AISI 1008-1026. Any other 5/16-18 x 1-1/2 Grade 5 hex cap screw built to that same standard will drop into the same hole and take the same 1/2 in. wrench.
6) Is the JG5HC13 a bolt or a cap screw, and does it come with a nut or washer?
It's a hex cap screw, hex head, sold as the fastener only. No nuts, flat washers, or lock washers are included, so order 5/16-18 nuts and 5/16 washers separately if the connection isn't a tapped hole.
