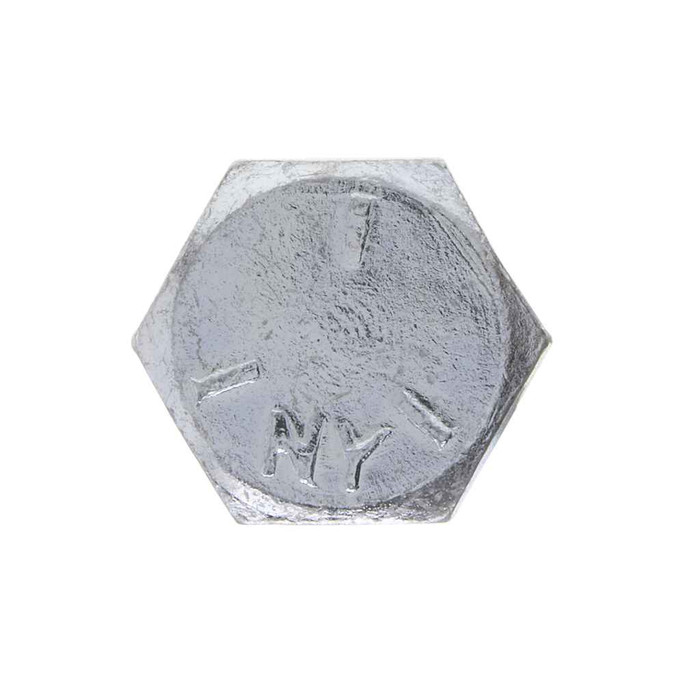

Bolts 5/16-18 X 1 G5 Hxbt St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Features
- Used to mount motor to machinery. Also popular in automotive and truck repair
- A cap screw made from medium carbon steel and heat-treated
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- 13/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.489 - 0.500 in.
- Fastener Height:
- 0.195 - 0.211
- Fastener Length:
- 1
- Fastener Width:
- 0.557 - 0.577
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 5
- Hardness:
- Rockwell C25-34
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Outside Diameter:
- 0.3065 - 0.3125 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 3.6 in
- Product Length:
- 3 in
- Product Weight:
- 1293 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 120000 psi minimum
- Thread Per Inch:
- 18
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.14
- Yield Strength:
- 92000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC43 – Frequently Asked Questions
1) Is a Grade 5 bolt strong enough to mount a motor to its base?
That is the job this one is built for. Grade 5 medium carbon steel, heat treated to Rockwell C25-34, with 120,000 psi minimum tensile and 92,000 psi minimum yield. Metallics lists motor mounting to machinery as the primary application, along with automotive and truck repair. If your drawing calls for Grade 8, this is not a substitute.
2) What thread does the JG5HC43 use, and will standard 5/16 nuts thread onto it?
It is 5/16-18, meaning 18 threads per inch, which is standard UNC coarse thread for 5/16 diameter. Any 5/16-18 coarse nut or tapped hole takes it. Shank diameter runs 0.3065 to 0.3125 inch and the thread conforms to ASME B18.2.1-2012.
3) Does this Metallics bolt meet Buy American or ARRA requirements on a public project?
No. The JG5HC43 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded job with domestic sourcing language, you need a domestic Grade 5 hex bolt instead.
4) What size wrench or socket do I need for the Metallics JG5HC43 5/16-18 hex bolt?
Across the flats the head measures 0.489 to 0.500 inch, so a 1/2 inch wrench or socket is the right fit. Head height is 13/64 inch, which matters if you are working in a shallow counterbore or under a motor foot.
5) Is a zinc plated Grade 5 bolt okay for outdoor or damp locations?
The finish is zinc on carbon steel, which handles indoor mechanical rooms, equipment rooms and general electrical, plumbing and HVAC work. Zinc plating is a sacrificial coating, not stainless, so sustained wet exposure, coastal air or washdown areas will eventually rust it. For those, go stainless or hot dip galvanized.
6) How many bolts come in a jar, and can I buy fewer than 100?
They ship in a jar of 100, and 100 is the order minimum, so the jar is the smallest unit. Metallics does list other sizes and quantities in the G5HC and JG5HC series by request. A full jar weighs 1293 g.
7) What is the difference between a Grade 5 hex cap screw and a standard hex bolt?
The JG5HC43 is a cap screw made from medium carbon steel and heat treated, built to ASME B18.2.1-2012. Cap screws hold tighter head and body tolerances than general purpose bolts, which is why they suit machine mounting where the fastener locates as well as clamps. A plain low carbon hex bolt carries no grade marking and much lower tensile than the 120,000 psi minimum here.
