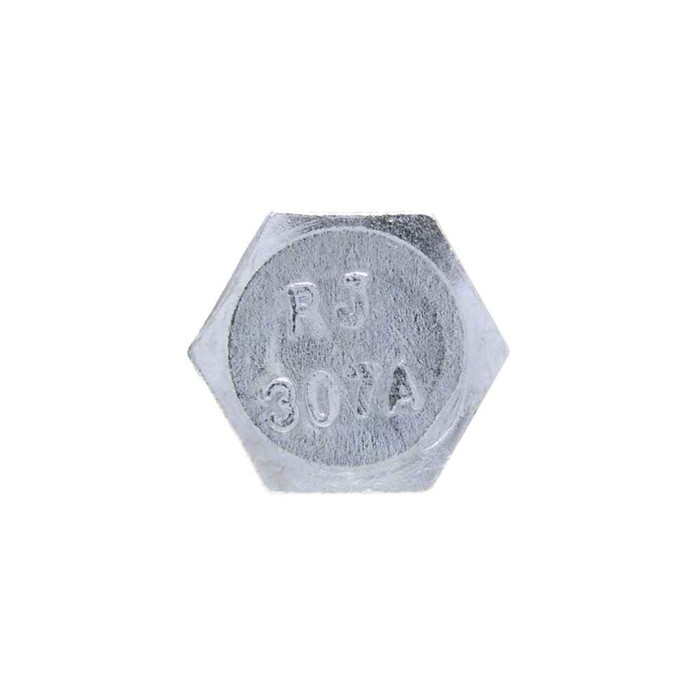

Bolts 5/16 x 4-1/2 Hx Lag Blt St-zn (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- For use in wood in non-corrosive enviroments
- A full-bodied boltwith hex head, spaced threads and a gimlet point
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- Jul-32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.484 - 0.500 in.
- Fastener Height:
- 0.195 - 0.235
- Fastener Length:
- 4/1/02
- Fastener Width:
- 0.552 - 0.577
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.298 - 0.324 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 1819 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 9
- Washer Od:
- 0.125 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS44 – Frequently Asked Questions
1) Can I use the Metallics JBLS44 5/16 x 4-1/2 lag bolt outdoors or in a damp location?
No. The JBLS44 is a zinc plated steel lag bolt intended for use in wood in non-corrosive environments. Zinc plating handles dry interior work, but for exterior, damp, or treated-lumber contact you want hot dip galvanized or 18-8 stainless lags instead, since plated steel will corrode and treated lumber chemistry attacks it.
2) What size pilot hole does a 5/16 lag bolt need, and does the JBLS44 need one?
The JBLS44 has a gimlet point, so it starts itself, but at a 0.298 to 0.324 inch outside diameter with 9 threads per inch it still needs a pilot hole in anything but soft, thin wood. Drill the clearance hole through the piece being fastened at full shank diameter, then a smaller lead hole into the receiving member so the spaced threads can bite. Driving a 5/16 lag dry into dense framing without a lead hole is how heads snap.
3) Will these lag bolts pass a Buy American or ARRA requirement on a federal job?
No. The JBLS44 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, this jar will not satisfy it and you need a domestically sourced lag instead.
4) How many lag bolts come in a jar of Metallics JBLS44, and can I buy just a few?
The JBLS44 ships as a 50 piece jar, and 50 each is the order minimum, so it is sold by the jar rather than loose by the piece. The jar packaging suits a van or shop shelf where you are pulling a handful at a time on service calls.
5) Can I use a 5/16 lag bolt directly into concrete or masonry?
Not on its own. The JBLS44 is a wood lag, specified for use in wood, with spaced threads and a gimlet point. To land it in concrete or block you need a lag shield or lead anchor sized for a 5/16 lag set into the masonry first. For bare concrete, a wedge anchor or screw anchor is the correct fastener, not a lag.
6) Do I need washers with these lag bolts, or are any included?
The jar contains the lag bolts only, no washers. On wood you generally want a flat washer under the hex head so the head does not crush into the grain as you torque it; order those separately to suit the 5/16 shank.
