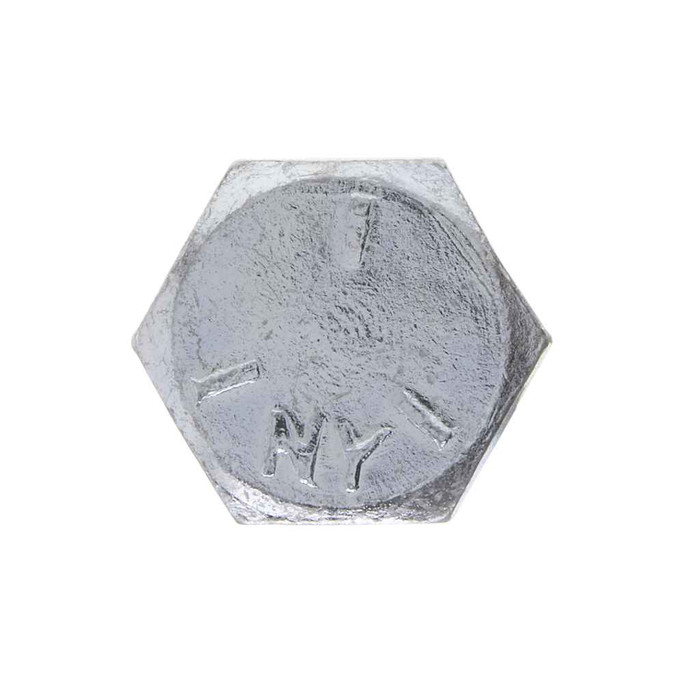

Bolts 5/8-11 X 1-1/2 G5 Hxbt St-zn (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- Used to mount motor to machinery. Also popular in automotive and truck repair
- A cap screw made from medium carbon steel and heat-treated
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- 25/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.922 - 0.938 in.
- Fastener Height:
- 0.378 - 0.403
- Fastener Length:
- 1/1/02
- Fastener Width:
- 1.051 - 1.083
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 5
- Hardness:
- Rockwell C19-30
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.6170 - 0.6250 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 2109 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 105000 psi minimum
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.269
- Yield Strength:
- 105000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC62 – Frequently Asked Questions
1) Does the Metallics JG5HC62 bolt meet Buy American or ARRA requirements for a federal job?
No. The JG5HC62 is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. If your project has domestic sourcing language in the contract, this bolt will not satisfy it and you need a documented domestic Grade 5 fastener instead.
2) Will a zinc plated Grade 5 bolt hold up outdoors or in a damp mechanical room?
The finish is zinc plating over steel, which handles indoor mechanical rooms, equipment rooms and covered service areas. It is a mild corrosion barrier, not a marine or constantly wet finish, so for direct weather exposure, wash-down areas or anything near chemicals you are better off with hot dip galvanized or stainless. Stated field applications are electrical, plumbing, heating and air conditioning work.
3) How many bolts come in the Metallics JG5HC62 jar?
Fifty bolts, packed in a jar. The order minimum is 50 each, so one jar is the smallest buy. The jar weighs 2109 g. Nuts and washers are not included, so order those separately in 5/8-11 to match.
4) What steel is this Grade 5 hex cap screw made from?
Medium carbon steel, heat treated, with material per AISI 1008 to 1026. Hardness comes in at Rockwell C19-30 and both tensile and yield are listed at 105,000 psi minimum. That heat treatment is what separates a Grade 5 cap screw from a plain low carbon hex bolt, and it is why it holds torque on a motor base without stretching.
