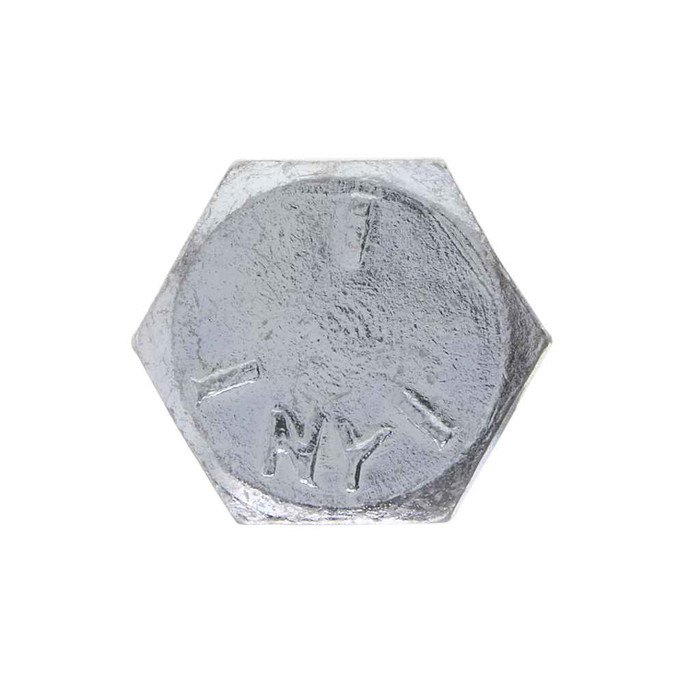

Bolts 5/8-11 X 1-1/2 G5 Hxbt St-zn (Jar 50)
Features
- Used to mount motor to machinery. Also popular in automotive and truck repair
- A cap screw made from medium carbon steel and heat-treated
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Fastener Head Height:
- 25/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.922 - 0.938 in.
- Fastener Height:
- 0.378 - 0.403
- Fastener Length:
- 1/1/02
- Fastener Width:
- 1.051 - 1.083
- Grade:
- 5
- Hardness:
- Rockwell C19-30
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.6170 - 0.6250 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 2109 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 105000 psi minimum
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.269
- Yield Strength:
- 105000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC62D – Frequently Asked Questions
1) What thread does the Metallics JG5HC62D hex bolt use, and will it take a standard 5/8-11 nut?
It is a 5/8-11 bolt, meaning 5/8 inch nominal diameter with 11 threads per inch, which is the standard UNC coarse pitch for that diameter. Any standard 5/8-11 coarse nut or tapped hole will take it. Measured shank outside diameter runs 0.6170 to 0.6250 inch. Threads are made to ASME B18.2.1-2012.
2) How strong is a Grade 5 hex bolt like the Metallics JG5HC62D?
Grade 5, made from medium carbon steel that is heat treated. Published minimum tensile is 105,000 psi and hardness runs Rockwell C19-30. Material conforms to AISI 1008-1026. That is the normal strength class for mounting motors, machine bases, and truck and automotive repair work. If your drawing calls out Grade 8, this is not a substitute.
3) Do these Metallics hex bolts meet Buy American requirements on a federal or public job?
Yes. The JG5HC62D is made in the United States and is flagged both Buy American compliant and ARRA compliant, which is what a government, school district, or institutional procurement officer needs on the submittal.
4) What wrench or socket size fits these 5/8-11 Grade 5 hex bolts?
Across the flats the hex head measures 0.922 to 0.938 inch, so a 15/16 inch socket or wrench is the fit. Head height is 25/64 inch, which matters if you are working in a shallow counterbore or under a motor foot.
5) Will zinc plated Grade 5 bolts hold up outdoors or in a wet mechanical room?
The finish is zinc on a steel bolt. Zinc plating handles indoor mechanical rooms, equipment rooms, and sheltered service well. For continuous outdoor exposure, washdown, or coastal air, step up to hot dip galvanized or stainless instead, because plated zinc will eventually give up and the base steel will rust.
6) How many bolts come in a jar and can I buy fewer than 50?
They ship as a jar of 50 and 50 count is the order minimum, so the jar is the smallest unit. Metallics does make other sizes and quantities available by request if 50 of this size is not what you need.
7) Are nuts and washers included with the Metallics JG5HC62D bolts?
No. The jar contains 50 hex cap screws only. Order 5/8-11 coarse nuts and 5/8 flat or lock washers separately to complete the assembly.
