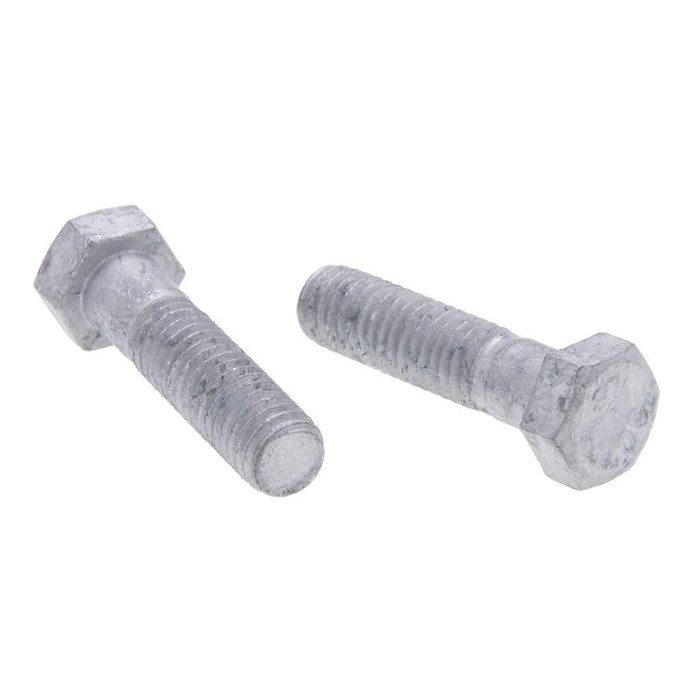

Bolts 5/8-11 X 2-3/4 Hxbt Pln-St (Jar 25)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 27/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.906 - 0.938 in.
- Fastener Height:
- 0.378 - 0.444
- Fastener Length:
- 2/3/04
- Fastener Width:
- 1.033 - 1.083
- Language Code:
- EN
- Order Minimum Imperial:
- 25
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.605 - 0.642 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 7.11 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Plain
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC72PL – Frequently Asked Questions
1) Will a plain steel hex bolt like the Metallics JBHC72PL rust outdoors?
Yes, it will. The JBHC72PL is plain finish steel with no zinc or galvanized coating, so it is meant for dry indoor or protected use, or for assemblies that get painted or coated after install. For exterior strut, outdoor enclosures, or damp mechanical rooms, specify a galvanized or zinc-plated 5/8-11 bolt instead.
2) What wrench or socket size fits this 5/8-11 hex bolt head?

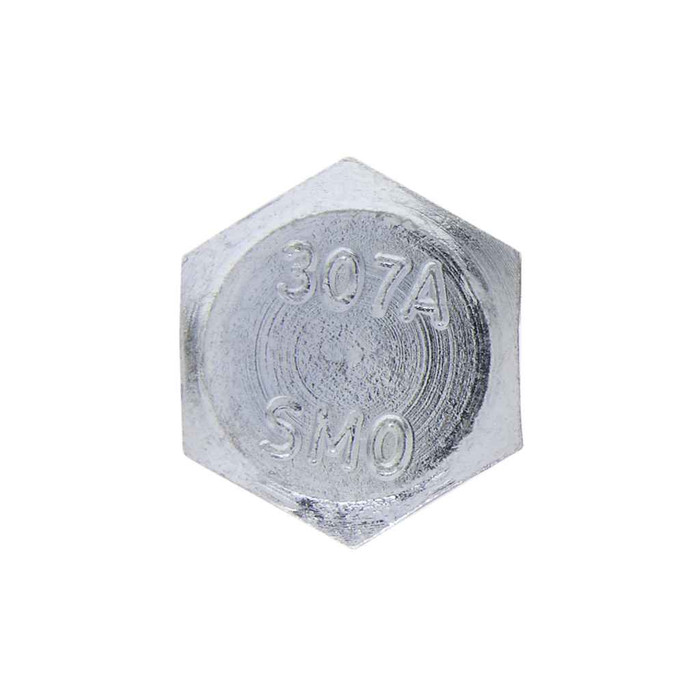

Head width across flats measures 0.906 to 0.938 inches, which is a 15/16 inch wrench or socket. Head height is 27/64 inch, so allow that much clearance under a tight overhead or against an adjacent flange.
3) How many bolts come in a jar of Metallics JBHC72PL?
They ship 25 to a jar, and 25 count is the order minimum. Total weight of the jar is 7.11 lbs. The jar pack is handy for a truck stock or a shop bin since the bolts stay contained rather than loose in a box.
4) How thick a connection will a 2-3/4 inch long 5/8 bolt clamp?
At 2-3/4 inches of overall length under the head, grip is whatever is left after your nut and washers. The shank measures 0.605 to 0.642 inches outside diameter, so it passes a standard 11/16 inch clearance hole. If you are stacking channel, backing plate, and a bracket beyond roughly 2 inches of material, step up to a longer 5/8-11 bolt.
5) Does the Metallics JBHC72PL bolt meet Buy American requirements on a government job?
The record flags it Buy American compliant and ARRA compliant, with China given as country of origin. On a federally funded project where the specification is strict about domestic melt and manufacture, verify against the exact clause in your contract before you submit it.
6) Do nuts and washers come with these Metallics hex bolts?
No. The jar holds hex bolts only, 25 of them. Order 5/8-11 hex nuts and 5/8 flat or lock washers separately to complete the assembly.
7) Can I get this 5/8-11 hex bolt in a different length or larger quantity?
Yes. The BHC and JBHC series from Metallics runs other sizes and pack quantities, available by request, so if you need the same 5/8-11 thread in a longer shank or a bulk box rather than a 25 count jar, it can be sourced.
