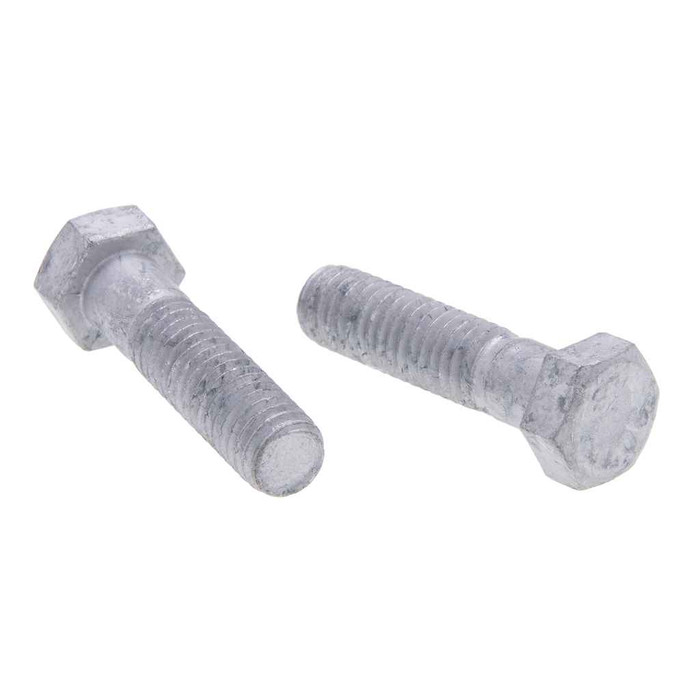

Bolts 5/8-11 X 3-1/2 Hxbt Pln-St (Jar 25)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 27/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.906 - 0.938 in.
- Fastener Height:
- 0.378 - 0.444
- Fastener Length:
- 3/1/02
- Fastener Width:
- 1.033 - 1.083
- Language Code:
- EN
- Order Minimum Imperial:
- 25
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.605 - 0.642 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 7.02 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Plain
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC75PL – Frequently Asked Questions
1) What thread does the Metallics JBHC75PL hex bolt take, and will a standard 5/8 nut fit it?
It is a 5/8-11 bolt, so 11 threads per inch, which is the standard coarse (UNC) pitch for 5/8 inch. Any 5/8-11 UNC nut or tapped hole mates with it. Thread form follows ASME B18.2.1-1996, and the measured outside diameter runs 0.605 to 0.642 inch.
2) Is the Metallics JBHC75PL bolt plated or will it rust outdoors?
Plain finish steel, no plating or coating. That makes it fine for dry interior work (strut, channel, equipment mounting, panel and rack framing) but it will corrode if exposed to weather or wash-down. For outdoor or damp locations, step up to a galvanized or zinc-plated hex bolt in the same 5/8-11 x 3-1/2 size.
3) How many bolts come in a jar of Metallics JBHC75PL?
Twenty-five bolts per jar, and 25 count is the order minimum, so a jar is the smallest buy. The jar packaging keeps a single size together on the truck or in a gang box instead of loose in a bulk box. Other sizes and quantities can be had by request.
4) Do these Metallics hex bolts qualify for a Buy American or ARRA federal job?
The JBHC75PL is flagged compliant for both ARRA and Buy American in the product record, with country of origin listed as China. If your specification requires domestically melted and manufactured fasteners, verify the flag against your contract language before you submit it on a federal or federally funded project.
5) Are nuts and washers included with the Metallics JBHC75PL bolts?
Bolts only. The jar holds 25 hex bolts and nothing else, so order 5/8-11 hex nuts and 5/8 flat or lock washers separately to complete the assembly.
6) How heavy is a jar of 25 of the 5/8-11 x 3-1/2 hex bolts?
The jar comes in at 7.02 lbs, and the container measures 4.5 x 4.5 x 7.25 inches. Worth knowing if you are staging several sizes on a cart or shipping a kit of fasteners to a site.
