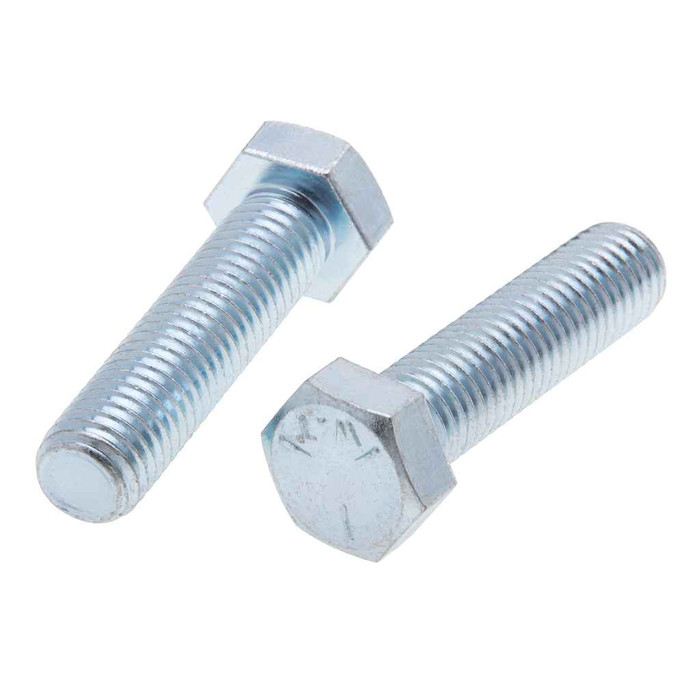

Metallics JG5HTB71 Bolts 5/8-11 X 3-3/4 G5 Hx Tap Blt S (Jar 25)

That's the intended use. The JG5HTB71 is a medium carbon steel cap screw, heat treated to Rockwell C19-30, with 105,000 psi minimum tensile and 105,000 psi minimum yield. Grade 5 is the normal choice for motor mounts, machinery bases, and automotive and truck repair work. If your drawing calls out Grade 8 or a higher proof load, Grade 5 is not a substitute.

The finish is zinc plating over steel, which handles indoor and sheltered outdoor service. It is not stainless. For continuous wet, coastal, or washdown exposure, go to 18-8 stainless or a hot dip galvanized bolt instead, since zinc plate is a thin sacrificial coating and will eventually rust through in standing moisture.

They ship as a jar of 25 count, and 25 is the order minimum, so the jar is the smallest buy. Metallics does offer other sizes and quantities in the G5HTB and JG5HTB series by request if you need a different length or a bulk box.

The JG5HTB71 is flagged compliant for both ARRA and Buy American in Metallics' data, while country of origin is listed as China. On a federally funded project, hand both facts to your compliance reviewer before you submit, because the two are read together under the specific clause in your contract.

A tap bolt like this 5/8-11 is threaded essentially all the way to the head, so it works in a tapped hole at whatever engagement depth you have, and it lets you clamp varying stack thicknesses with a nut. A partially threaded hex cap screw puts an unthreaded shank in the joint, which is better in shear and for precise grip length. For motor feet and machine frames where you are threading into cast or tapped holes, the full thread tap bolt is the usual call.

Medium carbon steel to AISI 1008-1026, heat treated after forming. That heat treatment is what takes it to Rockwell C19-30 and the Grade 5 strength numbers; an untreated low carbon bolt of the same size would be well below it.
