Metallics JG5HC120 Bolts 7/16-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.14
$3.86

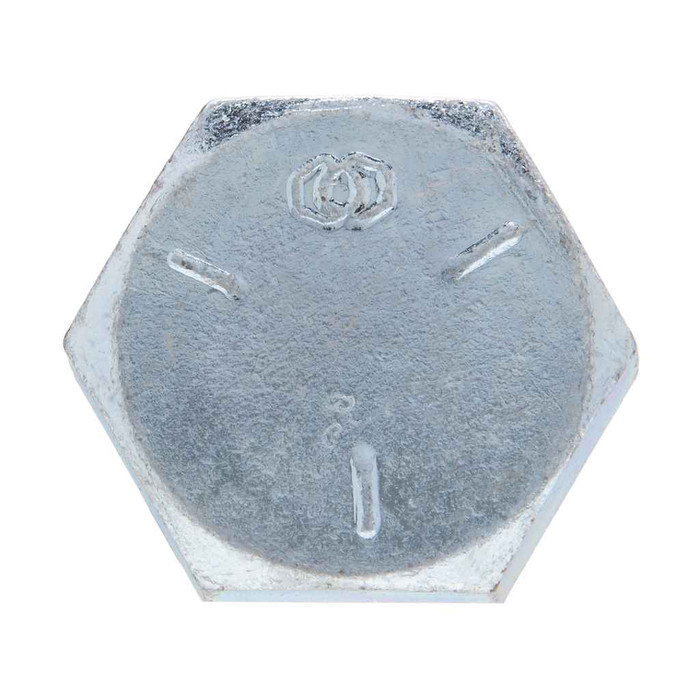

Metallics JG5HC120 Bolts 7/16-14 X 1-1/2 G5 Hxbt St-zn (Jar 50)

Metallics JG5HC120 Bolts 7/16-14 X 1-1/2 G5 Hxbt St-zn (Jar 50)

(No reviews yet) Write a Review

Model: JG5HC120
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.14
$3.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 7/16-14 X 1-1/2 G5 Hxbt St-zn (Jar 50)

  • Features

    • A cap screw made from medium carbon steel and heat-treated
    • Used to mount motor to machinery. Also popular in automotive and truck repair

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Height:
Sep-32 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.612 - 0.625 in.
Fastener Height:
0.272 - 0.291
Fastener Length:
1/1/02
Fastener Width:
0.698 - 0.722
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Grade:
5
Hardness:
Rockwell C19-30
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
Order Minimum Imperial:
50
Order Minimum Uom Imperial:
EA
Outside Diameter:
0.4305 - 0.4375 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2159 g
Product Width:
88.9 MM
Sub Division:
Electrical-E H2
Tensile Strength:
105000 psi minimum
Thread Per Inch:
14
Thread Standard:
ASME B18.2.1-2012
Voltage Rating:
Zinc Chromate
Wrenching Height:
0.195
Yield Strength:
105000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
G5HC and JG5HC
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JG5HC120 – Frequently Asked Questions

1) What thread does the Metallics JG5HC120 hex bolt use, and will a standard 7/16-14 nut thread onto it?
It's a 7/16-14 UNC thread, 14 threads per inch, made to ASME B18.2.1-2012. Any standard 7/16-14 coarse nut or tapped 7/16-14 hole will take it. Measured thread outside diameter runs 0.4305 to 0.4375 in.
2) Is a Grade 5 zinc hex bolt strong enough for mounting a motor to a machine base?
Yes. Grade 5 medium carbon steel, heat treated, with 105,000 psi minimum tensile and a Rockwell C19-30 hardness. Motor mounting to machinery is exactly what the G5HC/JG5HC bolts are used for, along with automotive and truck repair work.
3) Does the JG5HC120 bolt meet Buy American or ARRA requirements for a government job?
No. The JG5HC120 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your specification carries a domestic sourcing clause, this part will not clear it.
4) What wrench or socket size fits the head on this 7/16-14 Grade 5 hex bolt?
Head width across flats measures 0.612 to 0.625 in., so a 5/8 in. wrench or socket is the fit. Standard hex head, nothing unusual about the drive.
5) How many bolts come in a jar of Metallics JG5HC120, and can I buy just a few?
They ship as a jar of 50 pieces, and 50 each is the order minimum, so it's a full-jar purchase rather than loose count. The packed jar weighs 2159 g.
6) I need a different length or diameter in this Grade 5 hex bolt. Is that available?
The JG5HC120 covers 7/16-14 by 1-1/2 in., and other sizes and quantities in the G5HC and JG5HC series are available by request. If your grip length needs more than 1-1/2 in. through the joint plus nut engagement, ask for the longer size rather than forcing this one.
7) What steel is used in these Grade 5 hex cap screws?
Medium carbon steel in the AISI 1008 to 1026 range, heat treated to reach Grade 5 properties: 105,000 psi minimum yield and the same minimum on tensile. That's a cap screw, not a plain unhardened bolt, so it holds torque in a bolted joint rather than stretching.
