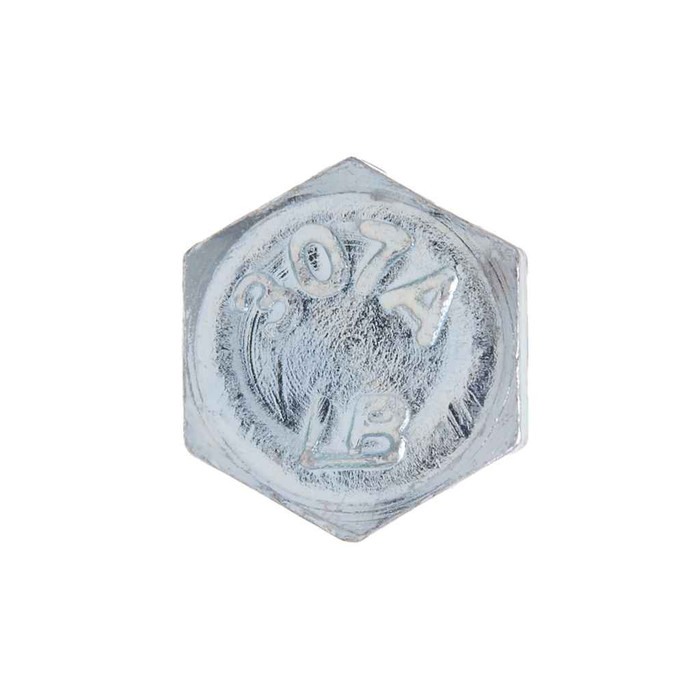

Bolts 7/8-9 X 2-3/4 Hxbt St-zn (Box 50)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 37/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 1.269 - 1.312 in.
- Fastener Height:
- 0.531 - 0.604
- Fastener Length:
- 2/3/04
- Fastener Width:
- 1.447 - 1.516
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_St-Zn_Galv.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.852 - 0.895 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Product Height:
- 6.13 in
- Product Length:
- 9 in
- Product Weight:
- 30.19 lbs
- Product Width:
- 9 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 9
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics BHC107 – Frequently Asked Questions
1) What thread does the Metallics BHC107 hex bolt have, and will a standard 7/8 inch nut fit it?
The BHC107 is a 7/8-9 hex bolt, meaning 9 threads per inch, which is the standard coarse (UNC) pitch for 7/8 inch diameter. It is made to ASME B18.2.1-1996, so any standard 7/8-9 UNC hex nut or tapped hole will thread onto it. Measured shank outside diameter runs 0.852 to 0.895 inch.
2) Does the Metallics BHC107 hex bolt meet Buy American and ARRA requirements for a public job?
Metallics lists the BHC107 as both ARRA compliant and Buy American compliant, which is what a government, school, or federally funded project submittal usually asks for. Country of origin on the part is China, so if your specification demands domestic melt and manufacture rather than the compliance designation, confirm which standard the spec is written to.
3) Is the Metallics BHC107 bolt corrosion protected, and can I use it outdoors?
It is steel with a zinc finish. Zinc plating handles indoor and sheltered mechanical and electrical work well, but it is not a hot-dip galvanized or stainless bolt, so continuous wet, coastal, or chemically aggressive exposure will shorten its life. For permanently exposed exterior structural anchoring, step up to hot-dip galvanized or stainless.
4) How many bolts come in a box of Metallics BHC107, and can I buy just a few?
They ship as a box of 50, and 50 is the order minimum, so that box is the smallest quantity. Metallics notes other sizes and quantities are available by request if 50 of this size is more than the job needs.
5) Do nuts and washers come with the Metallics BHC107 bolts?
No. The BHC107 is sold as bolts only, 50 to a box. Order 7/8-9 hex nuts and 7/8 inch flat and lock washers separately to complete the assembly.
6) What is the exact part number to order for the 7/8-9 x 2-3/4 Metallics zinc hex bolt?
Order Metallics BHC107. That is the manufacturer part number for the 7/8-9 x 2-3/4 steel zinc hex bolt in the BHC and JBHC series, supplied in a 50 count box.
