Metallics JMHTB12601 Bolts M12...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.73
$3.86

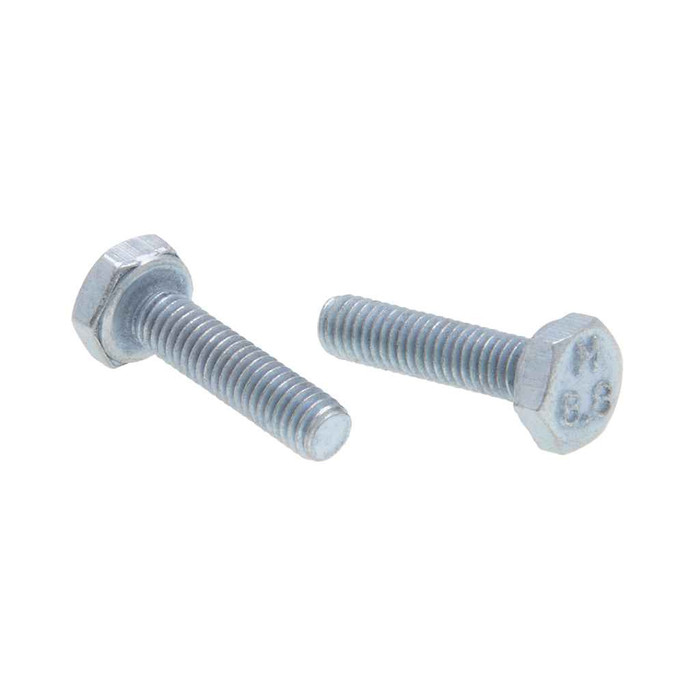

Metallics JMHTB12601 Bolts M12 x 60 C10.9 Hx Tap Blt St-zn (Jar 50)

Metallics JMHTB12601 Bolts M12 x 60 C10.9 Hx Tap Blt St-zn (Jar 50)

(No reviews yet) Write a Review

Model: JMHTB12601
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.73
$3.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts M12 x 60 C10.9 Hx Tap Blt St-zn (Jar 50)

  • Features

    • A Hex headed extrnally threaded fastener with washer-face beneath the head, a metric thread pitch, made from high alloy steel and heat-treated. The threads on the shank extended all of the way to directly beneath the head.
    • Used in automotive and fleet industries where greater tensile strength is required that can be achieved with a class 8.8 fastener

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Type:
Hex
Fastener Head Width:
18.67 - 19 in.
Fastener Height:
7.32 - 7.68
Fastener Length:
60mm
Fastener Width:
20.03
Grade:
10.9
Hardness:
Rockwell C32-39
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
9.78 - 10 IN
Pack Type:
Jar
Product Group:
Fasteners
Sub Division:
Electrical-E H2
Tensile Strength:
150800 psi minimum
Thread Direction:
Right Hand
Thread Pitch:
1.25
Thread Type:
UNC
Yield Strength:
136300 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
MHTB and JMHTB
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JMHTB12601 – Frequently Asked Questions

1) What thread size and pitch is the Metallics JMHTB12601 M12 bolt?
It is an M12 metric thread with a 1.25 mm pitch, right hand. That's the fine-ish M12 x 1.25 pitch, not the coarse M12 x 1.75, so a nut or tapped hole cut for coarse M12 will not accept it. Shank length is 60 mm.
2) Can I use these M12 bolts on a Buy American or federally funded job?
No. The Metallics JMHTB12601 M12 x 60 tap bolt is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. For a project with domestic sourcing requirements you will need a fastener certified to that standard.
3) Is the M12 x 60 class 10.9 bolt threaded all the way to the head?
Yes, it is fully threaded. The threads on the shank run right up to directly beneath the head, and there is a washer face under the hex head. Fully threaded means you can set your grip anywhere along the 60 mm, which is useful when you are bolting through variable stack-ups of channel, brackets, and plate.
4) Is a zinc plated class 10.9 bolt OK for outdoor or wet locations?
The finish is zinc plating over steel, which handles indoor and sheltered conditions and incidental moisture. It is not a stainless or hot dip galvanized fastener, so for continuous exposure, washdown, or coastal service you want a hot dip galvanized or stainless bolt instead.
5) How are these M12 x 60 bolts packaged, and is there a minimum order?
They come packed 50 to a jar. The order minimum on record is 100 count, so plan on two jars as a base order. Other sizes and quantities are available by request.
6) What wrench or socket size fits the hex head on this Metallics M12 tap bolt?
It is a standard hex head bolt. A 19 mm socket is the size that matches an M12 hex head of these dimensions, and the recorded head width figure is 18.67 to 19. Allow clearance for a 19 mm socket wall if you are working inside a channel or a tight bracket pocket.
7) What is the exact Metallics part number for the M12 x 60 class 10.9 hex tap bolt in a 50 jar?
JMHTB12601, part of the Metallics MHTB and JMHTB tap bolt series. The J prefix denotes the jar pack of 50; the MHTB numbers in the same series cover bulk packs of the same bolt.
