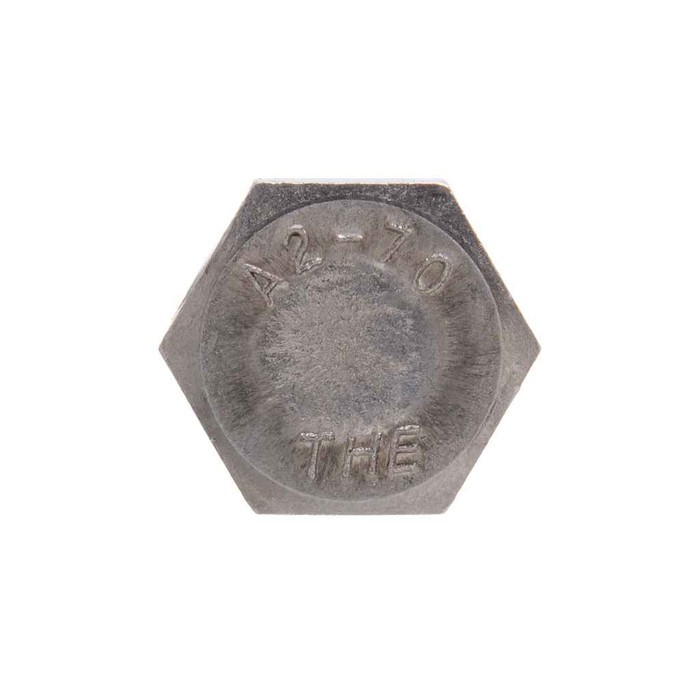

Bolts M6 X 25 Hxbt SS (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- DIN 933
- Division:
- Electrical H1
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 9.78 - 10 in.
- Fastener Height:
- 3.85 - 4.15
- Fastener Length:
- 25mm
- Fastener Width:
- 11.05
- Grade:
- A-2
- Language Code:
- EN
- Material Standard:
- ISO 3506
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-Hex_Hd_Metric_Bolt_18-8_and_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.7 in
- Product Length:
- 3 in
- Product Weight:
- 717 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Thread Pitch:
- 1
- Thread Standard:
- ISO 724|ISO 965-1
- Wrenching Height:
- 2.7
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- JMSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JMSBHC625 – Frequently Asked Questions
1) What thread pitch is the Metallics JMSBHC625 M6 hex bolt, and will it match standard M6 nuts?
It is M6 with a 1.0 mm pitch, which is the standard coarse metric thread. Threads are cut to ISO 724 and ISO 965-1, so it mates with any standard coarse M6 nut or tapped M6 hole. Fine-pitch M6 (0.75) hardware will not thread onto it.
2) Will these M6 stainless bolts hold up outdoors or in a damp mechanical room?
The bolts are 18-8 stainless, grade A2 under ISO 3506. That handles general outdoor, washdown, and damp interior service without rusting. For coastal salt spray or chlorinated pool environments, step up to 316 (A4) stainless instead.
3) What wrench or socket size do I need for the Metallics JMSBHC625 hex bolt?
It is a hex head bolt, and DIN 933 in M6 takes a 10 mm wrench across the flats. The listed head width tops out at 10, so a 10 mm socket or combination wrench fits.
4) How many M6 x 25 bolts come in a jar, and is there an order minimum?
They ship 100 pieces to a jar, and 100 count is the order minimum. Metallics lists other sizes and quantities as available by request.
5) Do these Metallics stainless bolts meet Buy American or ARRA requirements on a public project?
The JMSBHC625 is flagged compliant for both Buy American and ARRA. Country of origin on the part is China. On a federally funded job, check that your spec accepts the compliance flag as written, since origin and compliance are tracked separately here.
6) What size hole should I drill for the Metallics M6 x 25 hex bolt?
For a clearance hole, M6 normally takes a 6.5 mm bit (close fit) or 7 mm (normal fit). If you are tapping instead of through-bolting, drill 5.0 mm for M6 x 1.0 coarse thread.
7) How much does a jar of 100 of these M6 x 25 stainless bolts weigh?
The jar comes in at 717 g, and the container measures 3 in by 2.7 in by 76.2 mm. Useful if you are staging bin stock or figuring shelf space on a service truck.
