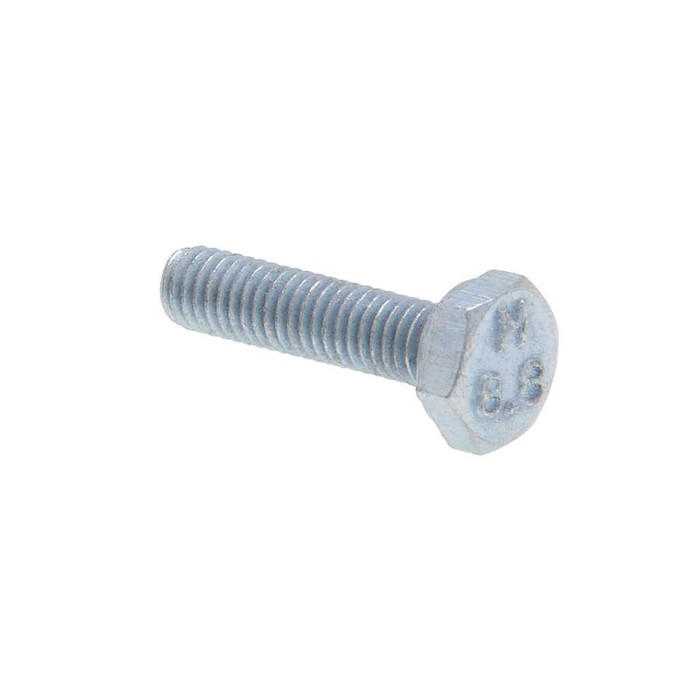

Metallics JMHTB635 Bolts M6 x 35 C8.8 Hx Tap Blt St-zn (Jar 100)

Metallics JMHTB635 Bolts M6 x 35 C8.8 Hx Tap Blt St-zn (Jar 100)

(No reviews yet) Write a Review

Model: JMHTB635
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.63
$0.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts M6 x 35 C8.8 Hx Tap Blt St-zn (Jar 100)

  • Features

    • Used to mount motor to machinery. Also popular in automotive and truck repair
    • A Hex headed extrnally threaded fastener with washer-face beneath the head, a metric thread pitch, made from medium carbon steel and heat-treated. The threads on the shank extended all of the way to directly beneath the head.

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Type:
Hex
Fastener Head Width:
9.78 - 10 in.
Fastener Height:
3.85 - 4.15
Fastener Length:
35mm
Fastener Width:
11.05
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Grade:
8.8
Hardness:
Rockwell C23-34
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Hd_Metric_Tap_Bolt_St-Zn.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Outside Diameter:
5.82 - 6 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
898 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
120350 psi minimum
Thread Direction:
Right Hand
Thread Pitch:
1
Thread Type:
UNC
Yield Strength:
95700 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
MHTB and JMHTB
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JMHTB635 – Frequently Asked Questions

1) What size and thread is the Metallics JMHTB635 hex tap bolt?
It's an M6 x 35mm hex tap bolt with a 1.0mm thread pitch, right-hand thread. The 35mm figure is the length under the head, and because it's a tap bolt the thread runs the full length of the shank right up to the head, so there's no unthreaded grip section to work around in a shallow tapped hole.
2) Is a Class 8.8 bolt strong enough to mount a motor to a frame?
Class 8.8 is a medium carbon steel, heat treated grade with 120,350 psi minimum tensile and 95,700 psi minimum yield, hardness Rockwell C23-34. Metallics calls this one out specifically for mounting motors to machinery, and it also sees a lot of use in automotive and truck repair. For general electrical, plumbing, heating and air conditioning work it's the usual structural-duty metric grade.
3) Are Metallics JMHTB635 bolts Buy American or ARRA compliant for a government job?
No. The JMHTB635 is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. If your federal, state or institutional contract carries domestic-sourcing language, this bolt won't satisfy it and you'll need a domestically produced fastener.
4) Will a zinc plated steel bolt hold up outdoors or in a damp mechanical room?
The JMHTB635 is medium carbon steel with a zinc finish. Zinc plating is a general-purpose indoor and sheltered-use coating, fine for mechanical rooms, equipment skids and panel work. For sustained wet exposure, washdown or coastal air, specify stainless or hot dip galvanized instead.
5) How many bolts come in a jar and can I buy fewer?
They ship as a jar of 100, and 100 in the jar is the order minimum. Metallics does offer other sizes and quantities in the MHTB and JMHTB series by request. The filled jar weighs 898 g.
6) Does this hex bolt have a washer face under the head, or do I need to add flat washers?
There's a washer face formed beneath the hex head, which gives a clean bearing surface against the part. That isn't a substitute for a flat washer on soft material, slotted holes or oversized clearance holes, where you still want a washer to spread the load. Nuts and washers aren't part of the jar, so order those separately.
7) Do M6 x 1.0 tap bolts work in an existing tapped hole or do I need to drill and tap?
These thread into an existing M6 x 1.0 tapped hole, which is the standard coarse pitch for M6, so they drop into most factory motor feet, enclosure bosses and equipment frames. If you're tapping fresh, M6 x 1.0 is cut with a 5mm drill. Right-hand thread only.
