Boshart 08SVT Quarter-Turn Tee...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$10.12

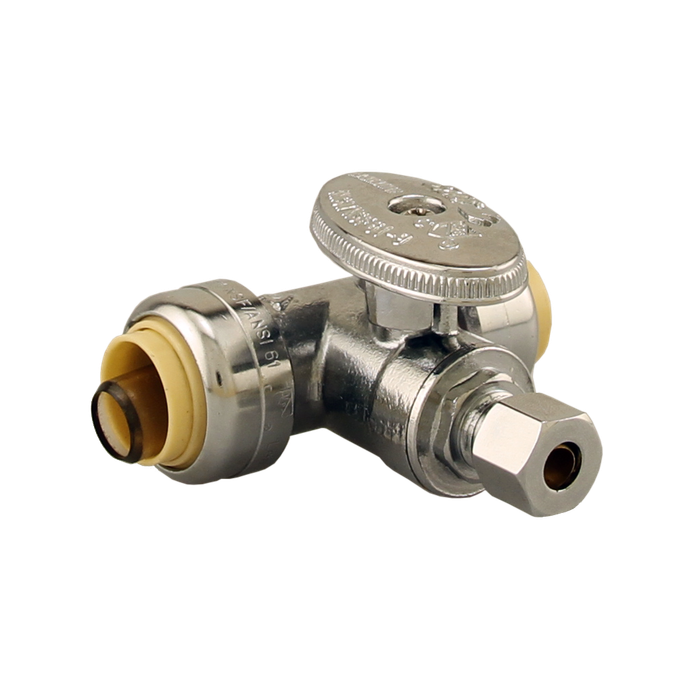

Boshart 08SVT Quarter-Turn Tee Supply Stop Valve, No-Lead

Boshart 08SVT Quarter-Turn Tee Supply Stop Valve, No-Lead

(No reviews yet) Write a Review

Model: 08SVT-05PF02CPN

In Stock (leaves warehouse same day if ordered before 3pm ET)

$10.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
"

Boshart 08SVT-05PFNL 1/2" Push-Fit x 3/8" Compression Quarter-Turn Tee Supply Valve, No-Lead

The Boshart 08SVT-05PFNL is a No-Lead quarter-turn tee supply valve built for rough-in and appliance shut-off applications where a plumber needs a reliable, low-pressure isolation point without soldering or threading. This supply stop connects with a 1/2" push-fit inlet on one end and a 3/8" compression outlet on the other, in a tee configuration that lets the installer branch off an existing line while maintaining independent shut-off control. Supply stops like this one are typically installed behind the wall or under a fixture, at the point where a water line feeds an appliance such as a dishwasher, ice maker, or toilet fill valve, and the quarter-turn handle gives a fast, positive open/closed indication that's easy to verify on a service call. Because it's manufactured to No-Lead standards, it's suited for potable water supply lines where lead-free components are required.

Key Features

  • Trade Size: 1/2" push-fit inlet x 3/8" compression outlet, sized for standard appliance and fixture branch connections.
  • Push-Fit Connection: The 1/2" end uses a push-fit connection for a fast, tool-free installation onto compatible tubing without soldering, clamping, or threading.
  • Compression Outlet: The 3/8" compression end accepts standard compression fittings for connecting supply tubing to the fixture or appliance.
  • Tee Configuration: The tee body allows a branch connection off a main supply run, useful where a single line needs to feed an additional fixture or appliance.
  • 1/4 Turn Operation: A quarter-turn handle provides quick, positive shut-off with a clear visual indication of open versus closed position, speeding up service and troubleshooting.
  • No-Lead Construction: Manufactured to No-Lead specifications for use on potable water supply lines.

Technical Specifications

  • Connection: 1/2" Push-Fit x 3/8" Compression
  • Configuration: Tee, 1/4 Turn
  • Material Compliance: No-Lead
  • Country of Origin: China
  • Packaging: 10 ea per pack

Typical Applications

  • Appliance Water Supply Shut-Off (Dishwashers, Ice Makers)
  • Toilet and Fixture Supply Line Branching
  • Residential and Commercial Rough-In Plumbing
  • Low-Pressure Supply Line Isolation Behind Walls or Under Fixtures
  • Renovation and Retrofit Supply Line Upgrades

Why Boshart?

Boshart supply stops are built to give plumbers and contractors a dependable, code-conscious option for isolating water supply lines at the appliance or fixture level. With a No-Lead push-fit and compression connection paired with a simple quarter-turn shut-off, the 08SVT-05PFNL is designed for straightforward installation and fast field service. Choose Boshart for rough-in supply components that hold up to the demands of everyday plumbing work.

"

Manufacturer Resources

Product Specs

Department:
Plumbing
list_batch:
BOS-20260923
Product Subgroup:
Fittings and Valves
Standards:
No-Lead
Product Type:
Supply Stop
Product Group:
Fitting
Product Weight:
0.36 lb

Boshart 08SVT-05PF02CPN – Frequently Asked Questions

1) What size connections does the Boshart 08SVT tee supply stop have?
The inlet is 1/2 inch push-fit, and the outlet is compression in one of two sizes: 3/8 inch (MPN 08SVT-05PFNL) or 1/4 inch (MPN 08SVT-05PF02CPN). The 3/8 inch outlet is the usual size for toilet and faucet supply risers; the 1/4 inch outlet is what an ice maker or humidifier line typically uses.
2) Do I need to solder or thread the 08SVT push-fit supply stop?
No. The 1/2 inch end is a push-fit connection that goes on tool-free, with no soldering, clamping, or threading. The other end is a standard compression outlet, so you tighten a compression nut and ferrule onto the supply tubing there. That makes it workable on a live-ish repair or a tight under-fixture space where a torch isn't practical.
3) Is this Boshart supply valve lead-free for potable water?
Yes, the 08SVT is built to No-Lead specification for potable water supply lines, which is what most jurisdictions require on any valve feeding a drinking water fixture.
4) Which outlet size do I order for a dishwasher or ice maker feed?
Match the outlet to the tubing the appliance uses. Ice makers and small humidifier lines commonly run 1/4 inch tubing, so the 08SVT-05PF02CPN with the 1/4 inch compression outlet is the fit. Dishwashers and toilet fill valves generally run 3/8 inch, which is the 08SVT-05PFNL. Both share the same 1/2 inch push-fit inlet, so the supply side of the decision doesn't change.
5) What is the point of a tee supply stop instead of a straight or angle stop?
The tee body lets you branch off a main supply run while keeping an independent shut-off on the branch. That's the situation where you're feeding a second fixture or appliance (a dishwasher or ice maker off an existing line) without cutting in a separate tee fitting and stop. If you only need one fixture fed from a stub out of the wall, a plain straight or angle stop is the simpler part.
6) Why choose a quarter-turn stop over a multi-turn one for rental units?
A quarter-turn handle gives a positive open or closed position you can read at a glance, which matters on a service call or a unit turn where you're verifying a dozen shut-offs quickly. Multi-turn stops give no visual indication and their washers tend to be what fails after years of sitting untouched. The 08SVT is a 1/4 turn design.
7) Can I use the 08SVT tee stop behind a wall or in a rough-in?
Yes, it's intended for rough-in and appliance shut-off work, including low-pressure supply isolation behind walls or under fixtures. If you bury it, keep in mind any shut-off needs to stay accessible for service, so plan an access panel or place it in a cabinet.
8) How many Boshart 08SVT supply stops come in a pack?
They're packaged 10 each per pack, which suits rough-in work or stocking a service van rather than a single replacement.
