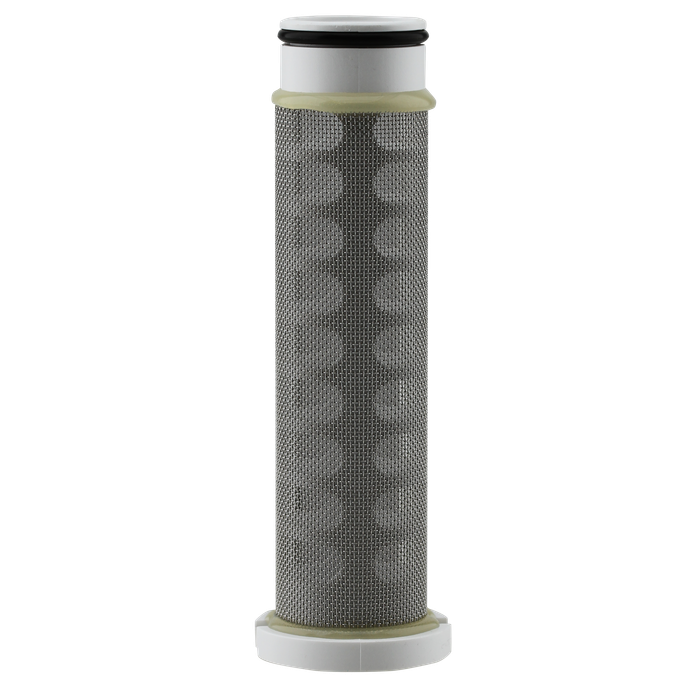

Boshart 14SF-FE10SM 1" Stainless Steel Sediment Filter Element

Boshart 14SF-FE10SM 1" Stainless Steel Sediment Filter Element

(No reviews yet) Write a Review

Model: 14SF-FE10SM100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Boshart 14SF-FE10SM 1" Stainless Steel Sediment Filter Element

The Boshart 14SF-FE10SM Series is a 1" replacement sediment filter element built for use in agriculture, industrial and commercial pre-treatment, whole house residential, and irrigation piping systems. This series uses a stainless steel screen, available in 60 mesh and 100 mesh options, designed to catch sand, scale, rust particles, and other sediment before it reaches downstream fixtures, valves, and equipment. It is manufactured as a replacement/service element intended to drop into compatible Boshart sediment filter and separator housings for routine maintenance and filter change-outs. Whether the finer 100 mesh screen or the coarser 60 mesh screen is selected, both share the same 1" nominal sizing and stainless steel construction, allowing installers to match the mesh rating to the sediment load and flow requirements of the application.

Key Features

  • Trade Size: 1" nominal filter element sized to fit compatible Boshart sediment filter/separator housings.
  • Mesh Options: Available in 60 mesh and 100 mesh stainless steel screens for capturing sediment, sand, scale, and rust particulate from the water stream, letting installers choose the screen fineness the application requires.
  • Durable Construction: Stainless steel screen material offers corrosion resistance for repeated cleaning and reuse in a filtration or separator housing.
  • Replacement Element: Designed as a service part for periodic filter maintenance, allowing the housing body to remain in place while the element is swapped or cleaned.
  • Multi-Application Use: Suitable for agriculture, industrial/commercial pre-treatment, whole house residential, and irrigation piping applications.
  • Series: Part of the Boshart 14SF-FE10SM sediment filter element series, spanning 60 mesh and 100 mesh screen options.

Technical Specifications

  • Country of Origin: Canada
  • Prop 65 Warning: No

Typical Applications

  • Agricultural Water Filtration Systems
  • Industrial and Commercial Pre-Treatment Piping
  • Whole House Residential Sediment Filtration
  • Irrigation Supply Lines
  • Routine Sediment Filter Maintenance and Replacement

Why Boshart?

Boshart manufactures the 14SF-FE10SM Series with a stainless steel screen, offered in 60 mesh and 100 mesh options, to give installers a durable, corrosion-resistant replacement element for sediment filter and separator housings across agricultural, industrial, commercial, residential, and irrigation applications. Keeping a compatible replacement element on hand in the mesh rating your system requires simplifies routine maintenance and helps keep pre-treatment filtration systems running as intended. Made in Canada, this 1" element is designed to be a straightforward, reliable service part for keeping sediment out of downstream piping, fixtures, and equipment.

Manufacturer Resources

Product Specs

Prop 65 Warning:
No
list_batch:
BOS-20260923
Product Type:
Filter Element
Series:
14SF-FE10SM
Department:
Plumbing
Product Subgroup:
Parts and Accessories
Product Material:
Stainless Steel
Product Size:
1"
Product Width:
1.550 inches
Product Group:
Rough-In and Supports
Product Length:
5.15 in

Boshart 14SF-FE10SM100 – Frequently Asked Questions

1) What is the difference between the 60 mesh and 100 mesh Boshart 14SF-FE10SM filter elements?
Both are the same 1 inch stainless steel screen element; the only difference is screen fineness. The 100 mesh has the finer openings and catches smaller sand, scale and rust particulate, which suits cleaner supplies or equipment that is sensitive to fines. The 60 mesh is coarser, so it passes more flow before loading up and is the usual pick where sediment load is heavy, such as ag and irrigation lines. Order code 14SF-FE10SM060 for 60 mesh, 14SF-FE10SM100 for 100 mesh.
2) Will the Boshart 14SF-FE10SM element fit my sediment filter housing?
It is a 1 inch nominal replacement element made to drop into compatible Boshart sediment filter and separator housings. The element measures 1.550 inches in width. If your housing is a different brand, match that housing's own element; Boshart housing compatibility is what this part is built around.
3) Can a stainless steel sediment filter element be cleaned and reused instead of replaced?
Yes. The stainless steel screen is corrosion resistant and intended for repeated cleaning and reuse in a filtration or separator housing, which is the main reason to run a screen element rather than a disposable cartridge. The housing body stays in place while the element is pulled, rinsed or swapped.
4) Do I get the housing with this part, or just the screen?
Just the screen. The 14SF-FE10SM is a service and replacement element only, sold for routine filter change-outs. If you are building a new installation you need the sediment filter or separator housing separately, then match this element to it by size and mesh.
5) What do I need to specify when ordering a 14SF-FE10SM replacement element?
Two things: the 1 inch nominal size, which is fixed on this series, and the mesh rating, which is the only choice. Mesh comes in 60 or 100. Stocking the mesh your system already runs keeps the pressure drop and filtration you sized the system for; switching mesh changes both.
6) Is this filter element suitable for whole house residential water, or only ag and irrigation?
Both. The 14SF-FE10SM element is used in whole house residential sediment filtration as well as agricultural systems, irrigation supply lines, and industrial or commercial pre-treatment piping. The mesh choice is what you match to the application, not the element itself.
7) Does the Boshart 14SF-FE10SM sediment element carry a Prop 65 warning, and where is it made?
No Prop 65 warning applies to this element, and it is made in Canada. That matters for institutional and government procurement packages that require country of origin and Prop 65 disclosure on submittals.
How fast can I get the Boshart 14SF-FE10SM100 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Boshart 14SF-FE10SM100 come with a warranty?
Absolutely. The Boshart 14SF-FE10SM100 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
