Boshart 14SFHK-S10SM100 1" PVC Sediment Separator with Stainless Steel 100 Mesh Screen

Boshart 14SFHK-S10SM100 1" PVC Sediment Separator with Stainless Steel 100 Mesh Screen

(No reviews yet) Write a Review

Model: 14SFHK-S10SM100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$60.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Boshart 14SFHK-S10SM100 1" PVC Sediment Separator with Stainless Steel 100 Mesh Screen

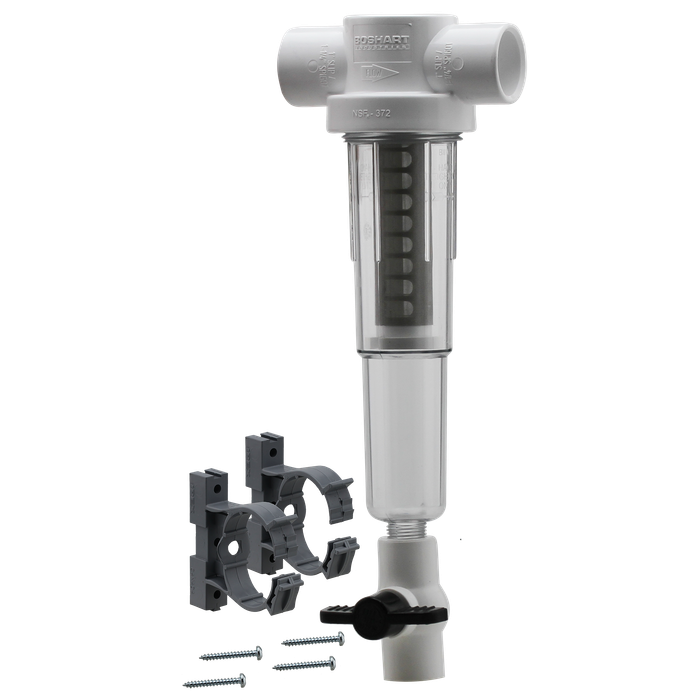

The Boshart 14SFHK-S10SM100 is a 1" sediment separator built with a PVC head and a clear polycarbonate bowl, designed to filter debris and particulate out of a water line before it reaches downstream equipment. It is fitted with a stainless steel 100 mesh screen element and a 1/2" MPT purge valve for flushing the unit without disassembly. This separator is compatible with both Schedule 40 and Schedule 80 PVC pipe and can be installed on either the suction or pressure side of a pump, making it a versatile rough-in component for agricultural, industrial/commercial pre-treatment, whole-house residential, and irrigation water systems. Each unit ships complete with the filter element, a mounting bracket or clamps, and the hardware needed for installation, so a contractor can set the unit in the line without sourcing additional parts.

Key Features

  • Trade Size: 1" connection sized for integration into Schedule 40 or Schedule 80 PVC piping systems.
  • Durable Construction: PVC head paired with a polycarbonate bowl for a lightweight, corrosion-resistant filter housing.
  • Filtration Element: Stainless steel 100 mesh screen captures sediment and particulate before it reaches downstream fixtures or equipment.
  • Purge Valve: Integrated 1/2" MPT purge valve allows the system to be flushed of accumulated debris without removing the bowl.
  • Tool-Free Bowl Access: Gripper ribs molded into the filter bowl allow it to be installed or removed by hand, with no tools required for routine maintenance.
  • Flexible Installation: Can be mounted on either the suction or pressure side of a pump, giving installers flexibility in system layout.
  • Complete Kit: Includes the filter element, mounting bracket or clamps, and all mounting hardware in the box.

Technical Specifications

  • Country of Origin: Canada
  • Packaging: 6 ea
  • Trade Size: 1"
  • Filter Media: Stainless steel, 100 mesh
  • Bowl Material: Polycarbonate
  • Head Material: PVC
  • Purge Valve Connection: 1/2" MPT

Typical Applications

  • Agricultural Water Systems
  • Industrial and Commercial Pre-Treatment
  • Whole House Residential Water Filtration
  • Irrigation Line Sediment Control
  • Pump Suction and Discharge Line Protection

Why Boshart?

Boshart builds this sediment separator with a PVC head and polycarbonate bowl construction that is compatible with standard Schedule 40 and Schedule 80 PVC pipe, giving installers a straightforward fit into existing rough-in plumbing. The gripper-rib bowl design and included 1/2" MPT purge valve simplify ongoing maintenance, while the stainless steel 100 mesh element provides the filtration needed to protect downstream fixtures and equipment from sediment. With the mounting hardware and bracket included, this unit is manufactured in Canada and packaged for straightforward installation on either side of a pump in agricultural, commercial, residential, or irrigation applications.

Manufacturer Resources

Product Specs

list_batch:
BOS-20260923
Product Type:
Sediment Separator
Configuration:
100 Mesh Screen
Department:
Plumbing
Product Subgroup:
Fittings
Product Material:
Polycarbonate
Product Size:
1"
Product Group:
Plumbing Fittings
Product Weight:
1.19 lb
Product Width:
4.97 in
Product Height:
3.12 in
Product Length:
13.83 in

Boshart 14SFHK-S10SM100 – Frequently Asked Questions

1) Will the Boshart 14SFHK-S10SM100 sediment separator fit 1 inch Schedule 40 PVC pipe?
Yes. The 14SFHK-S10SM100 is a 1 inch trade size separator and is compatible with both Schedule 40 and Schedule 80 PVC pipe, so it drops into standard 1 inch PVC rough-in without adapters. The head is PVC and the bowl is clear polycarbonate.
2) Can a sediment separator like this be installed on the suction side of a well pump, or does it have to go downstream?
Either works. The Boshart 1 inch PVC sediment separator can be mounted on the suction side or the pressure side of a pump. Ahead of the pump it keeps grit off the impeller; after the pump it protects fixtures and treatment equipment downstream. That flexibility is what lets you put it wherever the layout gives you room to pull the bowl.
3) Do I have to shut down and take the bowl apart every time it needs cleaning?
No. A 1/2 inch MPT purge valve is built into the separator so the accumulated debris can be flushed out without removing the bowl. When the screen does need to come out, the bowl has molded gripper ribs and turns off by hand, no filter wrench needed.
4) What do I need to order with the Boshart 14SFHK-S10SM100 to complete the install?
The kit ships with the stainless 100 mesh filter element, a mounting bracket or clamps, and the mounting hardware, so nothing extra is required to hang the unit. What you supply is the pipe side: 1 inch Schedule 40 or 80 PVC, solvent cement, and whatever you want to run off the 1/2 inch MPT purge port, typically a hose adapter or a drain line to carry the flush water away.
5) What size particles does a 100 mesh stainless screen catch, and is it the right choice for irrigation water?
The element in the 14SFHK-S10SM100 is a stainless steel 100 mesh screen, which is a fine screen aimed at sand, silt and fine particulate rather than coarse trash. That makes it suited to irrigation lines, agricultural water, whole-house residential filtration and industrial or commercial pre-treatment. If your source water carries heavy organic debris, expect to flush a 100 mesh element more often than a coarser screen.
6) Is a polycarbonate bowl separator okay for an outdoor irrigation line?
The clear polycarbonate bowl is what lets you see sediment load without opening anything, and paired with the PVC head it gives a corrosion-resistant housing. Bear in mind it is a clear plastic bowl, so on an exposed outdoor run keep it out of direct sun and protect it from freezing, same as any PVC filter housing.
7) How is the Boshart sediment separator packaged if I'm stocking multiple units?
The 1 inch PVC separator is packaged 6 each, which suits a property manager or MRO buyer standardizing across several well or irrigation systems. Each unit is its own complete kit with element and mounting hardware. Manufactured in Canada.
