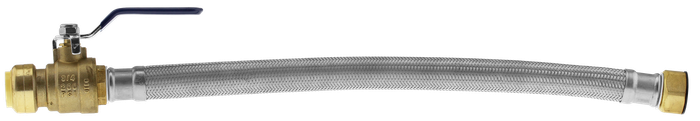

Boshart BPF-WHCV07-18 3/4" Push-Fit x 3/4" FPT Water Heater Connector Valve, No-Lead Brass
The Boshart BPF-WHCV07-18 is a No-Lead brass water heater connector valve featuring a 3/4" push-fit inlet and a 3/4" FPT outlet, built for fast, tool-free connections at the water heater. This push-fit style fitting is approved for potable water and hydronic heating system applications and can be installed both underground and behind walls, with or without access panels. It is well suited for wet, hazardous, and dry repair situations where an existing system is difficult to drain, making traditional soldering impractical. The push-fit connection accepts copper, CPVC, and PEX tubing in any combination, giving plumbers and contractors flexibility when tying into mixed piping systems during new construction, renovation, or emergency repair work.
Key Features
- Trade Size: 3/4" push-fit connection sized for 3/4" (0.875" O.D.) tube.
- Durable Construction: No-Lead brass body suitable for potable water and hydronic heating applications.
- Push-Fit Connection: Tool-free assembly with no soldering, flux, clamps, unions, or glue required.
- FPT Outlet: 3/4" female pipe thread connection for straightforward hookup to the water heater.
- Multi-Material Compatibility: Connects copper, CPVC, and PEX pipe in any combination.
- Rotatable After Assembly: Fitting can be rotated post-installation for easier positioning in tight spaces.
- Versatile Installation: Approved for underground use and behind walls, with or without access panels.
Technical Specifications
- Country of Origin: China
- Packaging: 5 ea
- Tube Size Range: 3/8" (0.5" O.D.), 3/4" (0.875" O.D.), 1" (1.125" O.D.)
Typical Applications
- Water Heater Connections in New and Existing Installations
- Residential and Commercial Potable Water Rough-In
- Hydronic Heating System Connections
- Behind-Wall and Underground Repairs Where Draining Is Difficult
- Transitions Between Copper, CPVC, and PEX Piping
- Renovation and Emergency Repair Work
Why Boshart?
Boshart's No-Lead brass push-fit fittings give plumbers a dependable, tool-free way to make watertight connections when soldering isn't practical. The push-fit design accommodates copper, CPVC, and PEX in any combination, and the rotatable fitting body helps installers work efficiently in tight, behind-the-wall spaces. Choose the Boshart BPF-WHCV07-18 for a reliable water heater connection that speeds up rough-in and repair work alike.
Manufacturer Resources
Product Specs
- list_batch:
- BOS-20260923
- Product Type:
- Water Heater Connector Valve
- Connection Type:
- Push-Fit
- Standards:
- No-Lead
- Department:
- Plumbing
- Product Subgroup:
- Fittings and Valves
- Product Material:
- Brass
- Product Size:
- 3/4"
- Product Group:
- Fitting
- Product Weight:
- 1.12 lb
- Product Length:
- 18.4 in
- Product Height:
- 1.5 in
- Product Width:
- 3.4 in
Boshart BPF-WHCV07-18 – Frequently Asked Questions
1) Will the Boshart BPF-WHCV07-18 push-fit valve connect to copper, CPVC and PEX?
Yes. The push-fit inlet on the BPF-WHCV07-18 accepts copper, CPVC and PEX tubing in any combination, so you can tie a PEX run into an existing copper stub without an adapter. The inlet is sized for 3/4 inch tube at 0.875 inch O.D.
2) What are the two connection ends on this Boshart water heater connector valve?
One end is a 3/4 inch push-fit socket for tube, the other is a 3/4 inch FPT (female pipe thread) outlet that threads onto the water heater nipple. So the tube side needs no tools and the heater side needs a male thread plus sealant or tape.
3) Can a push-fit water heater valve be installed behind a wall or underground?
The Boshart BPF-WHCV07-18 is approved for underground burial and for behind-wall installation, with or without an access panel. That is not true of every push-fit fitting, so it is the reason a lot of contractors pick this one for a concealed repair.
4) Is the Boshart BPF-WHCV07-18 safe for potable water?
The body is No-Lead brass and the valve is approved for potable water as well as hydronic heating systems, so it is usable on both the domestic hot water side and a boiler loop.
5) Do I need to drain the system or solder to install this water heater valve?
No soldering, flux, clamps, unions or glue. The push-fit end pushes onto prepared tube, which is why it gets used on wet, hazardous and dry repairs where an existing system is hard to drain and a torch is impractical.
6) Can the valve be turned after it is pushed on to line up with the heater?
Yes, the fitting rotates after assembly. In a tight closet you can push it home first and then spin the body so the handle and the FPT outlet land where you need them.
7) How is this Boshart push-fit water heater valve packaged for stocking?
It is packed 5 each, which suits a service truck or an MRO crib holding a couple of packs for emergency heater swaps. The manufacturer part number to order against is BPF-WHCV07-18.
