Boshart PMB Universal Pump Mounting Bracket Kit

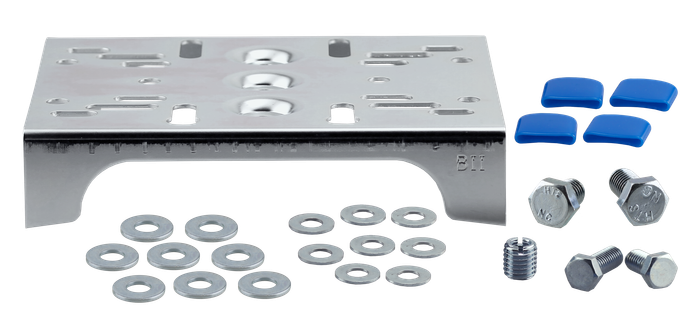

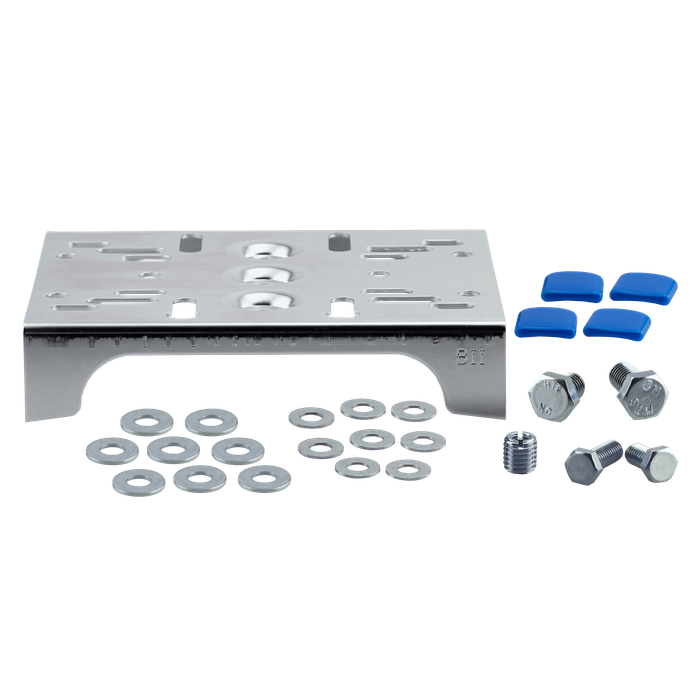

The Boshart PMB Universal Pump Mounting Bracket Kit gives plumbing and well contractors a complete zinc-plated pump stand bracket assembly with all the hardware needed for a secure rough-in installation. This kit includes a zinc-plated pump stand bracket, mounting bolts, flat washers, a threaded insert, and blue plastic leg protectors, all packaged together so installers do not need to source individual fasteners on the job. Manufactured in Taiwan and packaged 20 each, this bracket kit is built for submersible or jet pump mounting applications where a stable, corrosion-resistant support base is required behind the wall or in a mechanical room.
Key Features
- Zinc-Plated Pump Stand Bracket: Corrosion-resistant zinc-plated construction provides a durable mounting platform for pump installation.
- Complete Hardware Set: Includes (1) 3/8" - 16NC x 1" zinc plated bolt, (1) 3/8" - 16NC x 3/4" zinc plated bolt, (1) 1/2" - 13NC x 1" long zinc plated hex bolt, and (1) 1/2" - 13NC x 3/4" long zinc plated hex bolt for secure fastening.
- Washers Included: (8) 3/8" zinc plated flat washers and (6) 1/2" zinc plated flat washers are included to distribute load and protect mounting surfaces.
- Threaded Insert: (1) 5/8" - 11NC (external) x 3/8" - 16NC (internal) insert allows the bracket to adapt to different bolt thread configurations.
- Leg Protectors: (4) blue plastic leg protectors help prevent scratching or marring of the mounting surface and reduce vibration transfer at the bracket legs.
- All-in-One Kit: Every fastener, washer, insert, and bracket component needed for the mounting job is included in one package, reducing trips to the supply house.
Technical Specifications
- Country of Origin: Taiwan
- Packaging: 20 ea
- Bolt Set: 3/8" - 16NC x 1", 3/8" - 16NC x 3/4", 1/2" - 13NC x 1", 1/2" - 13NC x 3/4" zinc plated bolts
- Washer Set: (8) 3/8" and (6) 1/2" zinc plated flat washers
- Insert: 5/8" - 11NC (external) x 3/8" - 16NC (internal)
- Leg Protectors: (4) blue plastic
Typical Applications
- Submersible and Jet Pump Mounting
- Well and Pressure System Installations
- Residential and Commercial Mechanical Rooms
- Pump Replacement and Retrofit Projects
Why Boshart?
Boshart supplies the Universal Pump Mounting Bracket Kit as a complete, ready-to-install hardware package, with zinc-plated components selected for corrosion resistance and long-term durability in mechanical room and well installation environments. Providing every bolt, washer, insert, and leg protector in a single packaged kit helps contractors keep pump mounting jobs organized and efficient on site.
Manufacturer Resources
Product Specs
- list_batch:
- BOS-20260923
- Product Type:
- Pump Mounting Bracket
- Product Finish:
- Zinc-Plated
- Department:
- Plumbing
- Product Subgroup:
- Hangers and Supports
- Product Material:
- Zinc
- Product Group:
- Fitting
- Product Height:
- 2.2 in
- Product Length:
- 9.5 in
- Product Width:
- 7.9 in
- Product Weight:
- 2.19 lb
Boshart PMB – Frequently Asked Questions
1) What hardware comes with the Boshart PMB pump mounting bracket kit?
The PMB kit ships as a complete fastener package: the zinc-plated pump stand bracket, four hex bolts (3/8"-16NC x 1", 3/8"-16NC x 3/4", 1/2"-13NC x 1", 1/2"-13NC x 3/4"), eight 3/8" flat washers, six 1/2" flat washers, one 5/8"-11NC external x 3/8"-16NC internal threaded insert, and four blue plastic leg protectors. Nothing else needs to be picked up from the counter to bolt the pump down.
2) Will the Boshart PMB bracket work with my pump's bolt pattern if it uses 1/2 inch studs instead of 3/8?
Both thread sizes are covered. The kit includes 1/2"-13NC bolts in 3/4" and 1" lengths plus six 1/2" washers, and 3/8"-16NC bolts in the same two lengths with eight 3/8" washers. If the pump foot is tapped 3/8"-16NC but the bracket takes a larger bolt, the included 5/8"-11NC external by 3/8"-16NC internal insert adapts between the two thread configurations.
3) Can the Boshart PMB bracket be used for both jet pumps and submersible pump systems?
Yes. It is intended for submersible and jet pump mounting, well and pressure system installations, and pump replacement or retrofit work in residential and commercial mechanical rooms. It is a support base, so what governs the fit is whether the pump's mounting feet line up with the bracket and match the 3/8" or 1/2" hardware supplied.
4) Is a zinc-plated pump bracket suitable for a damp well house or basement mechanical room?
Zinc plating is the finish on the PMB bracket and on every bolt and washer in the kit, which gives corrosion resistance for the damp conditions typical of well houses and mechanical rooms. It is a plated carbon-steel type product rather than stainless, so for continuously wet or standing-water locations a stainless support is the better choice.
5) Do I need to order washers or bolts separately when replacing a pump on a Boshart PMB bracket?
No. Each kit carries its own fasteners, 14 washers total (eight 3/8" and six 1/2") and four bolts across the two thread sizes, plus the thread adapter insert. On a retrofit that means you can swap the pump and reuse fresh plated hardware out of the same box instead of matching whatever was left on the old stand.
6) What are the blue plastic pieces in the Boshart pump bracket kit for?
Those are the four leg protectors. They cap the bracket legs so the bracket does not scratch or mar a finished floor or pad, and they take some of the vibration transfer from a running pump out of the mounting surface.
7) How is the Boshart PMB pump mounting bracket packaged for a distributor order?
The PMB is packaged 20 each, so it is bought as a case rather than a single kit, which suits a plumbing wholesaler or a well contractor stocking a truck. There is one model on the part, MPN PMB, and it is made in Taiwan.
