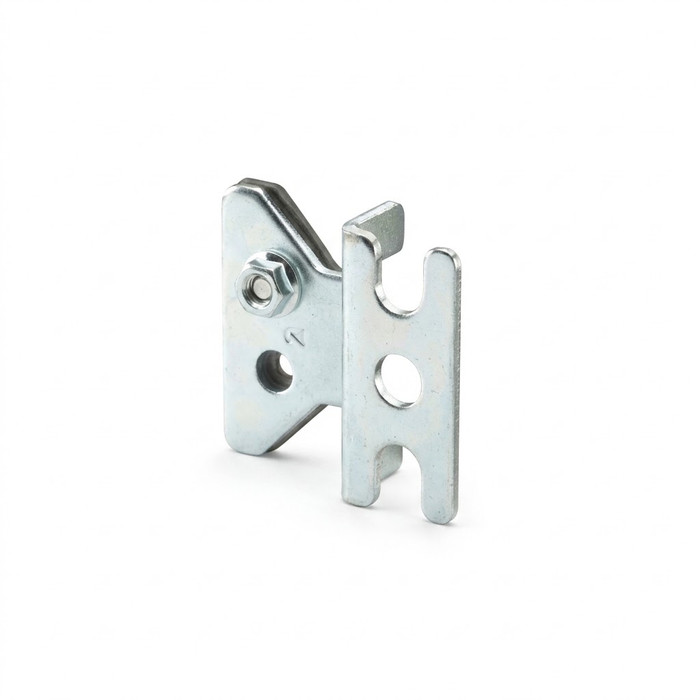

Rittal 2508100 Zinc-Plated Wall Mounting Bracket, Carbon Steel

Rittal 2508100 Zinc-Plated Wall Mounting Bracket, Carbon Steel

The Rittal 2508100 wall mounting bracket is purpose-built for external mounting of Rittal enclosure housings. To install it, simply insert the expandable dowel into the housing hole from the outside, then screw-fasten the wall bracket from the outside for a secure, tool-friendly installation. Constructed from carbon steel with a zinc-plated surface finish, the bracket positions the enclosure at a consistent 15 mm wall distance and arrives pre-fitted with a seal and expandable dowel, reducing on-site assembly steps. It ships in packaging units of 4 pc(s), with each packaging unit weighing 0.304 kg, making it easy for electrical contractors and panel builders to stock and deploy across multiple enclosure installations.

Key Features

• Wall Distance: Maintains a 15 mm standoff between the enclosure housing and the mounting wall, supporting proper airflow and clearance around the enclosure.
• Durable Construction: Solid carbon steel body resists bending and deformation under the load of a mounted enclosure housing during external installation.
• Zinc-Plated Finish: The zinc-plated surface finish provides corrosion resistance, helping the bracket hold up to industrial environments and long-term outdoor exposure.
• External Mounting Design: Insert the expandable dowel into the housing hole from the outside, then screw down the wall bracket from the outside, so the entire installation is completed without accessing the interior of the housing.
• Pre-Fitted Hardware: Each wall bracket ships pre-fitted with a seal and an expandable dowel, so installers spend less time gathering separate hardware components before mounting.
• Packaging Unit: Supplied 4 pc(s) per packaging unit, at 0.304 kg per packaging unit, for efficient warehouse stocking and job-site distribution.

Technical Specifications

• Surface Finish: Zinc-plated
• Material: Carbon steel
• Wall Distance: 15 mm
• Packaging Unit: 4 pc(s)
• Weight per Packaging Unit: 0.304 kg

Typical Applications

• External Wall Mounting of Rittal Enclosure Housings
• Industrial and Commercial Enclosure Installations
• Retrofit Mounting on Existing Enclosure Systems
• New Construction Enclosure Wall-Mount Projects
• Panel-Building and Electrical Contractor Stocking Programs

Why Rittal?

Rittal engineers this wall mounting bracket from corrosion-resistant, zinc-plated carbon steel and pre-fits it with a seal and expandable dowel, giving installers a straightforward, dependable way to externally mount enclosure housings at a consistent 15 mm wall distance. The simple insert-and-screw-fasten design means contractors can complete mounting entirely from outside the housing, without opening the enclosure. It's a practical, low-fuss accessory for professionals who rely on Rittal enclosure systems and expect hardware that matches the same build quality as the housings it supports.
