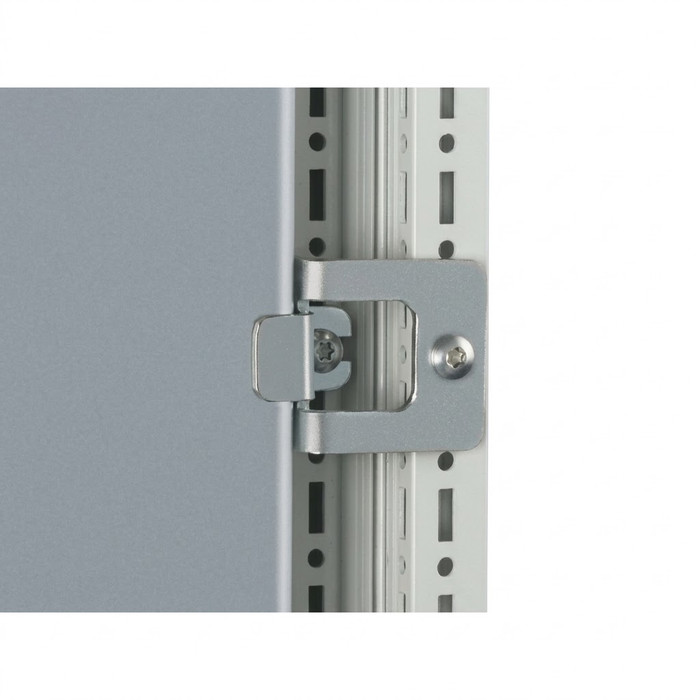

Rittal 8800050 Mounting Plate Attachment, Zinc-Plated Carbon Steel

Rittal 8800050 Mounting Plate Attachment, Zinc-Plated Carbon Steel

(No reviews yet) Write a Review

Model: 8800050

In Stock (leaves warehouse same day if ordered before 3pm ET)

$74.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal Mounting Plate Attachment, Zinc-Plated Carbon Steel

The Rittal Mounting Plate Attachment, Zinc-Plated Carbon Steel, is designed for additional clamping and to help reduce potential vibration in an enclosure mounting plate. Built from carbon steel with a zinc-plated finish for corrosion resistance, this attachment is selected according to mounting position, installation type, and enclosure design, giving installers flexibility across a range of enclosure configurations. It supports side, rear, or flush-with-enclosure-frame installation, so it can be matched to the specific layout of the mounting plate and enclosure being assembled. The attachment slides over the plate at the side and is secured with screws, and the mounting plate may also be drilled and screw-fastened at the rear C-edge for a more permanent connection. Assembly components are included with each unit, and product ships 10 pieces per packaging unit at 0.92 kg per packaging unit, making it easy to stock for repeat enclosure builds.

Key Features

  • Durable Construction: Carbon steel body with a zinc-plated finish resists corrosion and holds up to repeated handling during enclosure assembly.
  • Installation Options: Engineered for side, rear, or flush-with-enclosure-frame mounting so it can be matched to the mounting position and installation type required.
  • Additional Clamping: Adds clamping force to the mounting plate and helps reduce potential vibration once the enclosure is in service.
  • Slide-On Fit: Slides over the mounting plate at the side and is secured in place with screws for a straightforward installation.
  • Rear C-Edge Fastening: The mounting plate may also be drilled and screw-fastened at the rear C-edge when a more permanent attachment is required.
  • Selection Guidance: Select the correct attachment according to mounting position, installation type, and enclosure to ensure proper fit.
  • Supply Includes: Assembly components are included, so no separate hardware purchase is needed to complete installation.
  • Packaging: Supplied 10 pieces per packaging unit at 0.92 kg per packaging unit for efficient stocking.

Technical Specifications

  • Surface Finish: Zinc-plated
  • Material: Carbon steel
  • Installation Options: Side, rear, flush with enclosure frame
  • Packaging Unit: 10 pc(s)
  • Weight/Packaging Unit: 0.92 kg

Typical Applications

  • Electrical Enclosure Assembly
  • Mounting Plate Installation and Retention
  • Industrial Control Panel Construction
  • Vibration Reduction in Enclosure Systems
  • New Construction and Enclosure Retrofit Projects

Why Rittal?

Rittal engineers enclosure hardware from carbon steel with a zinc-plated finish for dependable, corrosion-resistant performance in demanding electrical environments. This mounting plate attachment is built to add secure clamping and reduce vibration, with side, rear, and flush mounting options and included assembly components that support consistent, professional-grade enclosure assembly.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Mounting Plate Attachment
Product Finish:
Zinc-Plated
Product Material:
Carbon Steel
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosure Accessories

Rittal 8800050 – Frequently Asked Questions

1) What does the Rittal 8800050 mounting plate attachment actually do in an enclosure?
The Rittal 8800050 is a clamping piece for an enclosure mounting plate. It adds clamping force where the plate meets the enclosure frame and helps cut down vibration once the panel is in service. It is not a mounting plate itself and not a standoff, it is the hardware that holds and steadies the plate.
2) How does the 8800050 attach to the mounting plate, and do I need to drill anything?
It slides over the mounting plate at the side and is secured with screws, so no drilling is needed for the standard installation. If you want a more permanent connection, the plate can be drilled and screw-fastened at the rear C-edge instead.
3) Can the 8800050 be used for rear-mounted plates, or only side mounting?
Side, rear, and flush-with-enclosure-frame installation are all supported. Which one you use depends on the mounting position and installation type your enclosure layout calls for, so pick the attachment to match the plate position rather than assuming one fits every build.
4) Do I have to buy screws separately for the Rittal 8800050?
No. Assembly components are included with each unit of the 8800050, so you can install it without sourcing separate fasteners.
5) Will the Rittal 8800050 hold up in a damp or industrial panel environment?
The body is carbon steel with a zinc-plated finish, which gives it corrosion resistance for indoor industrial panel work and stands up to repeated handling during enclosure assembly. For continuously wet, washdown, or chemically aggressive locations, stainless enclosure hardware is the usual specification.
6) How many pieces come in a pack of Rittal 8800050 attachments?
The 8800050 ships 10 pieces per packaging unit, at 0.92 kg per packaging unit. For panel shops building repeat enclosures, that is a practical stocking quantity since a single plate typically takes several attachments depending on plate size and mounting position.
7) Is the 8800050 suitable for retrofitting an existing enclosure, or only new builds?
Both. Because it slides onto the plate at the side and screws down, it can be added to an existing assembly without reworking the plate, and the rear C-edge drilling option is there when you want it permanently fixed. Typical uses run from new construction and control panel builds to enclosure retrofit work.
8) What part number do I order for the Rittal mounting plate attachment in zinc-plated steel?
Order Rittal 8800050. That is the manufacturer part number for the zinc-plated carbon steel mounting plate attachment, and there is a single model, so there are no finish or size options to specify on the order.
