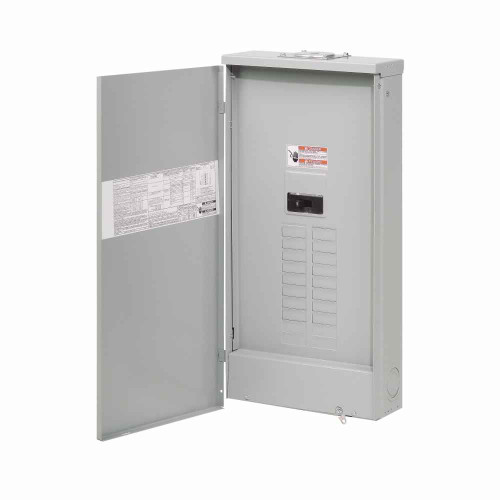

BR style 1-inch loadcenter, main circuit breaker, feed-through lug, 150A, single-phase, 16-pole, 16 circuits, 8 spaces, 120/240V, #2/0-300 kcmil Cu/Al at 60°C or 75°C, NEMA 3R enclosure, c3r box size
Manufacturer Resources
Product Specs
- Amperage Rating:
- 150 A
- Box Size:
- C3R
- Bus Material:
- Aluminum
- Catalog Notes:
- Suitable for service entrance only
- Certifications:
- UL 67
- Cover:
- Cover included
- Enclosure:
- NEMA 3R
- Enclosure Material:
- Metallic
- Interrupt Rating:
- 25 kAIC
- Main Circuit Breaker:
- BWH
- Number Of Circuits:
- 16
- Number Of Spaces:
- 8
- Number Of Wires:
- 3
- Phase:
- Single-phase
- Product Height:
- 5.5 in
- Product Length Depth:
- 26.5 in
- Product Weight:
- 30 lb
- Product Width:
- 15.5 in
- Special Features:
- Feed-through lug
- Type:
- Main circuit breaker
- Voltage Rating:
- 120/240 V
- Wire Size:
- #2/0 AWG-300 kcmil Cu/Al
- Product Group:
- Electrical
