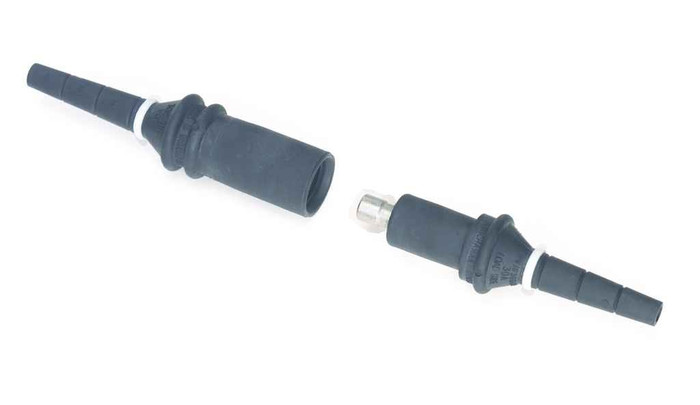

Ideal Industries 20U Breakaway Streetlight Connector Kit In-Line Non-Fused Neutral Safety System

Professional streetlight safety connector with impact separation technology

The Ideal Industries 20U Breakaway Streetlight Connector Kit delivers professional-grade safety protection for streetlight installations with advanced breakaway technology. This in-line non-fused neutral connector system safely separates upon impact without breaking wires, ensuring reliable streetlight operation while protecting infrastructure and personnel from damage during vehicle collisions or other impact events.

Professional Features & Benefits

  • Impact Safety Design: Safely separates upon impact without breaking wires, protecting both electrical infrastructure and reducing repair costs while maintaining system integrity.
  • Spring Loaded Contact System: Compensates for thermal expansion to maintain connection integrity, ensuring reliable performance across temperature variations and seasonal changes.
  • In-Line Non-Fused Configuration: Provides neutral connection management without additional fusing requirements, simplifying installation while maintaining electrical safety standards.
  • Quick Installation Process: Installs in five minutes or less with standard tools, reducing labor costs and minimizing service interruptions during streetlight maintenance.
  • Standard Tool Compatibility: Requires only knife, wire stripper, hex tool and crimp tool - no special equipment necessary, making field installation and service efficient.
  • Breakaway Technology: Advanced spring-loaded mechanism ensures controlled separation during impact events while preserving wire integrity for faster restoration.

Technical Specifications

  • Deparetment: Electrical
  • Product Group: Outlets
  • Product Subgroup: Switches & Receptacles

Professional Applications

  • Municipal Streetlight Systems
  • Highway and Roadway Lighting
  • Parking Lot Illumination
  • Commercial Outdoor Lighting
  • Traffic Safety Lighting
  • Public Infrastructure Projects
  • Emergency Services Lighting

Why Choose Ideal Industries Quality?

Ideal Industries delivers proven reliability in electrical connectivity solutions with professional-grade breakaway technology designed for demanding streetlight applications. The spring-loaded contact system and impact separation design ensure long-term performance while simplifying installation and maintenance procedures for electrical professionals.

Manufacturer Resources

Product Specs

Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles

Ideal Industries 20U – Frequently Asked Questions

1) What does the Ideal 20U breakaway streetlight connector actually do in a vehicle strike?
The 20U is built to come apart under impact instead of tearing the conductors. When a pole gets hit, the connector separates at the joint and leaves the wire intact, so restoration is a matter of reconnecting rather than pulling and splicing new cable. That is the whole point of a breakaway connector in a pole base.
2) Is the Ideal 20U fused or non-fused, and which conductor is it for?
Non-fused, in-line, and it is the neutral connector. If you need overcurrent protection on the hot leg in the pole base, the 20U does not provide it, you would pair it with a fused breakaway on the line side. Order the 20U for the neutral run.
3) What tools does a crew need to install an Ideal 20U streetlight connector in the field?
Knife, wire stripper, hex tool and crimp tool. Nothing proprietary, nothing that has to come off the truck special. Ideal rates the install at five minutes or less per connector, which matters when you are working a lane closure or a bucket lift on a live roadway.
4) Will the connection loosen over seasonal temperature swings in an outdoor pole base?
The 20U uses spring loaded contacts specifically to take up thermal expansion and contraction, so the contact pressure stays on the conductor as the metal moves through hot and cold cycles. That is the failure mode a plain compression splice tends to develop in an unheated pole base.
5) Where is a breakaway connector like the Ideal 20U typically required or used?
Municipal streetlight systems, highway and roadway lighting, parking lot and commercial outdoor lighting, traffic safety lighting, and public infrastructure work. Anywhere a lighting pole sits close enough to traffic that a strike is a realistic event, agencies specify breakaway connectors in the handhole so the pole can shear without damaging the feeder.
6) Is the Ideal 20U sold as a complete kit or do I buy the halves separately?
It ships as a kit under a single part number, 20U, with one model offered. You are ordering the connector assembly, not a line half and a load half billed separately.
