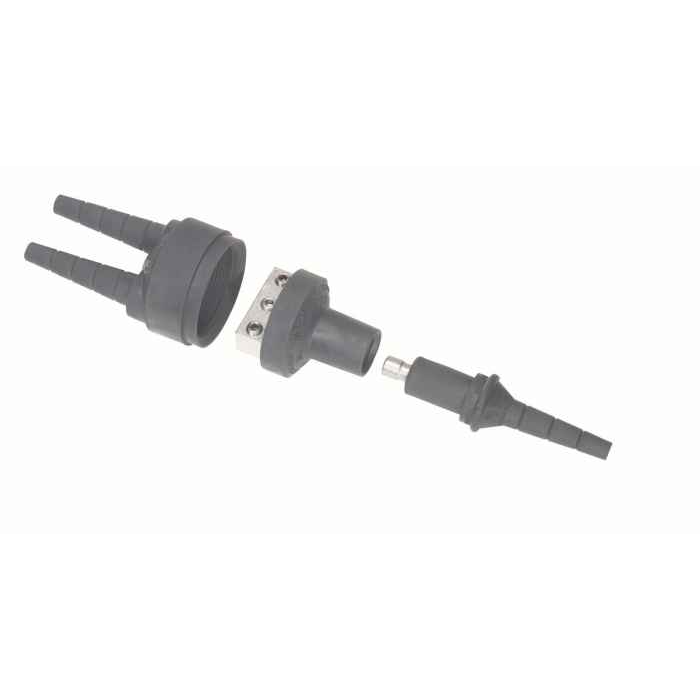

Ideal Industries 83S-ADB1-C Breakaway Streetlight Connector Y-Tap Non-Fused Neutral Safety System
Professional streetlight connection system with breakaway safety protection
The Ideal Industries 83S-ADB1-C Breakaway Streetlight Connector delivers reliable Y-Tap non-fused neutral connections with advanced breakaway safety technology. This professional connector system features spring-loaded contacts that compensate for thermal expansion while maintaining connection integrity, ensuring dependable streetlight power distribution with enhanced safety protection.
Professional Features & Benefits
- Breakaway Safety Design: Safely separates upon impact without breaking wires, protecting infrastructure and reducing maintenance costs
- Spring-Loaded Contact System: Compensates for thermal expansion to maintain reliable connection integrity in all weather conditions
- Y-Tap Non-Fused Configuration: Provides neutral connection capability for versatile streetlight wiring applications
- Quick Installation: Safe and easy installation in five minutes or less with standard tools
- Standard Tool Compatibility: Requires only basic tools - knife, wire stripper, hex tool and crimp tool
- Professional Grade Construction: Engineered for long-term reliability in outdoor streetlight applications
Technical Specifications
- Deparetment: Electrical
- Product Group: Covers & Plates
- Product Subgroup: Outlet Covers
Professional Applications
- Municipal Streetlight Systems
- Commercial Parking Lot Lighting
- Highway and Roadway Illumination
- Public Safety Lighting Infrastructure
- Industrial Outdoor Lighting
- Transportation Authority Projects
Why Choose Ideal Industries Quality?
Ideal Industries delivers professional-grade electrical connection solutions engineered for reliability and safety. The breakaway design and spring-loaded contact system demonstrate the company's commitment to innovative safety features that protect both infrastructure and maintenance personnel while ensuring dependable long-term performance.
Manufacturer Resources
Product Specs
- Product Group:
- Wire Connectors & Terminals
- Department:
- Electrical
- Product Subgroup:
- Splice Kits
- Product Type:
- Mechanical Splice Connector
Ideal Industries 83S-ADB1-C – Frequently Asked Questions
1) What does the breakaway feature on the Ideal 83S-ADB1-C streetlight connector actually do in a knockdown?
On impact, the 83S-ADB1-C separates at the connector instead of tearing the conductors apart. That keeps the pole wiring intact so the repair is a reconnect rather than a splice-and-pull job, which is why municipalities and transportation agencies spec it for roadway and highway poles.
2) Is the 83S-ADB1-C a fused streetlight connector or non-fused?
Non-fused. The 83S-ADB1-C is the Y-tap non-fused neutral version, so it makes the neutral connection only and carries no fuse holder. If your pole base detail calls for fused line-side protection, that has to come from a separate fused connector on the hot leg.
3) What tools does a lineman need to install the Ideal breakaway streetlight connector?
Basic hand tools only: a knife, a wire stripper, a hex tool and a crimp tool. Ideal rates the installation at five minutes or less, so a crew working a pole run does not need a special press or torch.
4) Will the connection loosen over seasonal temperature swings in an outdoor pole base?
The 83S-ADB1-C uses spring-loaded contacts that take up movement from thermal expansion and contraction, so contact pressure is maintained as the conductors and housing cycle through hot and cold weather. It is built for outdoor streetlight service.
5) What is the exact part number to order for the Ideal breakaway neutral connector?
Order it as Ideal Industries 83S-ADB1-C. That single part number covers the Y-tap non-fused neutral breakaway connector; there are no finish or size options to specify.
6) Where is this Ideal breakaway Y-tap connector normally used?
Municipal streetlight systems, highway and roadway illumination, commercial parking lot lighting, public safety lighting, industrial outdoor lighting, and transportation authority projects. In practice it lives in the pole handhole where the luminaire drop taps the underground run.
