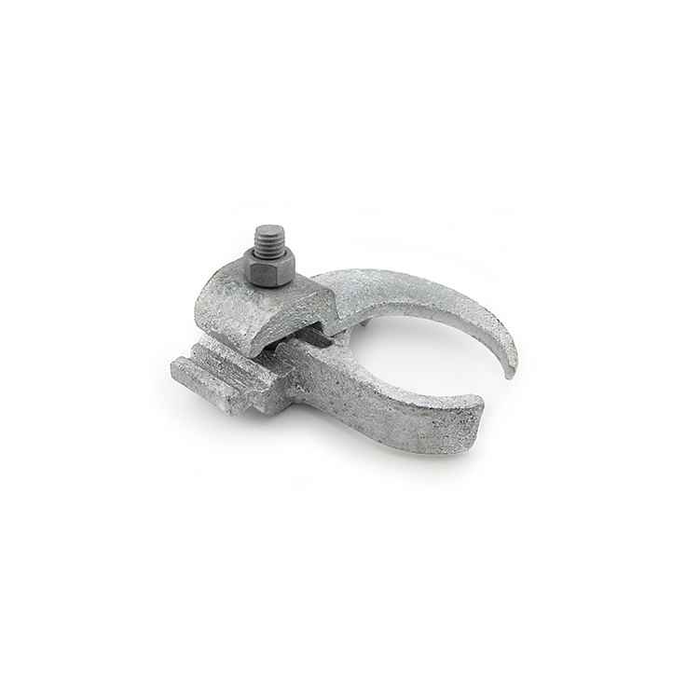

Bridgeport Fittings Malleable Iron Conduit Clamps - Parallel Type with Hot Dip Galvanized Finish
Heavy-Duty Conduit Securing Solution for Professional Electrical Installations
Bridgeport Fittings Malleable Iron Conduit Clamps - Parallel Type deliver professional-grade conduit securing performance for rigid/IMC and EMT conduit installations. These heavy-duty clamps feature malleable iron construction with hot dip galvanized finish, providing superior strength, rigidity and flexibility without breaking. Designed for securing conduit across or perpendicular to beam, channel and angle supports in demanding electrical applications.
Professional Features & Benefits
- Malleable Iron Construction: Provides the heaviest-duty solution with exceptional strength, rigidity and ability to flex without breaking for long-lasting performance
- Hot Dip Galvanized Finish: Delivers superior corrosion resistance and durability for extended service life in various environmental conditions
- Parallel Type Design: Enables secure installation across or perpendicular to beam, channel and angle supports for versatile mounting options
- Multi-Conduit Compatibility: Accommodates rigid conduit, IMC and EMT for flexible installation across different conduit types
- UL Listed: File E161206 ensures compliance with safety standards for professional electrical installations
- Environmental Compliance: RoHS, REACH and LEED compliant for sustainable construction projects
Technical Specifications
- Compliance Standards: Bridgeport straps are RoHS compliant, REACH compliant and LEED compliant
- Country Of Origin: China
- Department: Electrical
- Division: Electrical H1
- Field Application: Used to secure Rigid/IMC or EMT conduit across or perpendicular to beam, channel and angle supports
- Flexible Installation: Edge Type Conduit Clamps can secure rigid conduit, IMC and EMT across or perpendicular to beam, cha
- Malleable Iron: The heaviest-duty solution. Due to its strength, rigidity and ability to flex without breaking, mal
- Product Finish: Hot Dip Galvanized, Zinc Electroplate
- Product Material: Malleable Iron Clamps, Steel Bolt and Nut
- Sub Division: Electrical-E H2
- Ul File: E161206
Professional Applications
- Commercial Electrical Installations
- Industrial Conduit Systems
- Institutional Facilities
- Multi-Unit Residential Properties
- Professional Office Buildings
- Retail and Warehouse Facilities
- Educational and Healthcare Facilities
Why Choose Bridgeport Fittings Quality?
Bridgeport Fittings delivers trusted reliability through UL Listed products that meet rigorous safety standards. The malleable iron construction with hot dip galvanized finish ensures long-term durability and corrosion resistance, while environmental compliance supports sustainable construction practices. Professional contractors rely on Bridgeport Fittings for consistent performance in demanding electrical applications.
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Division:
- Electrical H1
- Product Finish:
- Hot Dip Galvanized, Zinc Electroplate
- Product Material:
- Malleable Iron Clamps, Steel Bolt and Nut
- Sub Division:
- Electrical-E H2
- Certifications:
- E161206
- Product Type:
- Conduit Clamp
- Product Subgroup:
- Clamps
- Product Group:
- Hangers, Supports & Fasteners
Bridgeport Fittings BF-976 – Frequently Asked Questions
1) Will these clamps hold EMT, or are they only for rigid conduit?
Both. The Bridgeport parallel type malleable iron clamps are made to secure rigid conduit, IMC or EMT across or perpendicular to beam, channel and angle supports. Match the clamp size to the conduit trade size.
2) Are Bridgeport parallel conduit clamps UL Listed, and what is the file number?
Yes, UL Listed under file E161206. That is the number an inspector or a spec reviewer will want cited on a commercial or institutional job.
3) What is the difference between a parallel type conduit clamp and a standard one or two hole strap?
A one or two hole strap fastens the conduit flat against a wall or deck. The parallel type clamp instead grips the conduit and bolts to structural steel, so it runs the conduit across or perpendicular to a beam, channel or angle without any backing surface. Use the clamp where you are hanging off structure and the strap where you have a flat surface to screw into.
4) Are these conduit clamps suitable for outdoor or damp locations?
The clamp bodies are malleable iron with a hot dip galvanized finish, which is the finish specified for corrosion resistance on exposed steel work. The hardware is a steel bolt and nut. For heavy chemical exposure or a coastal marine environment, expect to spec stainless hardware separately.
5) Do these clamps come with the bolt and nut, or do I order hardware separately?
Hardware is part of the assembly. The material callout is malleable iron clamps with a steel bolt and nut, so the clamp arrives with the fastener that closes it around the conduit. You still supply whatever attaches the assembly to your beam or channel if your detail calls for added hardware.
6) What finishes are available on the Bridgeport parallel conduit clamps?
Two finishes are catalogued for the line: hot dip galvanized and zinc electroplate. Hot dip galvanized is the one to use on exposed exterior or wet structural steel; zinc electroplate is the dry interior option.
7) Why choose malleable iron clamps over a stamped steel conduit strap?
Malleable iron is the heaviest duty of the options. It gives strength and rigidity plus the ability to flex without breaking, which is why it gets specified for industrial conduit racks and exposed structural runs where a light stamped strap would deform. Stamped steel is fine for light residential branch runs; malleable iron is what goes on the demanding work.
8) Do these clamps meet RoHS and LEED requirements for a green building project?
Bridgeport straps are stated as RoHS compliant, REACH compliant and LEED compliant, so they can go into a sustainable construction submittal. Country of origin is China if your project requires that disclosure.
