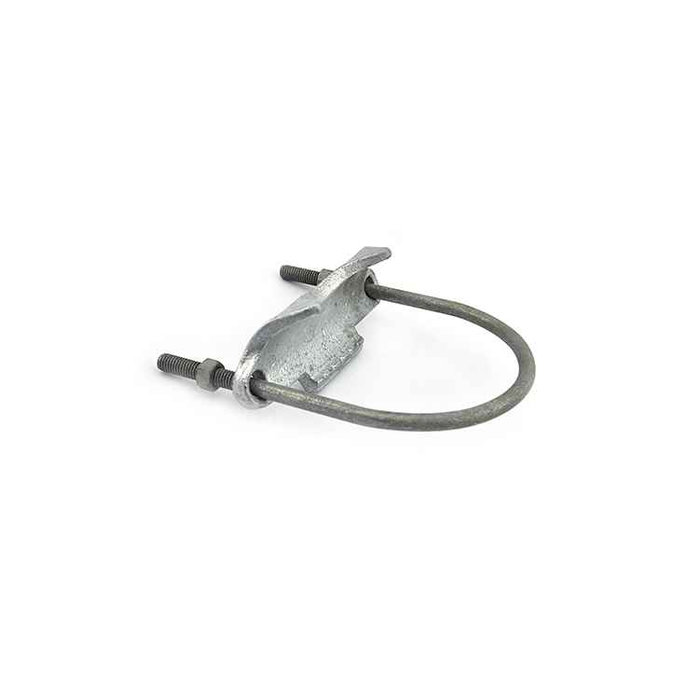

Bridgeport Fittings Right Angle Conduit Clamps - Malleable Iron Construction with 3.1875" Height
Heavy-Duty Right Angle Conduit Support Solution
Bridgeport Fittings Right Angle Conduit Clamps deliver professional-grade conduit support with malleable iron construction for maximum strength and durability. These right angle clamps feature a 3.1875" height design and provide reliable perpendicular mounting solutions for structural beam applications with superior rigidity and flexibility.
Professional Features & Benefits
- Malleable Iron Construction: Provides the heaviest-duty solution with exceptional strength, rigidity and ability to flex without breaking for long-lasting performance
- Right Angle Design: Enables perpendicular conduit installation to structural support beams for versatile mounting configurations
- 3.1875" Height Specification: Engineered dimensions ensure proper clearance and secure conduit positioning
- Easy Installation Process: Simple U-shaped bolt design allows quick conduit runs perpendicular to structural supports with secure nut tightening
- UL Listed Safety: File E161206 certification ensures compliance with electrical safety standards for professional installations
- Environmental Compliance: RoHS, REACH and LEED compliant materials support sustainable building practices
Technical Specifications
- Compliance Standards: Bridgeport straps are RoHS compliant, REACH compliant and LEED compliant
- Country Of Origin: China
- Department: Electrical
- Division: Electrical H1
- Easy Installation: Run conduit perpendicular to structural support beam, though U-shaped bolt and tighten nuts to secu
- Malleable Iron: The heaviest-duty solution. Due to its strength, rigidity and ability to flex without breaking, mal
- Product Height: 3.1875 in
- Sub Division: Electrical-E H2
- Ul File: E161206
Professional Applications
- Commercial Electrical Installations
- Industrial Conduit Support Systems
- Structural Beam Mounting Applications
- Professional Electrical Contracting
- Building Infrastructure Projects
- Maintenance and Retrofit Applications
Why Choose Bridgeport Fittings Quality?
Bridgeport Fittings delivers trusted reliability with UL listed safety certification and comprehensive environmental compliance including RoHS, REACH and LEED standards. The malleable iron construction ensures maximum durability and performance for demanding professional electrical applications.
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Division:
- Electrical H1
- Product Height:
- 3.1875 in
- Sub Division:
- Electrical-E H2
- Certifications:
- E161206
- Product Type:
- Conduit Clamp
- Product Subgroup:
- Clamps
- Product Group:
- Hangers, Supports & Fasteners
Bridgeport Fittings BF-969 – Frequently Asked Questions
1) What conduit sizes do Bridgeport right angle conduit clamps come in?
Four sizes of the Bridgeport right angle conduit clamp are offered: 1/2 inch (part 961), 1-1/2 inch (965), 3-1/2 inch (969) and 4 inch (970). Order by the trade size of the conduit you are supporting, not by the beam or strut dimension.
2) How does a right angle conduit clamp actually mount to a beam?
It runs the conduit perpendicular to the structural support beam. The conduit passes through the U-shaped bolt and you tighten the nuts to secure it. That makes it a beam or structural-member clamp rather than a wall strap, so no separate anchors or plugs are involved.
3) Is the Bridgeport right angle conduit clamp UL listed?
Yes, it is UL listed under file E161206. That file number is what an inspector or a spec reviewer on a commercial or institutional job will want to see cited.
4) Will a malleable iron clamp hold up better than a steel one-hole strap for heavy conduit runs?
Malleable iron is the heaviest-duty option here. Its strength and rigidity, plus the ability to flex without breaking, are why it gets used on large conduit and structural mounting instead of light sheet-steel straps. For a 3-1/2 or 4 inch run on a beam, the 969 or 970 clamp is the right class of support; a stamped strap is meant for small conduit on a flat surface.
5) How much clearance do I need for the clamp itself?
Allow for a 3.1875 inch product height when you lay out the run. That governs how far the conduit sits off the beam face and whether you clear adjacent ductwork, ceiling grid or a second tier of conduit.
6) Do these conduit clamps meet RoHS and LEED requirements for a green building project?
Bridgeport straps are RoHS compliant, REACH compliant and LEED compliant, which covers the material documentation most sustainable-build and institutional submittal packages ask for. Country of origin is China if your submittal needs it.
