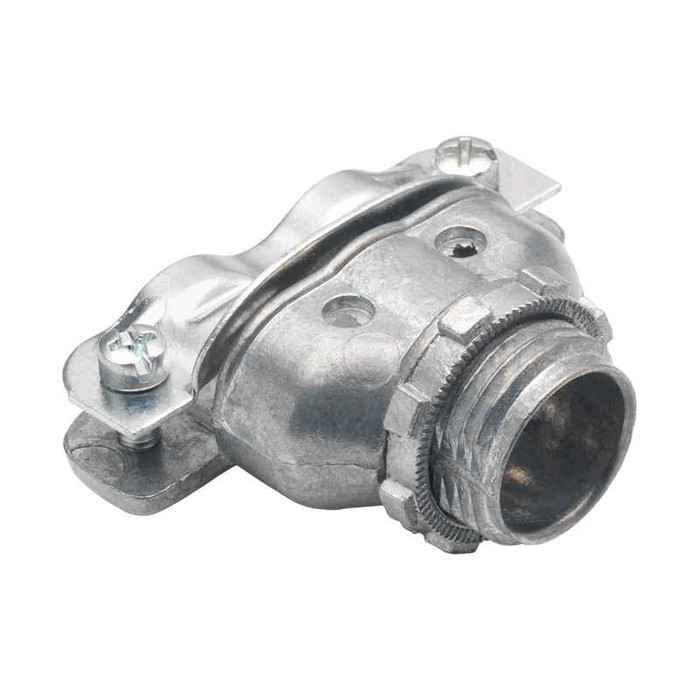

Bridgeport Duplex Connectors - Strap Type (Zinc Die Cast)

Bridgeport Fittings Duplex Connector 3/8" Strap Type Zinc Die Cast

(No reviews yet) Write a Review

Model: 630-DC2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings Duplex Connector 3/8" Strap Type Zinc Die Cast

Professional Electrical Connection Solution for Flexible Metal Conduit

Bridgeport Fittings Duplex Connector provides reliable connection for 3/8" flexible metal conduit and armored cable applications. This strap type fitting connects two lengths of flexible metal conduit or armored cable into a single knockout, featuring zinc die cast construction with ball burnished, mirror smooth finish for professional installations.

Professional Features & Benefits

  • 3/8" Trade Size Compatibility: Designed for 3/8" flexible metal conduit and 14/2 to 10/3 armored cable (.430" to .610") providing versatile connection options for various wire configurations.
  • Zinc Die Cast Construction: Precision die cast zinc body delivers precise fit and finish for trouble-free performance and excellent durability in electrical applications.
  • Ball Burnished Finish: Mirror smooth ball burnished surface provides superior corrosion resistance and professional appearance for long-lasting installations.
  • Two-Screw Strap Design: Phillips/slotted head screws enable secure tightening of strap to firmly hold conduit or cable in place during installation and operation.
  • UL Listed Safety: UL File E20534 listing and RoHS compliance ensure code compliance and safety for professional electrical installations.
  • NEMA FB-1 Rating: Meets NEMA FB-1 standards for reliable performance in appropriate electrical environments and applications.

Technical Specifications

  • Bpt Trade Size: 3/8"
  • Collection Folder: 630-DC2
  • Country Of Origin: United States
  • Department: Electrical
  • Division: Electrical H1
  • Duplex Style: Connects two lengths of flexible metal conduit or armored cable into a single knockout
  • Field Application: Strap type fitting used to connect 3/8" flexible metal conduit or 14/2 to 10/3 (.430" to 610") armo
  • Nema Rating: FB-1
  • Npd Date Electrical: 2008-07-01T00:00:00.000Z
  • Product Depth: 0.61 in
  • Product Finish: Ball burnished, mirror smooth
  • Product Length: 2.1875 in
  • Product Material: Zinc Die Cast
  • Product Weight: 11.5 lbs
  • Product Width: 1.625 in
  • Safety Compliance: Duplex strap connector is UL listed and RoHS compliant
  • Sizing: For use with flex trade size 3/8" flexible metal conduit when installing into a 1/2" knockout
  • Sub Division: Electrical-E H2
  • Two Screw Strap: Use the 2-way Phillips/slotted head screws to tighten down strap and secure conduit or cable in pla
  • Ul File: E20534
  • Zinc Body: Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent

Professional Applications

  • Commercial Electrical Installations
  • Industrial Wiring Systems
  • Residential Electrical Projects
  • Flexible Conduit Connections
  • Armored Cable Terminations
  • Electrical Panel Connections
  • Professional Electrical Contracting

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers reliable electrical connection solutions with UL listed safety compliance and precision zinc die cast construction. The ball burnished, mirror smooth finish and NEMA FB-1 rating ensure professional performance and durability for demanding electrical applications.

Manufacturer Resources

Product Specs

Bpt Trade Size:
3/8"
Country Of Origin:
United States
Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Depth:
0.61 in
Product Finish:
Ball burnished, mirror smooth
Product Length:
2.1875 in
Product Material:
Zinc Die Cast
Product Weight:
11.5 lbs
Product Width:
1.625 in
Safety Compliance:
Duplex strap connector is UL listed and RoHS compliant
Sub Division:
Electrical-E H2
Certifications:
E20534
Product Type:
AC/MC/Flex Connector
Product Subgroup:
Flexible Conduit & Fittings
Product Group:
Conduit & Raceway

Bridgeport Fittings 630-DC2 – Frequently Asked Questions

1) What size knockout does the Bridgeport 630-DC2 duplex connector need?
The 630-DC2 goes into a 1/2 inch knockout. That is the point of the duplex design: two runs of 3/8 inch flexible metal conduit or armored cable land in a single 1/2 inch KO instead of taking up two openings on the box or panel.
2) Will this Bridgeport duplex connector accept 12/2 or 10/3 armored cable?
Yes. The strap type duplex connector is rated for 14/2 through 10/3 armored cable, covering an outside diameter range of .430 to .610 inches, so 12/2 sits comfortably inside that window. It also takes 3/8 inch trade size flexible metal conduit.
3) Can I run two separate MC cable whips into one box opening with this fitting?
That is exactly what it does. One 630-DC2 takes two lengths of flex or armored cable and terminates both through a single 1/2 inch knockout, which is how electricians pick up a second home-run or fixture whip on a box that has no spare openings left.
4) Is the Bridgeport 630-DC2 UL listed for commercial and inspected work?
It is UL listed under file E20534 and RoHS compliant, and it meets NEMA FB-1. That combination is what an inspector or a facility spec typically asks for on flex and AC cable terminations.
5) I only need to land one run of flex, not two - what should I order instead of the Bridgeport 630-DC2?
The Bridgeport Fittings 630-DC2 is a duplex strap connector, meaning it brings two lengths of flexible metal conduit or armored cable into a single knockout. For a single run, a straight one-piece FMC connector such as the Thomas & Betts 306 Straight Tite-Bite connector is the style to look at; the 306 is a non-insulated fitting for 1 inch FMC, so confirm the trade size matches your conduit. The Bridgeport duplex fitting is built for 3/8 inch flex going into a 1/2 inch knockout.
6) Can I use the Bridgeport 630-DC2 duplex connector on liquidtight flexible conduit in a wet location?
No. The 630-DC2 is a strap type duplex fitting for 3/8 inch flexible metal conduit and 14/2 to 10/3 armored cable, rated NEMA FB-1, and a strap-and-screw design does not seal the conduit. For liquidtight flexible conduit you need a purpose-built liquidtight fitting such as the RACO 4734 SWIVEL-LOK, a 1 inch Type B liquidtight multi-position connector in nylon. Match the fitting to the conduit type the drawing calls for.
7) How does the cable get secured in this strap type connector, and do I need extra hardware?
Two Phillips/slotted head screws clamp the strap down over the conduit or cable, so it takes nothing more than a screwdriver. The screws are part of the fitting; the only thing not included is the locknut side you would already be handling at the box.
8) Is a zinc die cast duplex connector suitable for damp or corrosive areas?
The body is die cast zinc with a ball burnished, mirror smooth finish, which gives it good corrosion resistance and a clean look on exposed work. It is rated NEMA FB-1, which is a fittings and boxes standard, not a wet or liquidtight rating. For a liquidtight run, use a fitting built for it such as the RACO 4734 SWIVEL-LOK Type B liquidtight connector.
9) What is the difference between this duplex connector and a single straight flex connector?
A duplex fitting like the 630-DC2 lands two cables in one 1/2 inch knockout. A single connector, for example the Thomas and Betts 306 straight Tite-Bite, terminates one run per opening, and the 306 is a 1 inch FMC fitting rather than 3/8 inch. Use the duplex when knockouts are scarce; use singles when you have openings to spare or a larger trade size.
10) If I want to cut down on separate fittings, is there a box with the connector built in instead of using the Bridgeport 630-DC2?
Yes. The 630-DC2 is a standalone fitting you install into a 1/2 inch knockout on an existing enclosure. If you are setting a new box anyway, the RACO 232MSCM is a 4 inch square welded box, 2-1/8 inches deep with an M bracket, from the STAB-IT series with the connector integrated into the box. Note the Bridgeport duplex fitting still has the advantage of landing two runs of 3/8 inch flex in one knockout, so check how many cables you are bringing in before you switch approaches.
11) What makes the Bridgeport 630-DC2 different from a standard Tite-Bite style flex connector?
The Bridgeport 630-DC2 uses a two-screw strap with Phillips/slotted heads that clamps down over the conduit or cable, and it accepts two runs into one knockout. A squeeze or bite style fitting like the Thomas & Betts 306 straight Tite-Bite connector is a single-entry FMC fitting sized for 1 inch conduit and supplied non-insulated. The Bridgeport fitting is zinc die cast with a ball burnished, mirror smooth finish and carries UL listing under file E20534 with RoHS compliance.
12) How much room does this fitting take up inside the enclosure?
Overall it measures 2.1875 by 1.625 by 0.61 inches, so plan for a little over two inches of length where the two cables converge. On a shallow box or a tight gutter that matters more than the KO size does.
13) Is the Bridgeport 630-DC2 made in the USA?
Yes, country of origin is the United States. That answers the domestic-content question that comes up on government, school, and healthcare purchase orders.
