Bridgeport Fittings Two Screw ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4.43
Bridgeport Two Screw Strap Type Connectors

Bridgeport Fittings Two Screw Strap Type Electrical Connectors - Zinc Die Cast with Ball Burnished Finish

(No reviews yet) Write a Review

Model: 655-DC2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

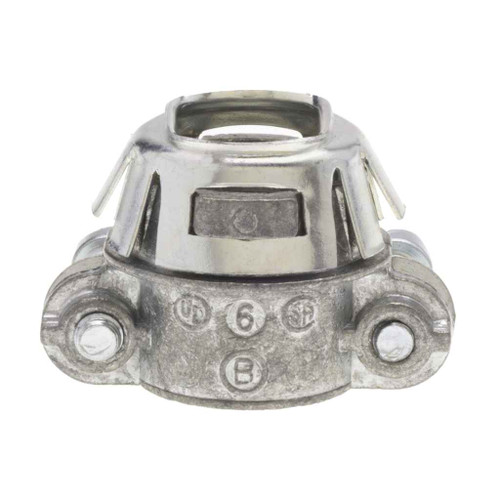

Bridgeport Fittings Two Screw Strap Type Electrical Connectors

Professional zinc die cast connectors with precision fit and finish

Bridgeport Fittings Two Screw Strap Type Electrical Connectors deliver reliable conduit and cable securing performance with zinc die cast construction and ball burnished, mirror smooth finish. These UL listed connectors feature precise fit and finish for trouble-free performance and excellent durability in electrical installations.

Professional Features & Benefits

  • Zinc Die Cast Construction: Provides precise fit and finish for trouble-free performance and excellent long-term durability
  • Ball Burnished Mirror Smooth Finish: Ensures superior surface quality and corrosion resistance for professional installations
  • Two Screw Strap Design: Phillips/slotted head screws enable secure tightening and reliable conduit or cable positioning
  • UL Listed Safety Compliance: Meets rigorous safety standards with UL File E20534 for code-compliant installations
  • RoHS Compliant: Environmentally responsible manufacturing meets current regulatory requirements
  • NEMA FB-1 Rating: Designed for appropriate electrical applications with proper environmental protection

Technical Specifications

  • Department: Electrical
  • Division: Electrical H1
  • Nema Rating: FB-1
  • Product Finish: Ball burnished, mirror smooth
  • Product Material: Zinc Die Cast
  • Safety Compliance: Bridgeport strap connectors are UL listed and RoHS compliant
  • Sub Division: Electrical-E H2
  • Two Screw Strap: Use the 2-way Phillips/slotted head screws to tighten down strap and secure conduit or cable in pla
  • Ul File: E20534
  • Zinc Body: Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent

Professional Applications

  • Residential Electrical Installations
  • Commercial Building Wiring
  • Industrial Electrical Systems
  • Conduit and Cable Management
  • Electrical Panel Connections
  • Professional Contractor Projects

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability with UL listed safety compliance and precision zinc die cast construction. The ball burnished mirror smooth finish and RoHS compliant manufacturing ensure long-lasting performance and environmental responsibility for professional electrical installations.

Manufacturer Resources

Product Specs

Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Finish:
Ball burnished, mirror smooth
Product Material:
Zinc Die Cast
Sub Division:
Electrical-E H2
Certifications:
E20534
Product Type:
Cable Connector
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Bridgeport Fittings 655-DC2 – Frequently Asked Questions

1) What trade sizes do the Bridgeport two screw strap connectors come in?
Three sizes: 1/2 inch (653-DC2), 3/4 inch (655-DC2), and 1 inch (657-DC2). On each one the flex trade size and the knockout size match, so a 1/2 inch connector takes 1/2 inch flex and drops into a 1/2 inch K.O. in the box or panel. Size the connector to the flex, and the K.O. follows.
2) Are Bridgeport two screw strap connectors UL listed for inspection?
Yes, and the file number is E20534, which is what an inspector or spec reviewer will want to see. They are also RoHS compliant and carry a NEMA FB-1 rating.
3) How does a two screw strap connector actually hold the conduit?
A strap over the top of the conduit is drawn down by two screws with combination Phillips/slotted heads, clamping the flex or cable against the connector body. Two screws spread the clamping load rather than pinching at a single point, which is why this style is used where the cable is under some pull. A screwdriver is all the install takes, no crimping or special tool.
4) Will a zinc die cast connector hold up in a damp mechanical room or basement?
The body is zinc die cast with a ball burnished, mirror smooth finish, which gives a tighter surface with fewer pores for moisture to sit in than an as-cast part. The NEMA FB-1 rating covers the fitting class, not a wet-location seal, so for anything requiring a rated watertight or raintight connection use a fitting specifically listed for that condition.
5) Is a two screw strap connector better than a squeeze or set screw connector?
The two screw strap style clamps across the cable with a strap, so it grips a range of flexible conduit and cable without deforming it and is easy to re-open if you need to reposition a run. A squeeze connector uses a single clamp screw and is faster on small sizes; a set screw connector is meant for rigid EMT, not flex. For flexible conduit or cable where pull-out resistance matters, the strap type is the one to use.
6) Can I standardize on one connector across residential and commercial jobs?
Yes. Bridgeport's two screw strap connectors are used in residential wiring, commercial building wiring, industrial systems, and panel connections, and the same three trade sizes (1/2, 3/4, 1 inch) cover most of what a service truck or MRO crib carries. With UL file E20534 behind them they satisfy the same code review across those facility types.
