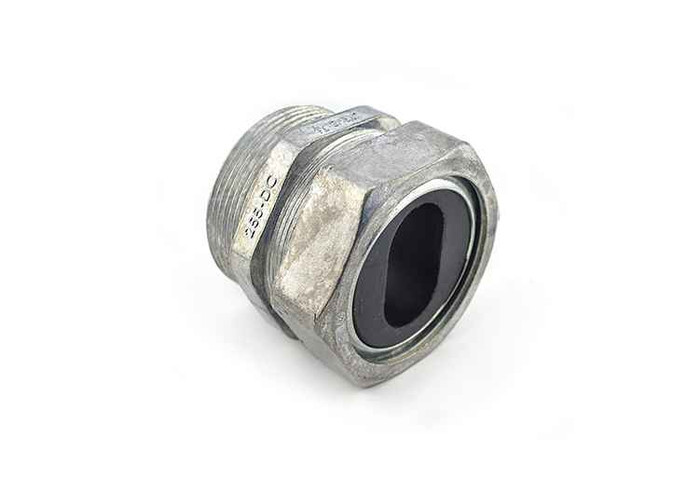

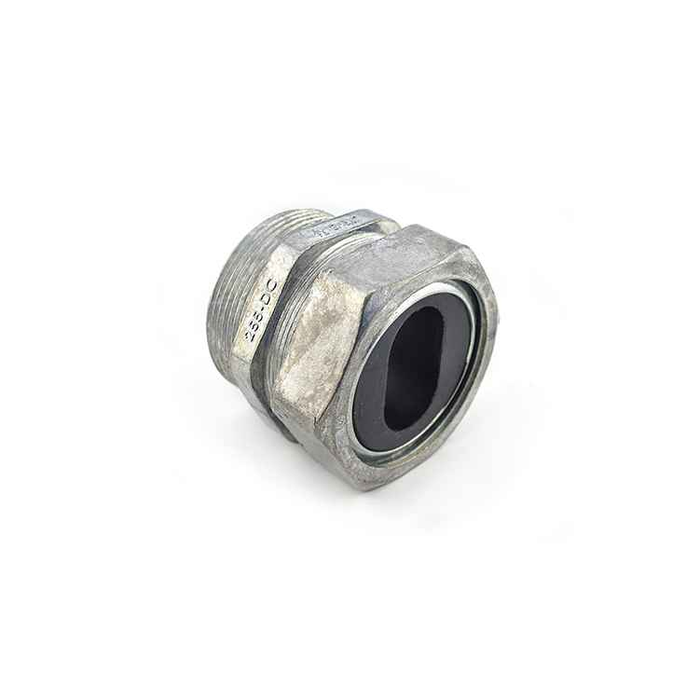

Bridgeport Fittings Watertight Service Entrance Cable Connector - Die Cast Zinc with Ball Burnished Finish

Bridgeport Fittings Watertight Service Entrance Cable Connector - Die Cast Zinc with Ball Burnished Finish

(No reviews yet) Write a Review

Model: BPF-763-4
$14.19

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings Watertight Service Entrance Cable Connector

Professional compression-type connector for secure watertight cable connections

The Bridgeport Fittings Watertight Service Entrance Cable Connector delivers reliable performance for electrical service entrance applications. This compression-type connector features a die-cast zinc body with ball burnished finish, providing superior corrosion resistance and watertight sealing around service entrance cables. The professional-grade construction ensures proper electrical connections between service entrance cable and enclosures while preventing water damage.

Professional Features & Benefits

  • Die Cast Zinc Construction: Naturally resistant to corrosion for long-term durability in any environment
  • Ball Burnished Finish: Mirror smooth surface provides enhanced protection and professional appearance
  • Compression Type Design: Ensures secure watertight seal around service entrance cable for reliable performance
  • Watertight Sealing: Prevents water damage and maintains continued high performance in outdoor applications
  • Secure Electrical Connection: Maintains proper electrical connection between service entrance cable and enclosure
  • Compact Profile: 0.75 inch height allows installation in space-constrained applications

Technical Specifications

  • Department: Electrical
  • Die Cast Zinc Body: The die-cast zinc body is naturally resistant to corrosion for long-term use in any environment
  • Division: Electrical H1
  • Field Application: Compression type connector which provides watertight seal around service entrance cable.
  • Product Finish: Ball burnished, mirror smooth
  • Product Height: 0.75 in
  • Product Material: Zinc Die Cast
  • Secure Electrical Connection: Users can maintain a proper electrical connection between service entrance cable and the enclosure
  • Sub Division: Electrical-E H2
  • Watertight: This fitting ensures a watertight seal to prevent water damage and ensure continued high performanc

Professional Applications

  • Residential Service Entrance Connections
  • Commercial Building Electrical Systems
  • Industrial Facility Power Distribution
  • Outdoor Electrical Enclosures
  • Service Panel Installations
  • Weatherproof Electrical Connections

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers professional-grade electrical connectors engineered for reliability and durability. The die-cast zinc construction with ball burnished finish ensures long-term performance and corrosion resistance, while the compression-type design provides secure watertight sealing for critical service entrance applications.

Manufacturer Resources

Product Specs

Department:
Electrical
Division:
Electrical H1
Product Finish:
Ball burnished, mirror smooth
Product Height:
0.75 in
Product Material:
Zinc Die Cast
Sub Division:
Electrical-E H2
Product Type:
Connector

Bridgeport Fittings BPF-763-4 – Frequently Asked Questions

1) How do I pick the right Bridgeport SE connector for my cable size?
Match the flat oval grommet opening to the cable. The openings run .406 x .688 inch (763-8), .520 x .840 inch (763-4), .600 x 1.000 inch (764-2), .865 x 1.325 inch (765-2), .860 x 1.340 inch (766-2) and .900 x 1.500 inch (766-4). Measure the major and minor dimensions of your SE or SEU cable jacket and choose the grommet that closes down on it; an oversized grommet will not compress into a watertight seal.
2) Is a compression SE cable connector okay for an outdoor meter socket or weatherhead?
That is what this fitting is built for. The compression design squeezes a grommet around the service entrance cable to form a watertight seal at the enclosure, which is what keeps rain from tracking down the cable into a meter socket or outdoor panel. The die cast zinc body resists corrosion in that exposure.
3) Can a RACO 4734 liquidtight connector be used in place of a Bridgeport 763-4 service entrance cable connector?
No. The RACO 4734 is a SWIVEL-LOK Series 1 inch Type B liquidtight multi-position connector made of nylon, and it is built to terminate liquidtight flexible conduit, not flat service entrance cable. The Bridgeport 763-4 is a compression type connector with a die cast zinc body that seals a watertight grommet around service entrance cable entering an enclosure. The grommet openings run from .406 inch x .688 inch up to .900 inch x 1.500 inch, which are oval shapes sized to flat SE cable rather than round conduit. Use the RACO 4734 where flexible liquidtight conduit is being landed and the Bridgeport connector where SE cable is.
4) Does the Bridgeport 763 series handle intersystem bonding at the meter, or do I need a separate device?
You need a separate device. The Bridgeport 763 and 764/765/766 connectors are compression fittings that seal service entrance cable where it enters an enclosure and maintain the electrical connection between the cable and that enclosure. They do not provide termination points for bonding conductors. For intersystem bonding at the service, the Burndy BDTIBB BONDIT wall mount intersystem bonding connector in stainless steel accepts #14 through #2 AWG conductors and is the purpose-built part for that job. The two are commonly installed on the same service and are not alternatives to one another.
5) Two Bridgeport connectors both list a 2 inch knockout - what is the difference between 766-2 and 766-4?
Only the cable opening. Both 766-2 and 766-4 drop into a 2 inch knockout, but 766-2 takes a .860 x 1.340 inch grommet opening and 766-4 takes a larger .900 x 1.500 inch opening. So the choice comes down to the flat dimensions of the SE cable, not the enclosure.
6) Will a Bridgeport SE connector fit inside a shallow enclosure or tight gutter?
Height is 0.75 inch, so the body sits low against the enclosure wall and works where clearance behind a meter socket or inside a crowded gutter is limited. Check the grommet opening and KO size for your cable and knockout as well.
7) I need a metal-bodied 1 inch connector rather than nylon - what are my options?
The Bridgeport 763-4 and 763-8 are 1 inch knockout size connectors with a zinc die cast body and a ball burnished, mirror smooth finish, which resists corrosion in outdoor and service entrance work. The comparable RACO 4734 is also a 1 inch connector but is molded in nylon and is a multi-position liquidtight fitting. If the specification calls for a die cast metal body at a 1 inch knockout, the Bridgeport connectors are the match; the difference in body material also changes how the fitting behaves for bonding and mechanical strength at the enclosure.
8) What should I order if I need the enclosure itself rather than the cable entry fitting?
The Bridgeport watertight service entrance cable connectors are fittings only - they land SE cable into a knockout in sizes from 1 inch through 2 inch. If the box is what is missing, the RACO 232MSCM is a 4 inch square welded box, 2-1/8 inch deep, with a STAB-IT connector and an M bracket for stud mounting. Ordering both covers the opening; the Bridgeport fitting on its own assumes the enclosure is already set.
9) What finish and material are these Bridgeport service entrance connectors, and how do they hold up outdoors?
The body is zinc die cast with a ball burnished, mirror smooth finish. Zinc die cast is naturally corrosion resistant, and the burnished surface gives a smooth outer face with no sharp casting flash to cut a cable jacket during install.
