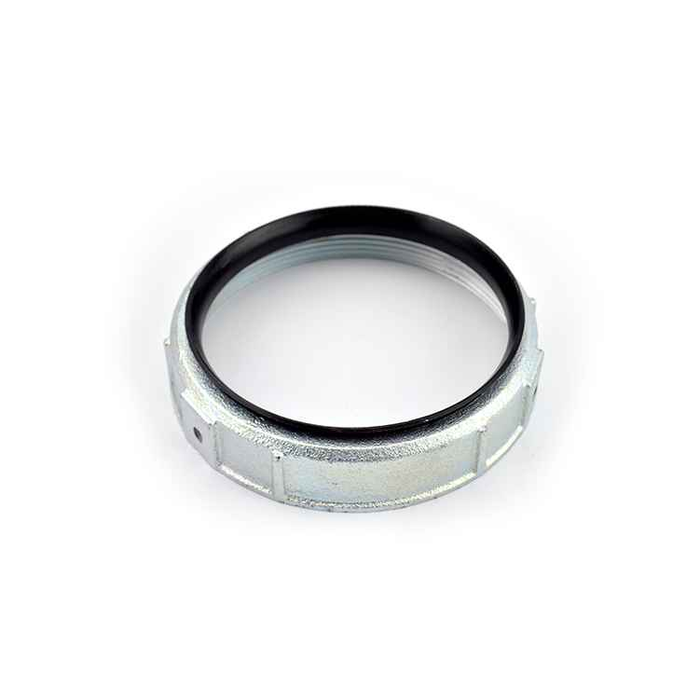

Bridgeport Fittings Insulated Bushings - Malleable Iron with Plastic Metaliner and Zinc Electroplating

Bridgeport Fittings Insulated Bushings - Malleable Iron with Plastic Metaliner and Zinc Electroplating

(No reviews yet) Write a Review

Model: BF-361

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

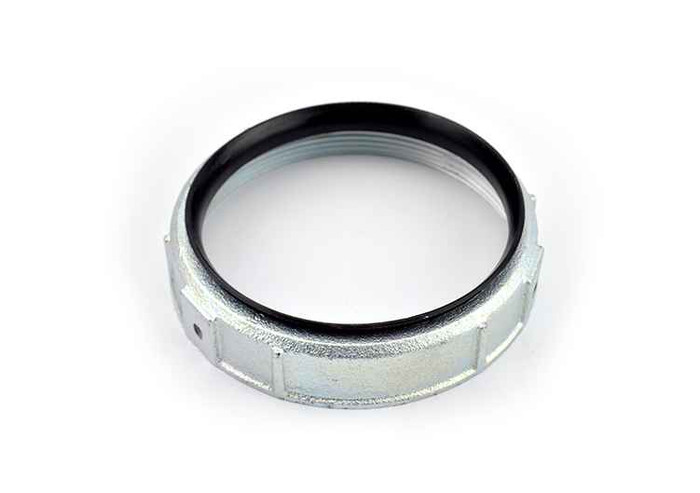

Bridgeport Fittings Insulated Bushings - Malleable Iron with Plastic Metaliner and Zinc Electroplating

Professional Conduit Termination with Enhanced Protection

Bridgeport Fittings Insulated Bushings deliver reliable conduit termination for rigid and IMC applications with malleable iron construction and protective plastic metaliner. The zinc electroplated finish provides extended corrosion resistance while the impact-resistant iron body offers superior protection from physical damage. These professional-grade bushings feature threaded coupling design for secure connections and grey finish with black insulator for easy identification.

Professional Features & Benefits

  • Malleable Iron Construction: Natural strength, rigidity and ductility provides the highest protection from physical damage and impact resistance for demanding applications.
  • Plastic Metaliner Protection: Prevents damage to conductors during installation and operation, ensuring long-term system reliability and safety.
  • Zinc Electroplated Finish: Extended resistance to corrosion for reliable performance in various environmental conditions and extended service life.
  • Threaded Coupling Design: Makes easy connections for rigid or IMC conduits with secure, professional installation capabilities.
  • NEMA FB-1 Rating: Meets professional standards for electrical conduit fittings ensuring code compliance and system integrity.
  • UL Listed: File E9391 certification provides assurance of safety and performance standards for professional electrical installations.

Technical Specifications

  • Department: Electrical
  • Division: Electrical H1
  • Easy To Use: The threaded coupling makes easy connections for rigid or IMC conduits
  • Field Application: Used with locknut to terminate threaded rigid and IMC to box. Plastic metaliner prevents damage to
  • Impact Resistant Iron Body: The natural strength, rigidity and ductility of malleable iron offers the highest protection from p
  • Nema Rating: FB-1
  • Product Color: Grey with Black Insulator
  • Product Finish: Zinc electro-plate
  • Product Height: 1.125 in
  • Product Material: Malleable Iron
  • Sub Division: Electrical-E H2
  • Ul File: E9391
  • Zinc Electroplating: Zinc electroplated body provides extended resistance to corrosion

Professional Applications

  • Commercial Electrical Installations
  • Industrial Conduit Systems
  • Residential Electrical Projects
  • Institutional Facilities
  • Retail and Office Buildings
  • Manufacturing Facilities
  • Educational Institutions

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers professional-grade electrical components with UL listing E9391 and NEMA FB-1 rating for code compliance and system reliability. The zinc electroplated finish and malleable iron construction ensure long-term durability and corrosion resistance for demanding electrical applications.

Manufacturer Resources

Product Specs

Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Color:
Grey with Black Insulator
Product Finish:
Zinc electro-plate
Product Height:
1.125 in
Product Material:
Malleable Iron
Sub Division:
Electrical-E H2
Certifications:
E9391
Zinc Electroplating:
Zinc electroplated body provides extended resistance to corrosion
Product Type:
Fitting
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Bridgeport Fittings BF-361 – Frequently Asked Questions

1) What conduit sizes do Bridgeport insulated bushings come in?
Bridgeport's malleable iron insulated bushings run from 1/2 inch up through 5 inch trade size: 1/2 (361), 3/4 (362), 1 (363), 1-1/4 (364), 1-1/2 (365), 2 (366), 2-1/2 (367), 3 (368), 3-1/2 (369), 4 (370) and 5 inch (371). Order by trade size of the rigid or IMC conduit you are terminating, not by the box opening.
2) Will a Bridgeport insulated bushing thread onto EMT?
No. These are threaded insulated bushings for rigid metal conduit and IMC, which carry male threads on the end. EMT is unthreaded, so you would need an EMT connector instead. The bushing threads onto the conduit end and is held to the box with a locknut.
3) Do I need a separate plastic bushing if I use these?
No. The insulator is built in. A black plastic metaliner is molded into the malleable iron body, so it protects conductors from the cut conduit edge without adding a snap-in bushing on top of it. That is the difference between this and a plain steel bushing.
4) Are Bridgeport insulated bushings UL Listed and NEMA rated for an inspected commercial job?
Yes. They are UL Listed under file E9391 and meet NEMA FB-1 for electrical conduit fittings, which is what an inspector or spec writer typically looks for on conduit terminations in commercial and institutional work.
5) Is a locknut included with these insulated bushings?
No locknut ships with the bushing. The termination method is bushing plus locknut: the locknut goes on the inside of the enclosure, the bushing threads on to finish the conduit end and protect the conductors. Buy locknuts in the matching trade size separately.
6) Malleable iron or plastic insulated bushing, which should I use?
Go with the malleable iron body where the fitting can take a hit or a boot: the iron gives strength, rigidity and ductility, so it holds up to physical damage far better than an all-plastic bushing. A molded plastic bushing is fine on protected interior runs. On exposed industrial conduit, loading docks, mechanical rooms and plant floors, the iron body is the one that survives.
7) How much room does the bushing take up inside the enclosure?
Height on the bushing is 1.125 inches. Allow for that plus the locknut when you are laying out conduit entries close together or working in a shallow box, since the bushing sits on the conduit end where it enters.
8) Will these bushings hold up in a damp or corrosive location?
The body is zinc electroplated, which gives extended corrosion resistance for typical indoor and sheltered installations. For continuous wet or chemically aggressive environments, an electroplated iron fitting is not a substitute for a hot dip galvanized or non-metallic system.
9) Can I standardize one bushing across a whole facility's conduit terminations?
Yes, and that is a common MRO approach here. The same malleable iron insulated bushing is offered in every trade size from 1/2 inch to 5 inch under part numbers 361 through 371, all with the same zinc electroplated finish, UL file E9391 and NEMA FB-1 rating, so a single line item family covers small branch conduit and large feeders alike.
