Bridgeport Fittings Single Screw Beam Clamp Insulator Support - Malleable Iron with Zinc Electroplate Finish

Bridgeport Fittings Single Screw Beam Clamp Insulator Support - Malleable Iron with Zinc Electroplate Finish

(No reviews yet) Write a Review

Model: BF-951
$1.50

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

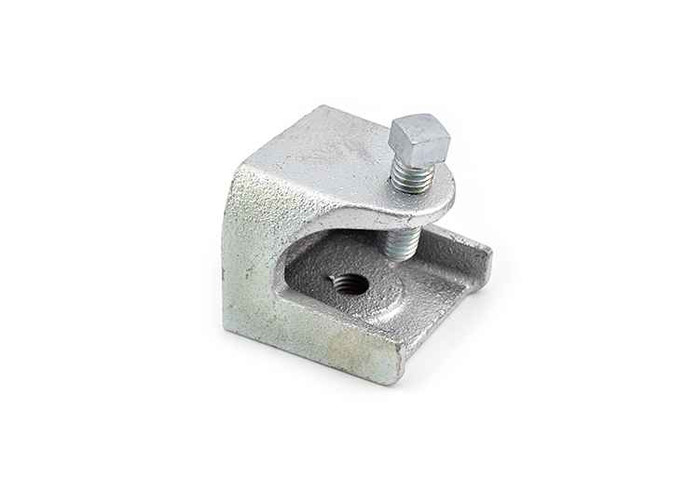

Bridgeport Fittings Single Screw Beam Clamp Insulator Support

Heavy-Duty Malleable Iron Construction for Professional Electrical Applications

The Bridgeport Fittings Single Screw Beam Clamp Insulator Support delivers professional-grade performance with malleable iron construction and zinc electroplate finish. This UL listed beam clamp provides reliable insulator support with two threaded holes for versatile mounting applications. The malleable iron material offers superior strength, rigidity and flexibility without breaking, making it the heaviest-duty solution for demanding electrical installations.

Professional Features & Benefits

  • Malleable Iron Construction: Provides maximum strength, rigidity and ability to flex without breaking for the most demanding applications
  • UL Listed Design: Ensures compliance with safety standards and professional installation requirements
  • Zinc Electroplate Finish: Delivers corrosion resistance and long-lasting durability in various environmental conditions
  • Two Threaded Holes: Offers versatile mounting options for secure insulator support connections
  • Single Screw Beam Clamp: Enables quick and easy installation without welding or drilling holes in structural members
  • RoHS & REACH Compliant: Meets environmental compliance standards for responsible electrical installations
  • LEED Compliant: Supports green building certification requirements for sustainable construction projects

Technical Specifications

  • Compliance Standards: Bridgeport straps are RoHS compliant, REACH compliant and LEED compliant
  • Department: Electrical
  • Division: Electrical H1
  • Field Application: Single screw beam clamp insulator support with two threaded holes. UL listed.
  • Malleable Iron: The heaviest-duty solution. Due to its strength, rigidity and ability to flex without breaking, mal
  • Product Finish: Zinc electro-plate
  • Product Material: Malleable Iron
  • Quick And Easy: Beam clamps are easier and faster to install than welding or drilling holes – both of which require
  • Sub Division: Electrical-E H2
  • Ul File: E161206

Professional Applications

  • Commercial Electrical Installations
  • Industrial Facility Wiring
  • Institutional Building Projects
  • Professional Office Complexes
  • Retail and Service Establishments
  • Multi-Unit Residential Properties
  • Educational and Healthcare Facilities

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability with UL listed products that meet the highest safety and performance standards. The malleable iron construction with zinc electroplate finish ensures long-lasting durability, while RoHS, REACH and LEED compliance supports responsible electrical installations. Trust Bridgeport Fittings for professional-grade beam clamp solutions that deliver consistent performance in demanding applications.

Manufacturer Resources

Product Specs

Department:
Electrical
Division:
Electrical H1
Product Finish:
Zinc electro-plate
Product Material:
Malleable Iron
Sub Division:
Electrical-E H2
Certifications:
E161206
Product Type:
Beam Clamp
Product Subgroup:
Hangers, Straps & Supports
Product Group:
Hangers, Supports & Fasteners

Bridgeport Fittings BF-951 – Frequently Asked Questions

1) What beam flange thicknesses will the Bridgeport single screw beam clamp grip?
Jaw openings run 11/16 inch, 3/4 inch, 7/8 inch and 1 inch, so the clamp grips flanges up to the jaw size you order. Measure the flange edge on the beam or bar joist first, then pick the jaw opening that clears it. A clamp whose jaw is smaller than the flange simply will not seat.
2) What rod or threaded hanger sizes does this beam clamp tap for?
Tap sizes offered are 1/4-20, 5/16-18, 3/8-16 and 1/2-13. Match the tap to the machine screw or threaded rod you are hanging the insulator or support off of. The body carries two threaded holes, so you have two mounting positions to work with.
3) Do I need to weld or drill the steel to install this clamp?
No. The single screw beam clamp bites onto the beam flange and tightens with one set screw, so there is no welding and no drilling through structural steel. That also means no hot work permit and no touch-up on the beam's coating.
4) Why choose malleable iron over a stamped steel beam clamp?
Malleable iron is the heaviest-duty option here: it gives strength and rigidity plus the ability to flex without cracking under load, which is what you want on a clamp that is carrying weight off a single screw. Stamped spring-steel clamps are lighter-duty and suited to small conduit or single cables.
5) What size options are there besides the jaw opening?
Body sizes run 1 inch, 1-1/2 inch, 2 inch and 2-1/2 inch, and you pick that alongside jaw opening, tap size and load rating. Not every combination of the four exists, so confirm the jaw opening and tap size pairing you need when you order.
6) Will the zinc finish hold up in a parking garage or unheated warehouse?
The clamp is zinc electro-plated, which gives corrosion resistance for general indoor and sheltered commercial and industrial work. For direct weather exposure, salt spray, or wash-down areas, spec a support with a heavier hot-dip or stainless finish instead.
7) Does this beam clamp meet RoHS, REACH and LEED requirements for a green building project?
Bridgeport states these are RoHS compliant, REACH compliant and LEED compliant, which covers the environmental documentation most institutional and LEED-tracked projects ask for on support hardware.
