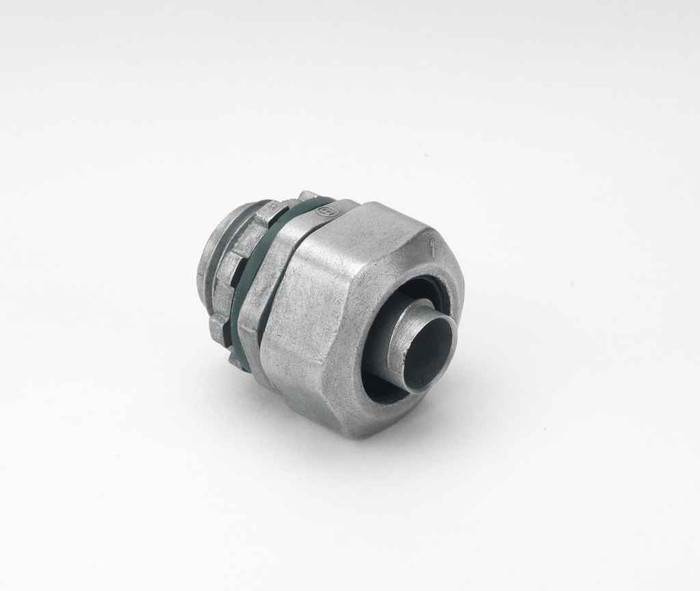

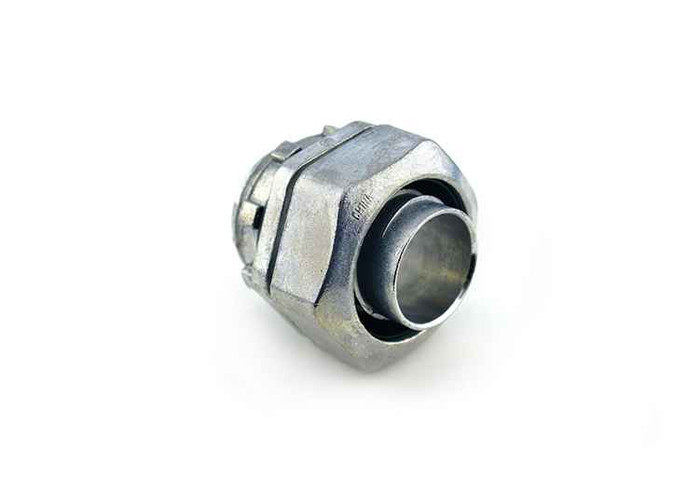

Bridgeport Fittings Liquid Tight Straight Connectors - Zinc Die Cast with NPT Threads

Bridgeport Fittings Liquid Tight Straight Connectors - Zinc Die Cast with NPT Threads

(No reviews yet) Write a Review

Model: 430-LT2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.90
$3.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings Liquid Tight Straight Connectors - Zinc Die Cast with NPT Threads

Professional liquid tight conduit connection with superior sealing performance

Bridgeport Fittings delivers professional-grade liquid tight straight connectors engineered for reliable conduit connections in demanding environments. These zinc die cast connectors feature NPT threads, knockout gaskets, and internal sealing rings for superior water protection. Available in trade sizes 3/8" to 4", these UL-Listed connectors are compatible with both metallic and non-metallic Type B liquid tight conduit, providing versatile installation options for electrical professionals.

Professional Features & Benefits

  • Zinc Die Cast Construction: Provides precise fit and finish for trouble-free performance and ease of assembly in professional installations.
  • NPT Threads with Sealing System: Features knockout gasket and internal sealing ring for reliable water exclusion and environmental protection.
  • NEMA TYPE 2, 3, 3R, 4 and 12 Rating: Meets stringent environmental standards for indoor and outdoor electrical applications requiring moisture protection.
  • UL-Listed Performance: File E9391 certification ensures compliance with safety standards for professional electrical installations.
  • Ball Burnished Finish: Mirror smooth surface treatment enhances corrosion resistance and professional appearance.
  • Dual Conduit Compatibility: Listed for use with both metallic and non-metallic Type B liquid tight conduit for installation flexibility.
  • American Manufacturing Quality: Supports domestic manufacturing with consistent quality control and reliable supply chain.

Technical Specifications

  • Buy American: When you buy Bridgeport, you support an American manufacturing company
  • Department: Electrical
  • Division: Electrical H1
  • Field Application: Straight connector for use with metallic and non-metallic "Type B" liquid tight conduit. Liquidtigh
  • Greater Flexibility: Zinc connectors are available in trade sizes 3/8" to 4" and are listed for use with both metallic a
  • Keeps Water Out: Liquid tight straight connectors feature NPT threads, a knockout gasket and internal sealing ring f
  • Nema Rating: FB-1
  • Npd Date Electrical: 2008-07-01T00:00:00.000Z
  • Product Finish: Ball burnished, mirror smooth
  • Product Material: Zinc Die Cast
  • Professional Performance: Bridgeport's liquid tight fittings are UL-Listed, NEMA TYPE 2, 3, 3R, 4 and 12, and meet all of the
  • Sub Division: Electrical-E H2
  • Superior Quality: Die cast zinc connectors feature a precise fit and finish for a trouble-free performance, ease of a
  • Ul File: E9391

Professional Applications

  • Industrial Control Panels and Electrical Enclosures
  • Commercial Building Electrical Systems
  • Manufacturing Facility Wiring
  • Outdoor Electrical Installations
  • Food Processing and Wash-Down Areas
  • Marine and Coastal Electrical Applications
  • HVAC Equipment Connections

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings combines American manufacturing excellence with UL-Listed safety certification and comprehensive NEMA environmental ratings. The zinc die cast construction with ball burnished finish ensures long-term durability and professional performance in demanding electrical applications, backed by decades of industry experience and reliable quality control.

Manufacturer Resources

Product Specs

Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Finish:
Ball burnished, mirror smooth
Product Material:
Zinc Die Cast
Sub Division:
Electrical-E H2
Certifications:
E9391
Product Type:
Straight Liquidtight Connector
Product Subgroup:
Liquidtight Conduit & Fittings
Product Group:
Conduit & Raceway

Bridgeport Fittings 430-LT2 – Frequently Asked Questions

1) Will Bridgeport liquid tight straight connectors work with non-metallic liquidtight conduit, or only metallic?
Both. The Bridgeport LT2 zinc die cast straight connectors are listed for use with metallic and non-metallic Type B liquid tight conduit, so the same fitting covers LFMC and LFNC-B runs on the same job.
2) Are these liquid tight connectors rated for outdoor and wash-down use?
The Bridgeport LT2 straight connectors are UL-Listed under file E9391 and carry NEMA TYPE 2, 3, 3R, 4 and 12 ratings, which covers outdoor rain-exposed enclosures, industrial control panels and hosedown areas such as food processing. Sealing comes from NPT threads plus a knockout gasket and internal sealing ring.
3) Do I need a separate sealing washer to get a watertight enclosure entry with these connectors?
No extra gasket to buy. Each LT2 connector ships with the knockout gasket and internal sealing ring that make the enclosure entry watertight, and the body threads are NPT so they thread into tapped hubs directly or take a locknut through a knockout.
4) What is the difference between the Bridgeport 432-LT2 and the RACO 4734 for a 1 inch liquidtight run?
Both land on 1 inch Type B liquidtight conduit, but they are different fittings. The Bridgeport 432-LT2 is the 1 inch size of the zinc die cast straight connector, with NPT threads and a ball burnished, mirror smooth finish. The RACO 4734 is a SWIVEL-LOK 1 inch Type B liquidtight multi-position connector made of nylon and supplied in a pack of 100. Choose the zinc straight connector for a fixed straight entry into the enclosure; choose the nylon multi-position fitting when the conduit has to approach the box at an angle you set in the field.
5) What trade sizes do the Bridgeport LT2 liquid tight straight connectors come in?
Nine trade sizes, 3/8 inch through 4 inch: 3/8 (429-LT2), 1/2 (430-LT2), 3/4 (431-LT2), 1 (432-LT2), 1-1/2 (434-LT2), 2 (435-LT2), 2-1/2 (436-LT2), 3 (437-LT2) and 4 inch (439-LT2). Match the connector size to the conduit trade size, not to the box knockout.
6) Straight or 90 degree liquid tight connector for a motor or HVAC unit connection?
Use the straight LT2 when the conduit approaches the enclosure in line with the knockout and you have room for the conduit to run off the fitting. If the conduit has to turn immediately at the box, or clearance behind the equipment is tight, an angle connector is the right choice instead; the LT2 series covered here is the straight configuration only.
7) Zinc die cast versus nylon liquidtight connectors - which should I spec?
The Bridgeport LT2 body is zinc die cast with a ball burnished, mirror smooth finish, which gives you a metallic fitting that maintains the metal path on LFMC and stands up to mechanical abuse in industrial panels. A nonmetallic option such as the RACO 4734 SWIVEL-LOK 1 inch Type B liquidtight connector is nylon and multi-position, which suits corrosive or dielectric applications and awkward approach angles rather than heavy-duty metallic runs.
8) Will these thread into a tapped hub on a control panel?
Yes. The LT2 connectors use NPT threads, so they thread straight into an NPT tapped hub or conduit body; through a plain knockout you use the supplied knockout gasket and a locknut. Size the fitting to the conduit trade size, 3/8 inch up to 4 inch.
9) Can I use a Burndy BONDIT or Tapit connector in place of a liquidtight conduit connector?
No. The Bridgeport LT2 is a conduit connector that terminates metallic and non-metallic Type B liquid tight conduit at an enclosure with NPT threads and a sealing ring. The Burndy BDTIBB BONDIT is a wall mount intersystem bonding connector in stainless steel for #14 to #2 AWG conductors, and the Burndy UCCOVER1BOX25 is a polyethylene cover for Tapit tap connectors. Both are conductor-level bonding and tap accessories, not conduit terminations, so neither will land conduit on a box.
10) Does the finish on these Bridgeport connectors help with corrosion in coastal installations?
The zinc die cast body is ball burnished to a mirror smooth surface, which removes casting roughness and improves corrosion resistance, and the connectors are called out for marine and coastal electrical work along with outdoor installs. For continuous salt spray immersion, a nonmetallic fitting is the usual alternative.
11) Are Bridgeport liquid tight fittings made in the USA?
Bridgeport Fittings is an American manufacturing company, and the LT2 zinc liquid tight straight connectors are part of that domestic line, which matters on jobs carrying Buy American provisions.
12) Does the RACO 232MSCM square box work with the Bridgeport LT2 connectors?
They serve different parts of the same termination. The RACO 232MSCM is a 4 in. square welded box, 2-1/8 in. deep, with a STAB-IT connector and M bracket - it is the enclosure, not the conduit fitting. The Bridgeport LT2 straight connectors are the NPT-threaded liquidtight terminations that land conduit into an enclosure knockout, using a knockout gasket and internal sealing ring. Match the LT2 trade size, offered from 3/8 inch through 4 inch, to the knockout you intend to use.
