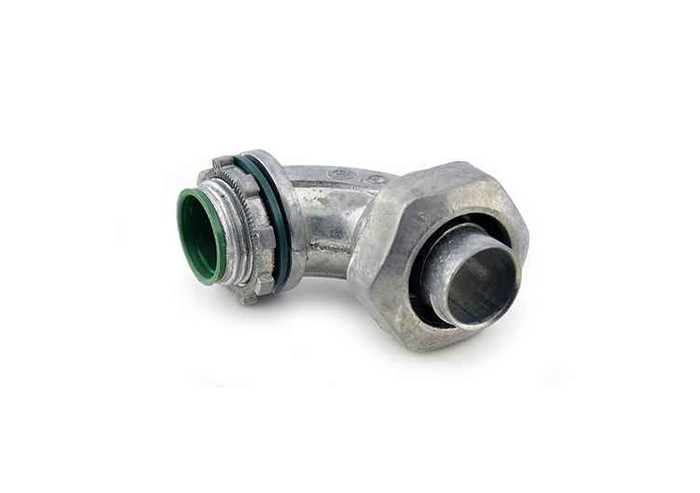

Bridgeport Fittings 90° Liquid Tight Connectors - Die Cast Zinc with NPT Threads

Bridgeport Fittings 90° Liquid Tight Connectors - Die Cast Zinc with NPT Threads

(No reviews yet) Write a Review

Model: 470-LT2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings 90° Liquid Tight Connectors - Die Cast Zinc with NPT Threads

Professional electrical connections with superior water protection

Bridgeport Fittings delivers reliable 90° liquid tight connectors engineered for professional electrical installations. These die cast zinc connectors feature NPT threads, knockout gaskets, and internal sealing rings to provide superior water protection while maintaining secure electrical connections in demanding environments.

Professional Features & Benefits

  • 90° Design: Provides optimal cable routing in tight spaces while maintaining secure connections and reducing installation complexity.
  • Die Cast Zinc Construction: Delivers exceptional durability and corrosion resistance for long-lasting performance in various environmental conditions.
  • NPT Threads with Sealing: Features knockout gasket and internal sealing ring to ensure reliable water-tight protection against moisture infiltration.
  • Zinc Electro-Plate Finish: Provides enhanced corrosion protection and professional appearance for lasting reliability.
  • UL Listed Performance: Meets rigorous safety standards with UL File E9391 certification for professional confidence.
  • NEMA TYPE Ratings: Certified for NEMA TYPE 2, 3, 3R, 4 and 12 applications ensuring versatile installation options.
  • Insulated Protection: Protects inner wiring from abrasion and environmental damage for enhanced system reliability.

Technical Specifications

  • Buy American: When you buy Bridgeport, you support an American manufacturing company
  • Department: Electrical
  • Division: Electrical H1
  • Insulated Connector: Insulated connectors offer additional peace of mind by protecting inner wiring from abrasion and up
  • Keeps Water Out: Liquid tight 90-degree connectors feature NPT threads, a knockout gasket and internal sealing ring
  • Nema Rating: FB-1
  • Product Finish: Zinc electro-plate
  • Product Material: Zinc Die Cast
  • Professional Performance: Bridgeport's liquid tight fittings are UL-Listed, NEMA TYPE 2, 3, 3R, 4 and 12, and meet all of the
  • Sub Division: Electrical-E H2
  • Ul File: E9391

Professional Applications

  • Industrial Control Panels
  • Outdoor Electrical Enclosures
  • Commercial Building Systems
  • Manufacturing Equipment
  • Marine and Wet Location Installations
  • HVAC System Connections
  • Process Control Applications

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings represents American manufacturing excellence with UL-Listed products that meet stringent NEMA TYPE standards. The zinc electro-plate finish and die cast construction ensure long-term reliability, while comprehensive NEMA ratings provide confidence for diverse professional applications requiring superior water protection.

Manufacturer Resources

Product Specs

Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Finish:
Zinc electro-plate
Product Material:
Zinc Die Cast
Sub Division:
Electrical-E H2
Certifications:
E9391
Product Type:
Connector
Product Subgroup:
Electrical

Bridgeport Fittings 470-LT2 – Frequently Asked Questions

1) Are these liquid tight connectors rated for outdoor and wet locations?
Yes. The Bridgeport 90 degree liquid tight connectors are UL Listed under file E9391 and carry NEMA TYPE 2, 3, 3R, 4 and 12 ratings, which covers outdoor enclosures, washdown and dust-laden areas. The seal comes from NPT threads plus a knockout gasket on the enclosure side and an internal sealing ring on the conduit side.
2) What is the difference between the 475-LT2 and the 475-LTI2 2 inch connector?
Both are 2 inch 90 degree cast zinc liquid tight connectors. The 475-LTI2 adds an insulated throat rated 105 degrees C, which protects conductor insulation from abrasion at the entry point. Many jobs and inspectors want the insulated version on larger trade sizes pulling THHN; if your spec calls for an insulated throat, order the LTI2.
3) What is the alternative to a Bridgeport 472-LT2 if the conduit needs to enter the box at an angle other than 90 degrees?
The Bridgeport 472-LT2 is the 1 inch size of the die cast zinc 90 degree liquid tight connector, so the elbow angle is fixed at 90 degrees. When the run needs a different approach angle, the RACO 4734 is a 1 inch Type B liquidtight multi-position connector in nylon, so it covers the same 1 inch trade size while allowing the body to be set to the position the run needs. Note the material difference: the Bridgeport body is zinc die cast with a zinc electro-plate finish, while the RACO 4734 is nylon.
4) Is the RACO 4734 a direct replacement for a 1 inch Bridgeport liquid tight connector?
Both are 1 inch liquidtight connectors, but they are not identical parts. The Bridgeport 472-LT2 is a fixed 90 degree elbow in zinc die cast with NPT threads, a knockout gasket and an internal sealing ring, UL listed under file E9391 and rated for NEMA Type 2, 3, 3R, 4 and 12. The RACO 4734 is a nylon Type B multi-position connector in the SWIVEL-LOK series and is supplied in packs of 100. If the specification calls for a metallic body or a set 90 degree entry, the Bridgeport part is the one that matches; if the job wants a nonmetallic body and adjustable positioning, the RACO is the match.
5) Do I need a separate sealing washer to keep the enclosure knockout watertight?
No extra washer to buy. Each Bridgeport 90 degree liquid tight connector ships with a knockout gasket for the enclosure wall and an internal sealing ring for the conduit, so the NPT thread entry and the conduit entry are both sealed as supplied. You still need a locknut set tight against the gasket for the seal to work.
6) Will a 90 degree liquid tight connector work where I don't have room behind the box?
That is what the 90 degree body is for. It turns the conduit immediately at the enclosure wall instead of requiring straight run-out behind it, so it fits tight equipment pockets, motor terminal boxes and panels mounted close to a wall. If you need the conduit to leave at an adjustable angle rather than a fixed 90, a multi-position type such as the RACO 4734 SWIVEL-LOK 1 inch Type B liquidtight connector is the other approach.
7) Is the connector body metal, and will it corrode in a damp plant environment?
The body is zinc die cast with a zinc electro-plate finish, which is the standard corrosion-resistant metal fitting for indoor, outdoor and wet-location electrical work. It is a metallic fitting, so it maintains the metal path through the enclosure wall, unlike nylon liquidtight connectors such as the RACO 4734, which are non-metallic.
8) Do these connectors have NPT threads that will thread into a conduit hub?
Yes, the male end is NPT threaded, so it will take a standard locknut through a knockout or thread directly into an NPT hub or threaded boss on an enclosure. Trade sizes offered are 3/8 through 2 inch.
9) Which connectors look like substitutes for a Bridgeport LT2 liquid tight connector but are not?
Several parts carry the word connector without doing the same job. The Burndy BDTIBB BONDIT is a wall mount intersystem bonding connector in stainless steel for #14 to #2 AWG - a grounding and bonding device, not a conduit termination. The Burndy UCCOVER1BOX25 Tapit is a polyethylene cover for a tap connector, an insulating accessory. The RACO 232MSCM is a 4 inch square welded box 2-1/8 inch deep with a STAB-IT connector and M bracket, which is an outlet box rather than a fitting. The only true liquidtight conduit termination among them is the RACO 4734. The Bridgeport LT2 parts are the fittings that terminate liquidtight conduit into an enclosure with NPT threads and a knockout gasket.
10) Are Bridgeport liquid tight connectors made in the USA for Buy American jobs?
Bridgeport Fittings is an American manufacturing company, which is why these connectors come up on public work where domestic sourcing is part of the spec. The fittings are also UL Listed under file E9391 and meet NEMA FB-1.
