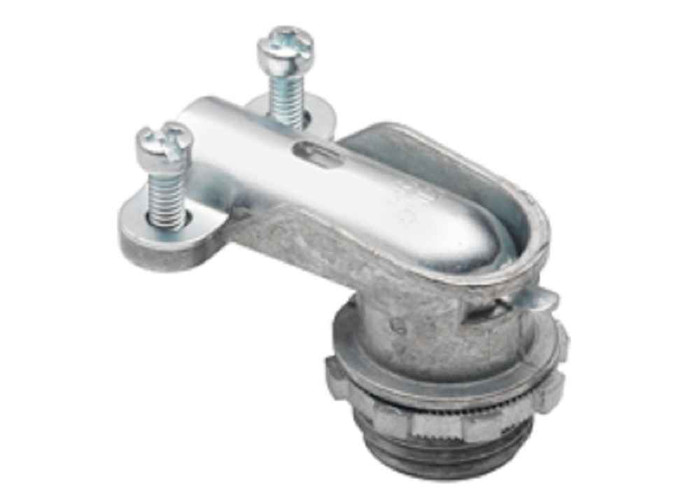

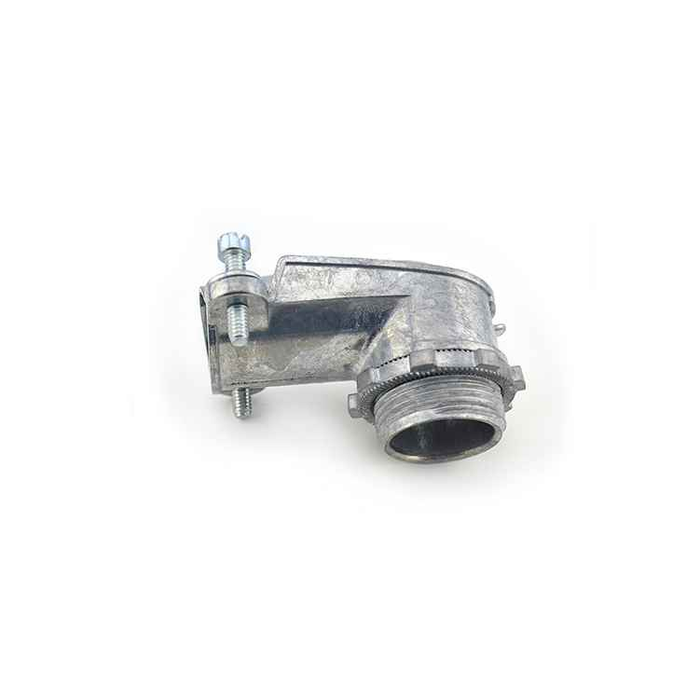

Bridgeport Fittings 90° Die Cast Zinc Electrical Connectors with Steel Cover Protection

Bridgeport Fittings 90° Die Cast Zinc Electrical Connectors with Steel Cover Protection

(No reviews yet) Write a Review

Model: 801-DC2
$1.97

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings 90° Die Cast Zinc Electrical Connectors with Steel Cover Protection

Professional quality electrical connectors for reliable cable management

Bridgeport Fittings 90° Die Cast Zinc Electrical Connectors deliver professional-grade performance with precision-engineered zinc die cast construction and steel cover protection. These UL listed connectors feature a ball burnished, mirror smooth finish and two-screw design for secure cable protection in electrical applications requiring NEMA FB-1 rated performance.

Professional Features & Benefits

  • Die Cast Zinc Construction: Provides precise fit and finish for trouble-free performance and excellent durability in demanding electrical environments.
  • Steel Cover Protection: Two-screw steel cover design secures and protects inner cable from environmental factors and mechanical damage.
  • Ball Burnished Finish: Mirror smooth surface treatment ensures professional appearance and enhanced corrosion resistance.
  • NEMA FB-1 Rating: Meets stringent electrical enclosure standards for reliable performance in specified environmental conditions.
  • UL Listed & RoHS Compliant: Certified safety compliance ensures code adherence and environmental responsibility in professional installations.
  • 90° Configuration: Right-angle design provides space-efficient cable routing solutions in tight installation spaces.

Technical Specifications

  • Country Of Origin: United States
  • Department: Electrical
  • Division: Electrical H1
  • Nema Rating: FB-1
  • Npd Date Electrical: 2008-07-01T00:00:00.000Z
  • Product Finish: Ball burnished, mirror smooth
  • Product Material: Zinc Die Cast
  • Safety Compliance: Bridgeport 90-degree connectors are UL listed and RoHS compliant
  • Steel Cover: Steel cover and two-screw design secures and protects inner cable
  • Sub Division: Electrical-E H2
  • Zinc Body: Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent

Professional Applications

  • Commercial Electrical Installations
  • Industrial Wiring Systems
  • Residential Electrical Projects
  • Professional Electrical Contracting
  • Maintenance and Repair Operations
  • Code-Compliant Electrical Work

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers reliable electrical connector solutions with UL listed safety compliance and RoHS environmental responsibility. The precision die cast zinc construction with steel cover protection ensures long-term durability and professional performance in demanding electrical applications.

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Finish:
Ball burnished, mirror smooth
Product Material:
Zinc Die Cast
Sub Division:
Electrical-E H2
Product Type:
AC/MC/Flex Connector
Product Subgroup:
Flexible Conduit & Fittings
Product Group:
Conduit & Raceway

Bridgeport Fittings 801-DC2 – Frequently Asked Questions

1) What flex trade sizes do the Bridgeport 90 degree die cast zinc connectors come in, and what knockout does each need?
Five sizes are offered, and the knockout matches the flex trade size on all but the smallest. The 801-DC2 is 3/8 inch flex into a 1/2 inch K.O.; 804-DC2 is 1/2 inch flex into a 1/2 inch K.O.; 806-DC2 is 3/4 inch into 3/4 inch; 807-DC2 is 1 inch into 1 inch; 808-DC2 is 1-1/4 inch into 1-1/4 inch. So if you are running 3/8 inch flex, you still punch or use an existing 1/2 inch knockout.
2) Are the Bridgeport 90 degree zinc die cast connectors UL listed and RoHS compliant?
Both. The 90 degree die cast zinc connectors are UL listed and RoHS compliant, and they carry a NEMA FB-1 rating.
3) Which Bridgeport 90 degree connector fits 14/4 to 10/4 cable?
That is the 801-DC2, the 3/8 inch flex trade size version, covering a 14/4 to 10/4 cable range. It lands in a 1/2 inch knockout.
4) I need a 1 inch flex connector but the box is in open wall with room to run straight in - is there a straight version instead of the 90 degree?
For a straight pull on 1 inch flexible metal conduit, the Thomas & Betts 306 Tite-Bite is a straight FMC fitting in the 1 inch size, supplied non-insulated. The Bridgeport 807-DC2 covers the same 1 inch flex trade size with a 1 inch knockout but routes the cable at a right angle, which is what you want only when the wall cavity or panel gutter will not accept a straight entry. Both land in a 1 inch KO, so the decision is purely about the approach angle and whether you need the two-screw steel cover over the cable.
5) Why choose a 90 degree connector instead of a straight flex connector?
The right angle body turns the cable immediately at the box, so you are not fighting for bend radius behind a panel or against a wall or joist. Where there is room to run the whement straight in, a straight fitting like the Thomas & Betts 306 Tite-Bite for 1 inch FMC does the job with fewer parts to align. The Bridgeport 90 degree die cast zinc connectors are the ones to reach for in tight spaces and shallow cavities.
6) How does the cable get clamped in these 90 degree connectors?
A steel cover held by two screws clamps down over the cable inside the elbow, securing it and protecting it from mechanical damage. You back the screws out, lay the cable in, and tighten the cover down, which is why these are a common choice where a cable needs to be dressed into the fitting rather than pushed through.
7) What are these connectors made of, and will they hold up in a damp mechanical room?
The body is zinc die cast with a ball burnished, mirror smooth finish, which gives corrosion resistance beyond a raw casting, plus a steel clamping cover. The NEMA FB-1 rating covers fittings for use in the environmental conditions it specifies. For a wet location where a liquidtight seal is the requirement, a liquidtight fitting such as the RACO 4734 SWIVEL-LOK 1 inch Type B nylon connector is the different animal you want.
8) I need to standardize flex connectors across a portfolio of buildings. Does one part cover 3/8 through 1-1/4 inch?
No single part covers the range. The 90 degree die cast zinc line is sized per flex trade size, so you would stock 801-DC2 (3/8 inch), 804-DC2 (1/2 inch), 806-DC2 (3/4 inch), 807-DC2 (1 inch) and 808-DC2 (1-1/4 inch). All five share the same zinc die cast body and two-screw steel cover, so the install method is identical across the shelf.
9) We were sent a 3M SC0001 stem connector on a job that specified Bridgeport 90 degree fittings - are these interchangeable?
They are not. The 3M SC0001 is a stem connector rated up to 35 kV for 2 and 1 AWG conductors - a medium voltage conductor connection device. The Bridgeport 90 degree fitting is a die cast zinc raceway connector that mechanically terminates flexible cable into a knockout, with a two-screw steel cover clamping the cable, and is sized by flex trade size from 3/8 inch to 1-1/4 inch rather than by conductor AWG. Substituting one for the other is not a like for like swap in any part of the job.
10) I am standardizing flex fittings across a building - do I have to pick one angle, or can I mix straight and 90 degree from the same size family?
You can mix by opening condition and keep the trade sizes consistent. The Bridgeport 90 degree die cast zinc connectors run 3/8 inch flex into a 1/2 inch KO, 1/2 inch flex into a 1/2 inch KO, 3/4 inch into 3/4 inch, 1 inch into 1 inch, and 1-1/4 inch into 1-1/4 inch, all UL listed and RoHS compliant. For the straight runs in the same 1 inch size, the Thomas & Betts 306 Tite-Bite is a straight FMC fitting. Keeping knockout sizes uniform across a facility means your punch list only has to track angle, not bore.
