Bridgeport Fittings 90° Flexible Metal Conduit Connector - Zinc Die Cast with Steel Cover

Bridgeport Fittings 90° Flexible Metal Conduit Connector - Zinc Die Cast with Steel Cover

(No reviews yet) Write a Review

Model: 809-DC2
$45.89

In Stock (leaves warehouse same day if ordered before 3pm ET)

$45.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

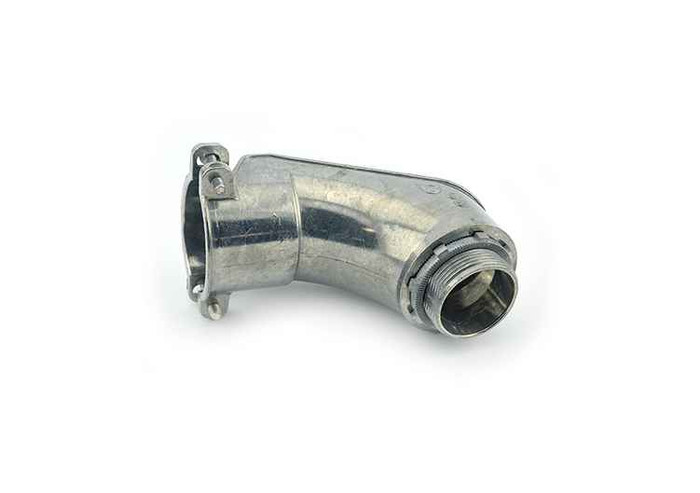

Bridgeport Fittings 90° Flexible Metal Conduit Connector - Zinc Die Cast with Steel Cover

Professional 90-degree connector for secure flexible metal conduit connections

Bridgeport Fittings delivers professional-grade 90° flexible metal conduit connectors engineered for reliable electrical connections. This zinc die cast connector features a steel cover with two-screw design for secure inner conduit attachment, providing precise fit and finish for trouble-free performance in electrical box and enclosure applications.

Professional Features & Benefits

  • 90-Degree Design: Enables clean right-angle connections between flexible metal conduit and electrical boxes or enclosures for optimal space utilization
  • Zinc Die Cast Construction: Provides precise fit and finish with excellent durability for long-term reliable performance
  • Steel Cover with Two-Screw Design: Secures inner conduit firmly in place, preventing loosening and maintaining connection integrity
  • Ball Burnished Mirror Smooth Finish: Delivers professional appearance and corrosion resistance for extended service life
  • UL Listed & RoHS Compliant: Meets safety standards and environmental compliance requirements for professional installations
  • NEMA FB-1 Rating: Certified for appropriate environmental conditions and electrical applications

Technical Specifications

  • Country Of Origin: United States
  • Department: Electrical
  • Division: Electrical H1
  • Field Application: 90 Degrees connector suitable for used to connect flexible metal conduit to box or enclosure.
  • Nema Rating: FB-1
  • Npd Date Electrical: 2008-07-01T00:00:00.000Z
  • Product Finish: Ball burnished, mirror smooth
  • Product Material: Zinc Die Cast
  • Safety Compliance: Bridgeport 90-degree connectors are UL listed and RoHS compliant
  • Steel Cover: Steel cover and two-screw design secures inner conduit
  • Sub Division: Electrical-E H2
  • Ul File: E9391
  • Zinc Body: Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent
  • f 90 Degree Fitting: Used to connect FMC to an electrical box or enclosure at a 90-degree angle

Professional Applications

  • Commercial Electrical Installations
  • Industrial Facility Wiring
  • Residential Electrical Systems
  • Maintenance and Retrofit Projects
  • Professional Electrical Contracting
  • Code-Compliant Conduit Connections

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings connectors deliver reliable performance with UL listing and RoHS compliance, ensuring professional installations meet safety and environmental standards. The zinc die cast construction with ball burnished mirror smooth finish provides lasting durability and professional appearance for demanding electrical applications.

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Finish:
Ball burnished, mirror smooth
Product Material:
Zinc Die Cast
Steel Cover:
Steel cover and two-screw design secures inner conduit
Sub Division:
Electrical-E H2
Certifications:
E9391
Product Type:
Connector
Product Subgroup:
Electrical

Bridgeport Fittings 809-DC2 – Frequently Asked Questions

1) Is the Bridgeport 90 degree FMC connector UL listed, and what is the UL file number?
UL listed and RoHS compliant, under UL file E9391. It also carries a NEMA FB-1 rating, which is the standard NEMA covers fittings for conduit and cable to.
2) Will this 90 degree connector work on liquidtight flexible metal conduit?
No. The DC2 90 degree fitting is a connector for standard flexible metal conduit (FMC, or Greenfield), clamping the flex under a steel cover with two screws. It provides no sealing gland or gasket, so it is not a substitute for a liquidtight connector on LFMC in a wet or damp location. For liquidtight flex you need an LFMC-specific connector with a sealing ring.
3) What is the Bridgeport DC2 90 degree connector actually used for?
It terminates flexible metal conduit into a box or enclosure at a right angle. You use it where the run has to turn immediately at the box and there is no room to sweep the flex, which is the usual situation on tight equipment connections and in crowded gutter or panel spaces. The flex is captured by a steel cover with two clamp screws that lock the inner conduit in place.
4) Are Bridgeport DC2 90 degree FMC connectors made in the USA?
Yes, country of origin is the United States. That matters if you are bidding public work with domestic-sourcing requirements on electrical materials.
5) What is the body made of, and how does it hold up in a damp mechanical room?
The body is die cast zinc, finished ball burnished to a mirror smooth surface, which gives it corrosion resistance and a clean fit at the knockout. Die cast zinc is a dry-location and general indoor commercial choice here, since this style of clamp connector is not sealed against water entry. For genuinely wet locations, specify a liquidtight fitting instead.
6) How is the flex secured in this connector, and do I need extra clamps?
A steel cover with two screws clamps down on the inner conduit, so the flex is held by the fitting itself, no separate clamp or bushing needed at the box. Tighten both screws evenly onto the convolutions so the connector cannot back off under vibration, which is the usual failure on equipment whips.
