Bridgeport Whipper-Snap® 90° Connector - Double-Screw Design

Bridgeport Fittings Whipper-Snap 90° AC/MC Cable Connector with Double-Screw Design

(No reviews yet) Write a Review

Model: 890-MC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$0.39
$0.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings Whipper-Snap 90° AC/MC Cable Connector with Double-Screw Design

Professional snap-on cable support for AC/MC applications

Bridgeport Fittings Whipper-Snap 90° AC/MC Cable Connector delivers reliable cable support with innovative double-screw design for secure installation. This professional-grade connector accommodates AC/MC cable sizes from 14/2 to 12/2, featuring zinc-plated steel construction for superior durability and corrosion resistance in demanding electrical applications.

Professional Features & Benefits

  • Cable Range Compatibility: Supports AC/MC cables from 14/2 (.475") to 12/2 (.525") for versatile installation applications
  • Zinc-Plated Steel Construction: Provides superior durability and corrosion resistance in harsh environments for long-lasting performance
  • Double-Screw Design: Ensures secure mounting and reliable cable support with enhanced holding power
  • 90° Connector Configuration: Optimizes cable routing in tight spaces and corner applications
  • NEMA FB-1 Rating: Meets professional electrical standards for reliable field performance
  • UL Listed: File E161206 ensures compliance with safety and performance standards
  • RoHS/REACH/LEED Compliant: Meets environmental and sustainability requirements for modern construction projects

Technical Specifications

  • Cable Range: AC/MC minimum size 14/2 (.475") to maximum size 12/2 (.525")
  • Collection Folder: 890-MC
  • Compliance Standards: Bridgeport straps are RoHS compliant, REACH compliant and LEED compliant
  • Country Of Origin: United States
  • Department: Electrical
  • Division: Electrical H1
  • Durability And Strength: Zinc Plated Steel offers superior durability and corrosion resistance in harsh environments

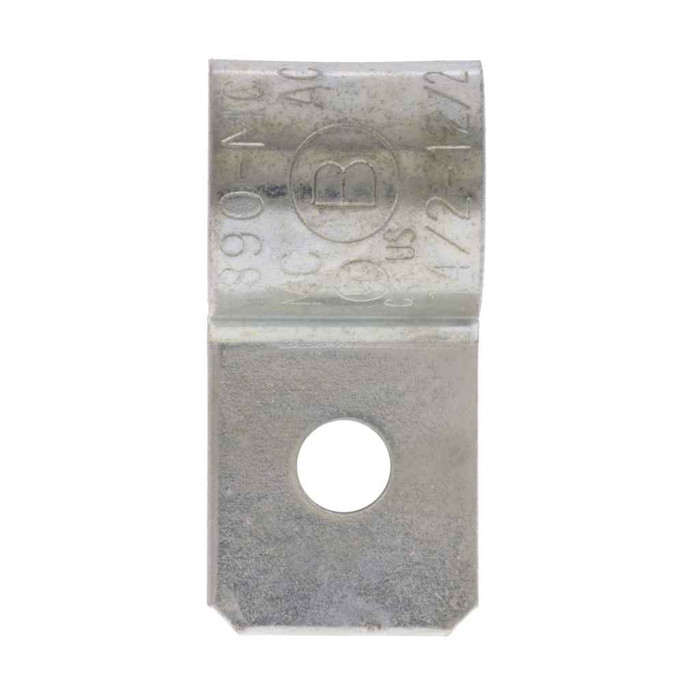

  • Field Application: Snap-on type strap used to support round steel or aluminum metal clad cable. Diameter for 14/2 (.47
  • Mounting Hole Size: Mounting hole size is 0.21"
  • Nema Rating: FB-1
  • Npd Date Electrical: 2008-07-01T00:00:00.000Z
  • Product Finish: Zinc electro-plate
  • Product Length: 1.375 in
  • Product Material: Steel
  • Product Weight: 1.8 lbs
  • Product Width: 0.625 in
  • Sub Division: Electrical-E H2
  • Ul File: E161206

Professional Applications

  • Residential electrical installations requiring AC/MC cable support
  • Commercial building electrical systems
  • Industrial facility cable management
  • Retrofit and renovation projects
  • Multi-unit residential properties
  • Professional electrical contractor applications

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability with UL Listed performance and comprehensive compliance standards including RoHS, REACH, and LEED requirements. The zinc electro-plate finish and steel construction ensure long-term durability, while USA manufacturing provides consistent quality and professional-grade performance for demanding electrical applications.

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Department:
Electrical
Division:
Electrical H1
Mounting Hole Size:
Mounting hole size is 0.21"
Nema Rating:
FB-1
Product Finish:
Zinc electro-plate
Product Length:
1.375 in
Product Material:
Steel
Product Weight:
1.8 lbs
Product Width:
0.625 in
Sub Division:
Electrical-E H2
Certifications:
E161206
Product Type:
AC/MC/Flex Connector
Product Subgroup:
Flexible Conduit & Fittings
Product Group:
Conduit & Raceway

Bridgeport Fittings 890-MC – Frequently Asked Questions

1) Will the Bridgeport 890-MC work with 12/2 MC cable, or is it 14/2 only?
Both. The 890-MC Whipper-Snap takes AC/MC cable from 14/2 at .475 inch diameter up to 12/2 at .525 inch diameter. Anything larger than .525 inch outside diameter is outside the range and won't seat properly.
2) What size screw or anchor do I need to mount the Bridgeport 890-MC?
The mounting hole is 0.21 inch, so a #8 screw or anchor passes through it. The double-screw design means two fasteners per fitting for the hold.
3) Is the Bridgeport 890-MC UL Listed for inspection sign-off?
It's UL Listed under file E161206 and carries a NEMA FB-1 rating, which is the standard an inspector looks for on cable fittings and supports.
4) Does the Bridgeport Whipper-Snap 90 degree connector work with aluminum MC as well as steel MC?
Yes. It's a snap-on type support for round steel or aluminum metal clad cable, within the 14/2 to 12/2 diameter range. The fitting body itself is zinc electro-plated steel.
5) Why use a 90 degree AC/MC connector instead of a straight one?
The 90 degree body turns the cable right at the box, so you can run MC into a box that sits tight against a wall, a joist, or another box with no room for a sweeping bend. On an open run with clearance behind the box, a straight connector is simpler and cheaper. Pick the 90 when the cable would otherwise have to bend tighter than its allowable radius.
6) Are Bridgeport Whipper-Snap MC connectors made in the USA and do they meet LEED and RoHS requirements for our spec?
Made in the United States, and Bridgeport lists these as RoHS, REACH and LEED compliant, which is what a sustainable-build or government spec usually asks for on fittings.
7) How much room does the Bridgeport 890-MC take up inside a crowded panel or box opening?
The fitting measures 1.375 in length and 0.625 in width, so it's a compact body for tight gutter space and corner routing.
