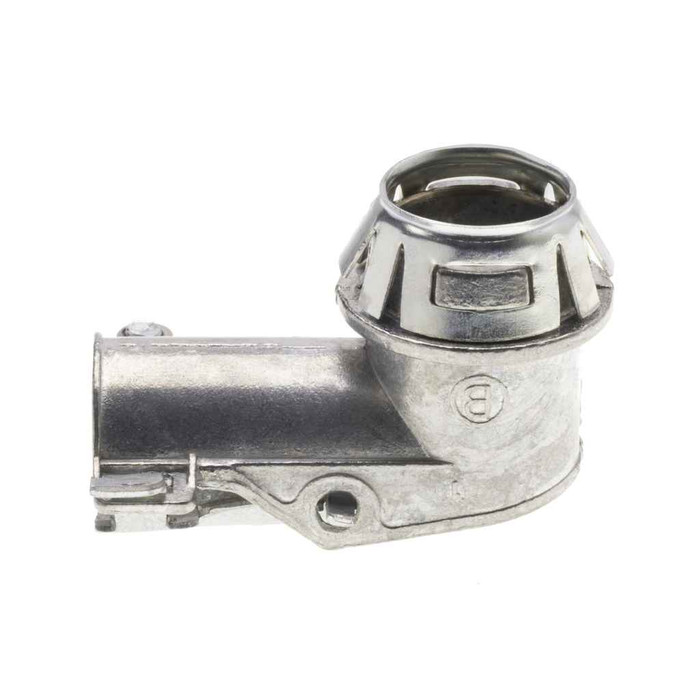

Bridgeport Fittings Whipper-Snap 3/8" 90° Electrical Connector with Single Screw Design
Professional 90-degree fitting for AC/MC and flexible metal conduit connections
The Bridgeport Fittings Whipper-Snap 3/8" 90° Electrical Connector delivers reliable performance for connecting AC/MC cable and flexible metal conduit to boxes or enclosures at perpendicular angles. Featuring zinc die cast construction with steel cover and ball burnished mirror smooth finish, this NEMA FB1 rated connector ensures professional installation quality with single-screw strap and snap-in design for efficient field work.
Professional Features & Benefits
- 3/8" Trade Size: Accommodates standard 3/8" AC/MC cable and flexible metal conduit for versatile electrical connections.
- 90° Configuration: Enables perpendicular connections to knockouts, providing flexible routing options in tight spaces.
- Single Screw Design: Features single-screw strap and snap-in installation for quick, secure cable or conduit attachment.
- Zinc Die Cast Construction: Corrosion-resistant die cast zinc body with steel cover provides durable, long-lasting performance.
- Ball Burnished Finish: Mirror smooth finish ensures precise fit and professional appearance in electrical installations.
- NEMA FB1 Rating: Meets stringent bonding and grounding requirements with NRTL listing for code compliance.
- American Manufacturing: Made in the United States with quality craftsmanship and reliable performance standards.
Technical Specifications
- Bpt Trade Size: 3/8"
- Buy American: When you buy Bridgeport, you buy from an American manufacturing company
- Collection Folder: 802SP
- Country Of Origin: United States
- Department: Electrical
- Field Application: 90 Degree Fitting with cover used for connecting AC/MC, Flexible Metal conduit to box or enclosure.
- Nema Rating: FB1
- Npd Date Electrical: 7/11/08
- Product Depth: 0.5 in
- Product Finish: Ball Burnished, Mirror Smooth
- Product Length: 1.375 in
- Product Material: Zinc Die Cast, Steel Cover
- Product Weight: 9.64 lbs
- Product Width: 1.3125 in
- Professional Performance: All Bridgeport fittings are NRTL listed and meet the stringent bonding and grounding requirements o
- Quick Installation: Featuring a single-screw strap and snap-in design, this connector secures cable or conduit in a fra
- Sub Division: Electrical-E H2
- Ul File: E9391
- Zinc Body: Corrosion resistant die cast zinc connectors feature a precise fit and finish for a trouble-free pe
- f 90 Degree Connections: This connector allows you to connect AC/MC cable or FMC to a knockout when approaching from a perpe
Professional Applications
- Residential electrical installations requiring 90-degree conduit connections
- Commercial building electrical systems with space constraints
- Industrial facilities needing flexible cable routing solutions
- Electrical panel and junction box connections
- Retrofit and renovation electrical work
- Professional electrical contractor installations
Why Choose Bridgeport Fittings Quality?
Bridgeport Fittings delivers reliable American-made quality with NRTL listing and NEMA FB1 rating compliance. The corrosion-resistant zinc die cast construction with ball burnished mirror smooth finish ensures long-term durability and professional performance in demanding electrical applications.
Manufacturer Resources
Product Specs
- Bpt Trade Size:
- 3/8"
- Country Of Origin:
- United States
- Department:
- Electrical
- Nema Rating:
- FB1
- Product Depth:
- 0.5 in
- Product Finish:
- Ball Burnished, Mirror Smooth
- Product Length:
- 1.375 in
- Product Material:
- Zinc Die Cast, Steel Cover
- Product Weight:
- 9.64 lbs
- Product Width:
- 1.3125 in
- Sub Division:
- Electrical-E H2
- Certifications:
- E9391
- Product Type:
- AC/MC/Flex Connector
- Product Subgroup:
- Flexible Conduit & Fittings
- Product Group:
- Conduit & Raceway
Bridgeport Fittings 802SP – Frequently Asked Questions
1) What cable sizes will the Bridgeport Whipper-Snap 802SP accept?
Cable range runs from 12/2 at .42 inch outside diameter up to 10/3 at .58 inch. Anything outside that OD window will not clamp properly under the single-screw strap, so oversize MC or larger multi-conductor runs need a different fitting.
2) Is the Bridgeport 802SP listed for grounding and bonding?
It carries a NEMA FB1 rating and is NRTL listed under UL file E9391, which covers the bonding and grounding requirements for this class of fitting. That is what inspectors look for on an AC/MC termination.
3) Can I use this connector for both AC/MC cable and flexible metal conduit?
Yes. The 802SP is a 90 degree fitting with cover for connecting AC/MC cable or flexible metal conduit (FMC) to a box or enclosure. Same fitting, either wiring method, as long as the cable OD falls in the .42 to .58 inch range.
4) Why use a 90 degree connector instead of a straight one?
A 90 lets you come into the knockout from a perpendicular direction, which is what you want when the cable runs parallel to the box face or when there is not enough depth behind a panel to sweep a straight fitting. Tight ceiling cavities, close-mounted junction boxes, and whip connections at equipment are the usual cases. If you have room to make the bend in the cable itself, a straight 3/8 inch connector is the simpler and cheaper choice.
5) How does the Whipper-Snap single screw design install?
The cable or conduit snaps into the connector and a single-screw strap clamps it down, so it is one screwdriver and one fastener per termination instead of two. The fitting body then snaps into the knockout. For an electrician terminating dozens of whips in a day, that is the main reason to choose this over a two-screw squeeze connector.
6) Is the Bridgeport 802SP made in the USA for Buy American jobs?
Country of origin is the United States. Bridgeport manufactures domestically, which is what government, school, and federally funded projects need documented on electrical fittings.
7) Is this connector corrosion resistant enough for damp or industrial areas?
The body is die cast zinc with a steel cover, ball burnished to a mirror smooth finish. Zinc die cast resists corrosion in normal indoor and general industrial conditions. It is not a raintight or wet-location fitting, so outdoor and washdown terminations need a listed watertight connector instead.
