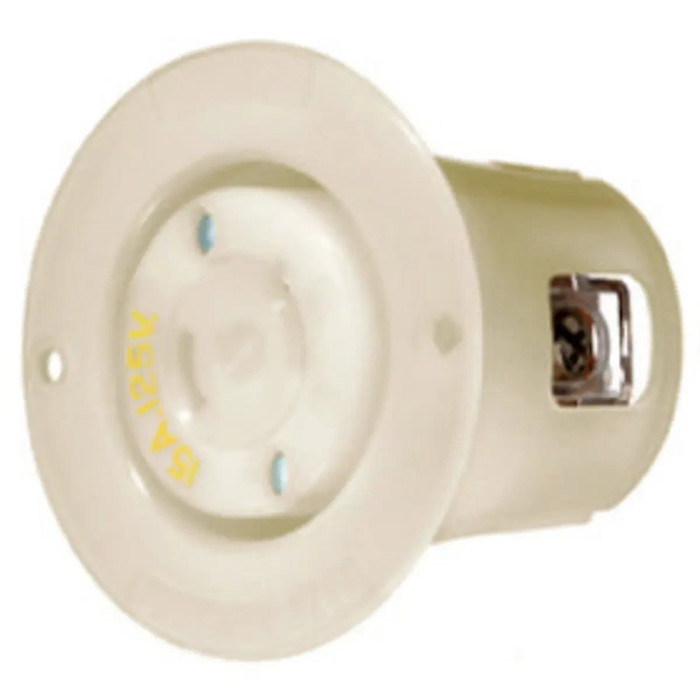

Bryant 7526 NEMA L1-15R Flanged Outlet Receptacle

Bryant 7526 NEMA L1-15R Flanged Outlet Receptacle

(No reviews yet) Write a Review

Model: BRY7526

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bryant 7526 NEMA L1-15R Flanged Outlet Receptacle

The Bryant NEMA L1-15R flanged outlet is a locking-style receptacle designed to mate exclusively with NEMA L1-15R locking plugs, delivering a secure, twist-lock connection for demanding electrical applications. Its flanged design allows for surface or panel mounting at a fixed connection point, rather than in-wall installation, making it well suited for commercial and industrial power distribution needs. This configuration is commonly specified where a stationary, locking outlet is preferred over a standard straight-blade device, helping to reduce the risk of accidental disconnection during operation. Manufactured by Bryant, a trusted name in professional-grade wiring devices, this flanged outlet is built to deliver dependable, code-compliant performance wherever a NEMA L1-15R locking connection is required.

Key Features

  • NEMA L1-15R Configuration: Mates exclusively with NEMA L1-15R locking-style plugs for a secure, twist-lock connection that resists accidental disconnection.
  • Flanged Outlet Design: A surface- or panel-mount flange allows this receptacle to be installed as a fixed connection point on equipment, enclosures, or structures rather than as a standard wall-mounted device.
  • Locking Retention: The twist-lock engagement of the NEMA L1-15R configuration helps prevent accidental unplugging in applications subject to vibration, movement, or heavy equipment use.
  • Fixed-Point Installation: Intended for permanent mounting rather than in-wall use, the 7526 provides a dedicated locking connection point for equipment or power distribution setups.
  • Reduced Downtime Risk: The locking interface helps maintain continuous power delivery in applications where an accidental disconnect would interrupt operations.
  • Bryant Build Quality: Manufactured by Bryant, a recognized supplier of wiring devices for professional commercial and industrial electrical installations.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Locking-Style Power Connections
  • Fixed Equipment and Panel-Mount Wiring
  • Generator and Portable Equipment Connection Points
  • Renovation and New Construction Projects

Why Bryant?

Bryant is a well-established manufacturer of professional-grade wiring devices trusted by electricians, contractors, and facility managers across commercial and industrial markets. The flanged NEMA L1-15R outlet reflects Bryant's focus on dependable, code-compliant connection points for locking-style electrical systems where a secure, fixed-mount receptacle is required. By choosing a Bryant flanged outlet, electrical professionals gain a locking connection point built for consistent, reliable performance in demanding installation environments where standard straight-blade devices are not suitable.

Manufacturer Resources

Bryant Full Line Catalog

Product Specs

list_batch:
BRY-20260909
Product Type:
Flanged Outlet
Configuration:
NEMA L1-15R
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Bryant BRY7526 – Frequently Asked Questions

1) What plug does the Bryant 7526 flanged outlet accept?
The Bryant 7526 is a NEMA L1-15R configuration, so it accepts NEMA L1-15P twist-lock plugs only. L1-15 is a 2-pole, 2-wire non-grounding locking pattern rated 125 volts, 15 amps, so a cord cap of any other NEMA pattern will not engage it. If the equipment cord ends in a straight-blade 5-15P or in a grounding locking cap like L5-15P, this is the wrong receptacle for it.
2) Is the Bryant 7526 a wall outlet or does it mount on equipment?
It is a flanged outlet, meant to be fastened to a surface or panel as a fixed connection point on equipment, an enclosure, or a structure. It is not an in-wall device and does not install in a standard device box behind a wall plate. If you need an in-wall locking receptacle, specify a standard single-receptacle locking device instead of a flanged outlet.
3) Does the Bryant 7526 L1-15R outlet provide a ground connection?
No. The NEMA L1-15 pattern is 2-pole, 2-wire with no equipment grounding conductor, so the 7526 gives you a hot and a neutral only. On any installation where the equipment requires a grounding path through the cord, this pattern will not satisfy it and you need a grounding locking configuration such as L5-15.
4) What locking receptacle should I use instead of the Bryant 7526 when the equipment needs a higher-amperage twist-lock connection?
The Bryant 7526 is a NEMA L1-15R flanged locking outlet, so it is limited to that single locking configuration. When the load calls for a much larger twist-lock connection, the Eaton 7379 industrial locking receptacle is rated 50A at 600V/250V AC/DC and is built as an extra heavy duty device. The Pass & Seymour 3330 Turnlok single receptacle is another turn-locking option at 30A, though it uses a non-NEMA configuration, so the mating plug must be matched to the Turnlok pattern rather than to a NEMA chart.
5) Can I use a standard 15A straight-blade receptacle in place of the Bryant 7526?
Not as a direct substitute. The 7526 mates exclusively with NEMA L1-15R locking plugs and twist-locks to resist accidental disconnection, and it is a flanged device meant to be surface or panel mounted rather than set in a wall box. A straight-blade 15A device such as the Eaton Arrow Hart 5262W, a heavy-duty industrial duplex in 5-15R at 15A 125V, or the Eaton 816W commercial specification grade 15A single receptacle, accepts ordinary 5-15P cord caps and offers no locking retention. Choose those only if the cord set is straight-blade and the connection does not need to stay locked under vibration.
6) For a hazardous location, is the Bryant 7526 flanged outlet an acceptable choice?
The Bryant 7526 is a general-purpose NEMA L1-15R locking flanged outlet for commercial and industrial power distribution and carries no hazardous-location construction. Where the area classification requires it, the Appleton FSQC Series interlocked explosionproof receptacle is built for that duty, and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set is a 3-pole factory-sealed pairing that includes the mating plug. Both are selected off the area classification on the drawing rather than off the NEMA configuration alone.
7) Why use a twist-lock outlet instead of a standard straight-blade receptacle?
The locking interface is about retention. A twist-lock engagement holds the cord cap mechanically, so vibration, equipment movement, or a tug on the cord does not pull the connection apart the way it can on a straight-blade device. That matters on generator hookups, portable equipment, and any circuit where an accidental disconnect stops a process. Where retention is not a concern and cords get swapped often, a straight-blade industrial device like the Eaton Arrow Hart 5262W (15A 125V, 5-15R) is the simpler choice.
8) What is the exact part number to order for the Bryant L1-15R flanged outlet?
Order Bryant 7526. That is the manufacturer part number for the NEMA L1-15R flanged outlet, and it is the single model offered under it, so there are no finish or amperage variants to pick.
9) I need a locking receptacle for a higher-amperage load, not 15A. What else is there?
The 7526 is limited to the L1-15 pattern, which is a 15 amp, 125 volt configuration. For heavier locking connections, ZenSupply carries the Eaton 7379 industrial locking receptacle rated 50A, 600V/250V AC/DC, and the Pass & Seymour Turnlok 3330, a 30A non-NEMA single receptacle. Match the pattern to the cord cap already on the equipment before you pick one, since Turnlok non-NEMA patterns will not mate with NEMA locking caps.
10) Can I use the Bryant 7526 in a hazardous or classified area?
No. It is a general-purpose commercial and industrial wiring device, not an explosionproof or factory-sealed assembly. For classified locations, look at the Appleton FSQC Series interlocked explosionproof receptacle or the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set.
11) Will the Bryant 7526 replace an existing L1-15R flanged outlet on my machine?
If what is coming off the equipment is an L1-15R flanged outlet, the 7526 gives you the same NEMA pattern and the same flanged, surface or panel mounting arrangement, so the cord caps in the field keep working. Check the existing flange hole pattern and cutout against the replacement before you commit, since flange footprints are not standardized across brands.
12) I need a 20A 125V receptacle for sensitive electronics, not a locking outlet. What takes the place of the Bryant 7526?
The 7526 is a NEMA L1-15R locking flanged outlet and does not serve a 20A isolated-ground branch. For that, the Pass & Seymour IG5362-I is a heavy-duty spec-grade isolated ground duplex receptacle rated 20A 125V. If the requirement is scheduled load control instead of isolated ground, the Pass & Seymour PLT26351 is a heavy duty spec grade plug load timer receptacle, also 20A 125V. Neither offers a twist-lock connection, so any existing L1-15 cord cap would have to change with them.
13) My circuit is 277V. Will the Bryant 7526 work on it?
The 7526 is built to the NEMA L1-15R configuration, which is a 125V locking pattern, so it is not the device for a 277V branch. For 277V work the Pass & Seymour 5762 is a duplex self-grounding receptacle rated 15A 277V in a specification grade build. Confirm the cord cap on the equipment matches whichever configuration you land on before ordering.
14) What is the difference between the Bryant 7526 flanged outlet and a decorator-style single receptacle like the Eaton 6450W?
The Bryant 7526 is a flanged locking outlet: it mounts to a surface, enclosure, or panel as a fixed connection point rather than in a wall box, and it accepts only NEMA L1-15R locking plugs. The Eaton 6450W is a heavy-duty industrial specification grade decorator single receptacle that takes #14-10 AWG conductors and installs as a conventional in-wall device behind a decorator plate. Use the 7526 where equipment or a generator needs a permanent locking tie-in, and the 6450W where you are finishing a standard wall opening.
15) Is there an option that ships the mating plug along with the receptacle instead of just the Bryant 7526 outlet?
The Bryant 7526 is sold as the flanged L1-15R outlet on its own, so the mating locking plug is a separate line. If you would rather buy the connection as a matched pair, the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set is supplied as a 3-pole plug and receptacle together. That is a different device family from an L1-15R twist-lock, so it is a fit only when the equipment cord can be terminated to the ECS plug.
