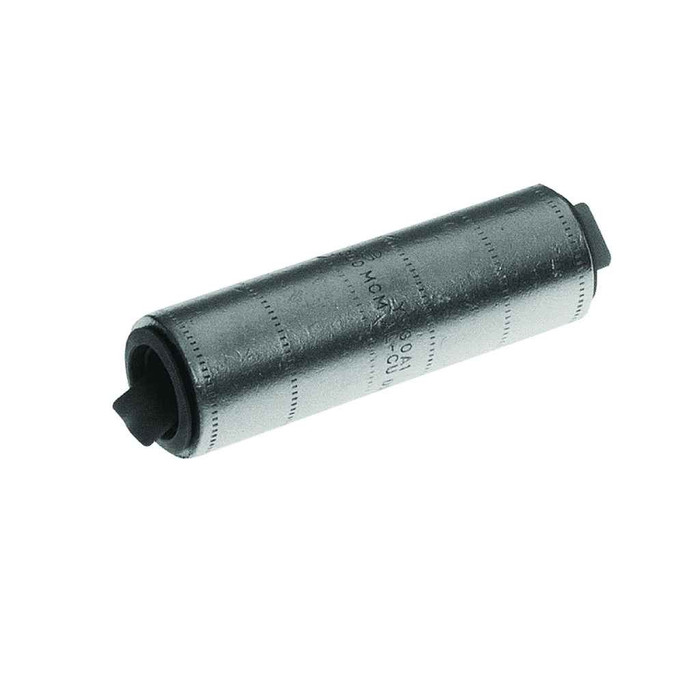

Burndy Aluminum Compression Splice, Electro-Tin Plated

Burndy Aluminum Compression Splice, Electro-Tin Plated

(No reviews yet) Write a Review

Model: YS6CA1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy Aluminum Compression Splice, Electro-Tin Plated

The Burndy HYLINK™ Compression Splice is a professional-grade cable splice built for aluminum-to-aluminum, aluminum-to-copper, and copper-to-copper conductor combinations. Sized for 250 KCMIL/4/0 AWG stranded conductors, this high-conductivity wrought aluminum splice carries a 35 kV maximum / 600V minimum voltage rating and a 194°F temperature rating, and is UL Listed to UL468A-468B for demanding utility, industrial, and commercial power distribution work.

Key Features

  • Conductor Compatibility: Accommodates 250 KCMIL/4/0 AWG aluminum and copper stranded conductors for versatile splicing applications.
  • Durable Construction: High-conductivity wrought aluminum body delivers low resistance, excellent ductility, and strong crimp-forming properties.
  • Electro-Tin Plated Finish: Provides durable, long-lasting corrosion resistance for extended connection life.
  • Voltage Rating: Engineered for 35 kV maximum / 600V minimum service in high-voltage distribution and utility applications.
  • Temperature Rating: Rated to 194°F for reliable performance under demanding electrical conditions.
  • Internally Bevelled Barrel: Chamfered, long-barrel design with a prefilled PENETROX oxide inhibitor and solid center stop for easy cable entry and proper conductor seating.
  • Color-Coded End Caps: Red and white color coding simplifies wire-size identification and keeps the splice free of contamination prior to installation.
  • Die Index Marking: Clear die index 324/298 markings guide correct tooling and crimp placement.

Certifications & Compliance

  • UL Listed
  • Meets UL468A-468B Standards
  • RoHS CM Compliant

Technical Specifications

  • Certification Csa Approved: No
  • Certification Etl: No
  • Rating Minimum Voltage: 600
  • Voltage Maximum: 35000
  • Plated: Y
  • Certification Culus: No
  • Ul Listed: Yes
  • Item Type: 3A
  • Standards Rohs Compliance Status: CM
  • Temperature Rating: 194
  • Plating Type: Tin - Electro Plated
  • Certification Ul Recognized: No
  • Trade Name: HYLINK™
  • Product Type: Cable Splice
  • Product Group: Wire Connectors

Typical Applications

  • Utility Power Distribution Systems
  • Industrial Electrical Installations with Mixed Conductor Materials
  • Commercial Power Distribution for 250 KCMIL Applications
  • Substation and Transformer Connections
  • Underground and Overhead Distribution Splicing
  • Motor Control Center Wiring

Why Burndy?

Burndy engineers this HYLINK compression splice from high-conductivity wrought aluminum with an electro-tin plated finish and a prefilled PENETROX oxide inhibitor, combining electrical performance with long-term corrosion resistance. UL Listed and built to UL468A-468B standards, it delivers the code-compliant, dependable connections that electricians, contractors, and utility professionals rely on for critical electrical infrastructure.

Manufacturer Resources

Spec Sheet

Product Specs

Certification - CSA Approved:
No
Certification - ETL:
No
Rating - Minimum Voltage:
600
Rating - KVA:
35 kV
Voltage - Maximum:
35000
Connector Type:
Splice
Industry Standard(s):
UL468A-468B
Feature - Barrel Type:
Long
Plated:
Y
Department:
Electrical
Standards - Industry Standards Met:
UL468A-468B
Feature - Barrel Style:
Chamfered
Sub Brand:
HYLINK
Certification - cULus:
No
UL Listed:
Yes
Item Type:
3A
Standards - RoHS Compliance Status:
CM
Temperature Rating:
194
Plating Type:
Tin - Electro Plated
Certification - UL Recognized:
No
Trade Name:
HYLINK™
Product Type:
Compression Splice
Product Group:
Wire Connectors & Terminals
Product Finish:
Electro-Tin Plated
Voltage Rating:
35kV
Listing:
UL Listed
Standards:
UL468A-468B
Product Material:
Aluminum
Wire Size:
4/0 AWG - 250 KCMIL
Product Subgroup:
Splice Kits

Burndy YS6CA1 – Frequently Asked Questions

1) Can I splice aluminum to copper with a Burndy HYLINK compression splice?
Yes. The HYLINK splice is rated for aluminum-to-aluminum, aluminum-to-copper, and copper-to-copper conductor combinations, which is what makes it useful on retrofit work where an older aluminum feeder meets new copper. The barrel is wrought aluminum with an electro-tin plated finish and comes prefilled with PENETROX oxide inhibitor, so the dissimilar-metal joint is protected without you brushing and buttering the conductor on site.
2) Is the Burndy HYLINK splice rated for medium-voltage 15kV or 35kV cable?
Rated to 35 kV maximum, with a 600V minimum. That covers 5kV, 15kV, 25kV and 35kV class distribution cable as well as 600V building feeders, which is why it shows up in substation, transformer and underground distribution splicing. Temperature rating is 194 degrees F.
3) Is the Burndy HYLINK compression splice UL Listed for an inspected job?
UL Listed, and built to the UL468A-468B standards for wire connectors. It is also RoHS CM compliant. Worth knowing for a submittal package: this is a UL Listed part, not UL Recognized, and it does not carry CSA, ETL, or cULus marks, so if your spec calls specifically for a CSA-approved connector this is not the one.
4) Do I need to apply oxide inhibitor before crimping a Burndy HYLINK aluminum splice?
No, the barrel arrives prefilled with PENETROX oxide inhibitor and capped at both ends. The end caps are color coded red and white for wire-size identification and they keep dirt and moisture out of the compound until you strip them off at the pole or in the manhole. Pull the caps, insert the conductor to the solid center stop, and crimp.
5) Should I use a compression splice or a mechanical set-screw connector for a direct-buried aluminum feeder?
A compression splice like the Burndy HYLINK is the one to use where the joint has to be permanent, submersible, or medium voltage. It is crimped to a fixed die index so the connection cannot loosen or back off the way a set screw can under thermal cycling, and the tin plating plus factory PENETROX fill handles the corrosion exposure of a buried or manhole location. A mechanical connector is the better choice when you need to be able to open the joint again for testing or future taps. Note the HYLINK is a straight splice, conductor to conductor, not a tap or a tee.
6) Will the Burndy HYLINK splice hold up in a wet manhole or coastal outdoor location?
The wrought aluminum body is electro-tin plated for corrosion resistance, and the prefilled oxide inhibitor seals the conductor interface against the moisture that drives aluminum oxidation. That combination is what makes it standard on underground and overhead distribution splicing and on substation and transformer connections. Service temperature is rated to 194 degrees F.
7) Is Burndy HYLINK the same thing as a Burndy YS splice?
Same part. HYLINK is Burndy's trade name for the compression splice line, and the catalog numbers are the YS series, YS6CA1 through YS29A1 depending on conductor size. If a drawing or a bill of material calls out a HYLINK splice, order by the YS number that matches the conductor.
