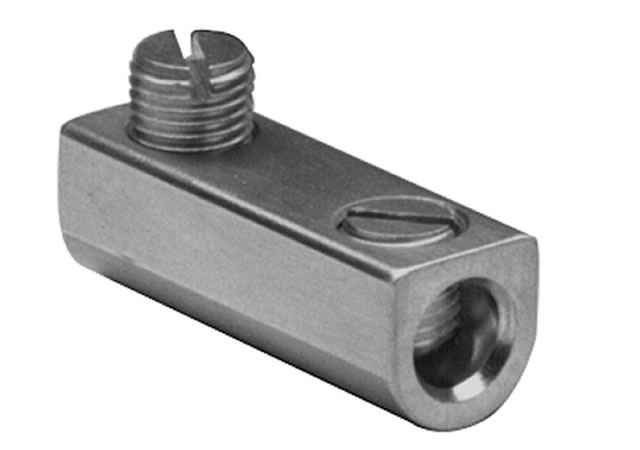

Burndy Aluminum Mechanical Splice Connector, Tin-Plated
The Burndy Aluminum Mechanical Splice Connector is a dual-screw mechanical splice engineered for aluminum and copper conductors in both solid and stranded configurations. Tin plating provides corrosion resistance for long-term connection integrity, while the dual-screw design delivers a rated installation torque for secure, reliable mechanical connections. This UL Listed, CSA certified splice meets UL467 industry standards and is offered in straight splice and reducer configurations for flexible conductor-joining applications on the job.
Key Features
- Conductor Compatibility: Accommodates aluminum and copper conductors in solid and stranded configurations for versatile application compatibility.
- Dual-Screw Design: Two screws tightened to the rated installation torque ensure secure mechanical connections and reliable electrical continuity.
- Tin Plating: Corrosion-resistant tin plating extends service life and maintains connection integrity in various environmental conditions.
- Splice/Reducer Function: Available as a straight splice and as a reducer connector for flexible conductor joining applications.
- Compact Design: Space-efficient body with a hex-drive screw profile for installation in electrical enclosures and junction boxes.
- Al/Cu Rated: Compatible with both aluminum and copper conductors for versatile installation options across electrical systems.
Certifications & Compliance
- UL Listed
- Meets UL467 Industry Standards
- CSA Certified
Technical Specifications
- Csa Certified: Y
- Type Of Plating: Tin
- Culus: N
- Ul Listed: Y
- Plated Yes Or No: Y
- Ul Recognized: N
- Rated For Direct Burial: N
- Product Group: Wire Connectors
Typical Applications
- Commercial Electrical Systems
- Industrial Power Distribution
- Residential Service Panels
- Electrical Maintenance & Repair
- Conductor Splicing Projects
- Panel Upgrades & Modifications
Why Burndy?
Burndy mechanical cable splices provide dependable electrical connections backed by UL Listed certification and CSA approval. The tin-plated, dual-screw construction and precision manufacturing to UL467 standards ensure long-term reliability in professional electrical installations, making this splice connector an essential component for electrical contractors and maintenance professionals working with aluminum and copper conductors.
Variant Specifications
| Configuration | Model | SKU | MPN |
|---|---|---|---|
| AMS0/AMS2/AMS40/AMS250 | Standard | AMS-4/0 | AMS-4/0 |
| AMS500 | AMS500 | AMS-500 | AMS500 |
Manufacturer Resources
Product Specs
- Industry Standards:
- UL467
- Connector Type:
- Splice,Reducer
- Department:
- Electrical
- Product Group:
- Wire Connectors & Terminals
- Product Type:
- Mechanical Splice Connector
- Product Material:
- Aluminum
- Product Subgroup:
- Splice Kits
Burndy AMS-4/0 – Frequently Asked Questions
1) Can I use a Burndy AMS mechanical splice on aluminum conductors, or is it copper only?
Both. The Burndy AMS splice is an Al/Cu rated mechanical connector, so it takes aluminum or copper conductors, solid or stranded. That also means it will join aluminum to copper in the same splice, which is the usual reason electricians reach for a dual-rated mechanical connector instead of a compression barrel.
2) What is the difference between the AMS-4/0 and the AMS-500 Burndy splice?
They are two different conductor-range bodies in the same AMS family. The AMS-4/0 covers the smaller end of the range (the AMS0/AMS2/AMS40/AMS250 grouping), and the AMS-500 is the larger body for heavier cable. Pick by the size of the conductors you are joining, not by feature set: construction, plating, and listing are the same on both.
3) Can this Burndy connector splice two different wire sizes together, like a 250 down to a smaller conductor?
Yes, the AMS is offered as a reducer as well as a straight splice. The reducer version has two different conductor ports so you can land unequal sizes in one connector, which is what you need on a panel upgrade where the new feeder is larger than the existing run. The straight splice takes matching sizes in each end.
4) Can I direct bury a Burndy AMS splice or put it in a ground rod pit?
No. The AMS is not rated for direct burial. For an underground or grounding-electrode connection in earth or concrete, you need a connector specifically listed for direct burial. Use the AMS inside enclosures, junction boxes, and panels instead.
5) Do I need a special tool or crimper to install this splice?
No crimp tool needed. The AMS is a mechanical connector with two screws and a hex-drive screw profile, so a hex key or hex driver installs it. Tighten both screws to the connector's rated installation torque. That makes it a practical choice for field repairs and retrofits where you cannot get a hydraulic crimper into the box.
6) Is a mechanical splice like the Burndy AMS the right choice, or should I be using a compression connector?
A mechanical splice like the AMS is the right call when you need the joint to be reinstallable, when you are working in a live-adjacent panel with no room for a crimp head, or when you are joining aluminum to copper and want to be able to re-torque it later. Compression makes more sense on permanent, high-cycle feeder work where the connection will never be opened. For maintenance, panel modifications, and repair splicing, the two-screw mechanical body is faster and needs no press.
7) Will tin plating hold up in a damp mechanical room or outdoor enclosure?
The AMS body is aluminum with tin plating for corrosion resistance, which is the standard finish for holding a connection in humid or corrosive interior and enclosed outdoor environments. What it is not approved for is contact with earth, since the connector carries no direct burial rating.
